ELECTRICAL SYSTEM 144
B00643-10

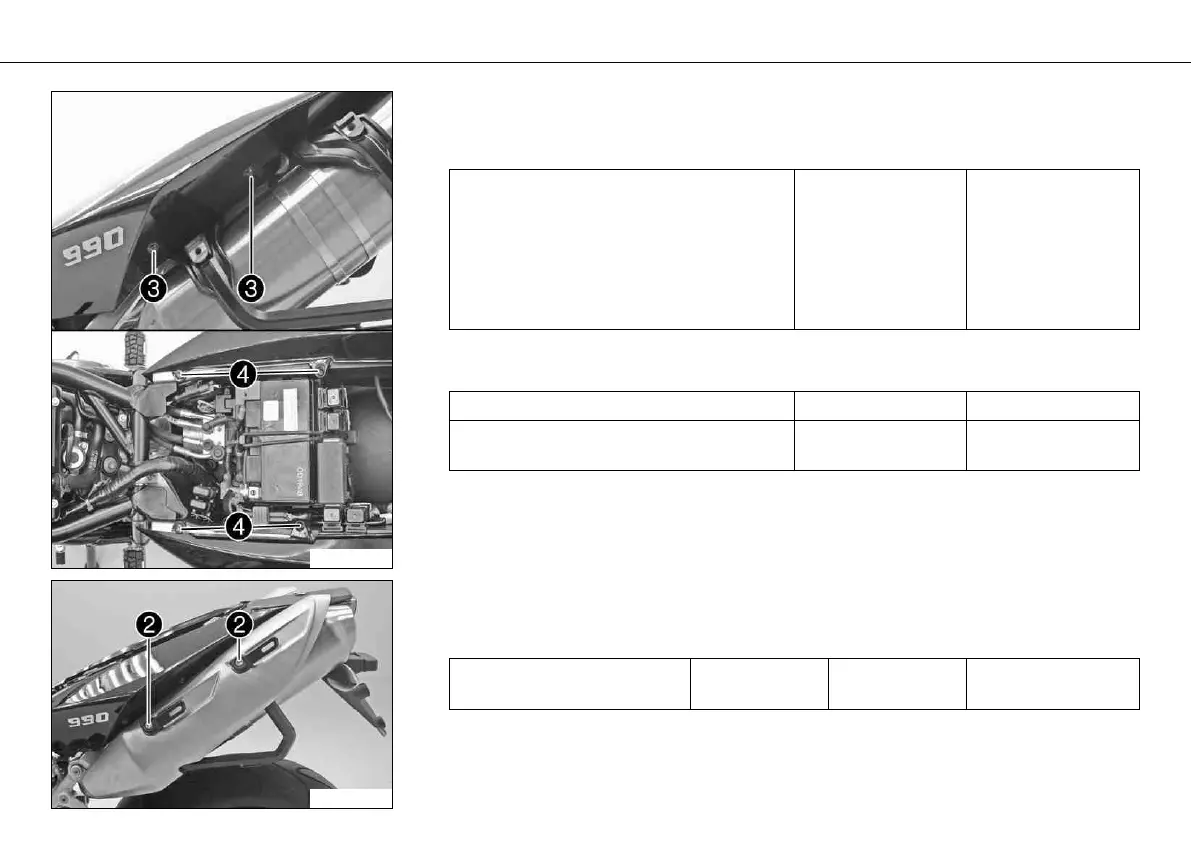

– Position the rear side parts.
– Mount and tighten screws on the left and right rear side parts.
Guideline
Screw, rear side part EJOT Altracs
50x16
Initial screw con-
nection
3.3 Nm
(2.43 lbf ft)
Subsequent screw
connection
2 Nm (1.5 lbf ft)
– Mount and tighten screws .
Guideline
Remaining chassis screws M5 5 Nm (3.7 lbf ft)
Remaining frame bolts EJOT PT K50x12
T20
1.2 Nm
(0.89 lbf ft)
B00642-10
– Position the heat protectors.
– Mount and tighten screws on the left and right heat protectors.
Guideline
Screw, bag carrier M8 15 Nm
(11.1 lbf ft)
Loctite
®
243™
