SERVICE WORK ON THE ENGINE 167

700611-10

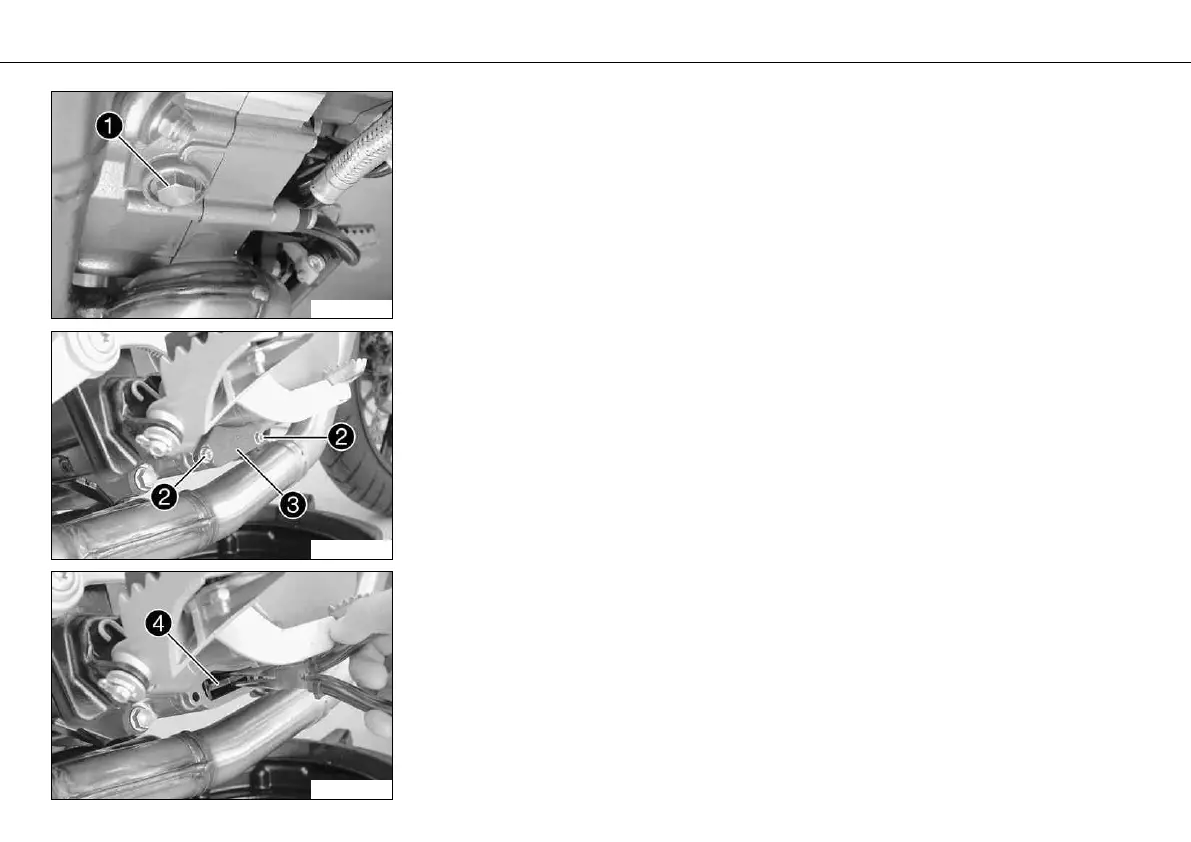

– Place a suitable container under the engine.

– Remove the oil drain plug  with the magnet and seal ring.

– Fully drain the engine oil out of the engine.

700610-10

– Remove screws  and cover .

700612-10

– Pull oil screen  out of the engine case with pliers.
