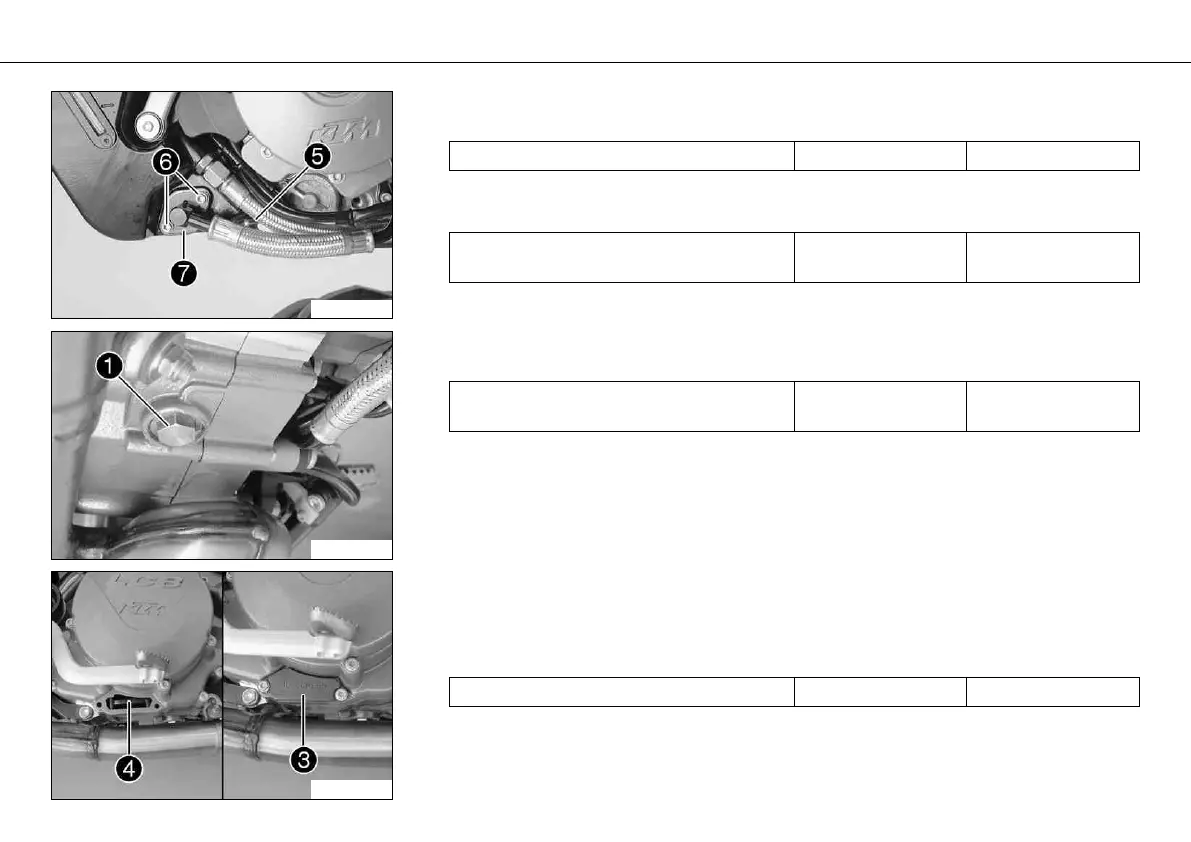

SERVICE WORK ON THE ENGINE 170
700613-10
– Position oil line . Mount and tighten screws .
Guideline
Remaining engine screws M6 10 Nm (7.4 lbf ft)
– Mount oil drain plug with the magnet and new seal and tighten.
Guideline
Oil drain plug with magnet M12x1.5 25 Nm
(18.4 lbf ft)
700611-10
– Mount oil drain plug with the magnet and new seal ring and tighten.
Guideline
Oil drain plug with magnet M22x1.5 35 Nm
(25.8 lbf ft)
700616-10
– Slide oil sieve into the engine case with the TOP marking facing up.
– Check the form ring in cover for damage and correct seating.
– Position the cover. Mount and tighten the screws.
Guideline
Screw, clutch cover M6 10 Nm (7.4 lbf ft)
