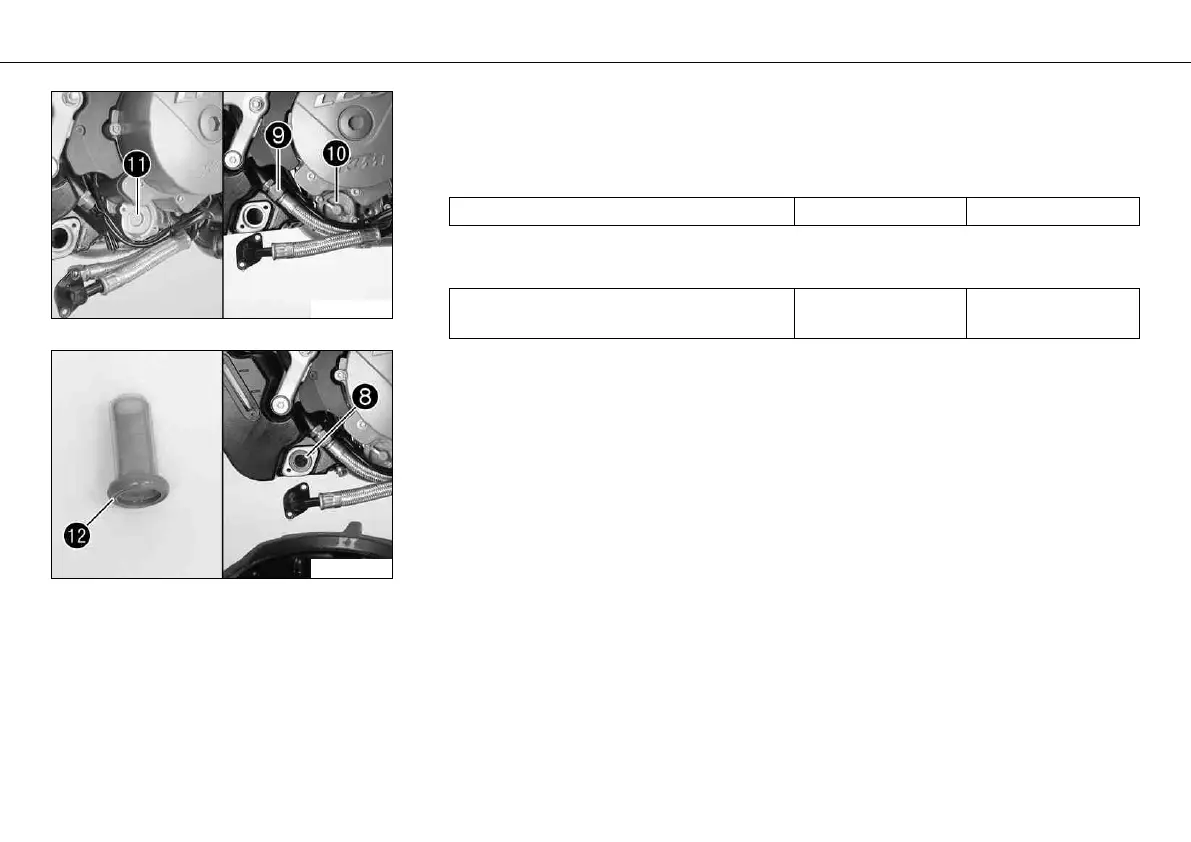

SERVICE WORK ON THE ENGINE 169

700618-10

– Insert oil filter .

– Lubricate the O-ring of the oil filter cover.

– Install oil filter cover . Mount and tighten the screws.

Guideline

Remaining engine screws M5 6 Nm (4.4 lbf ft)

– Position the oil line. Mount and tighten screw cap .

Guideline

Nut, oil line M16x1.5 25 Nm

(18.4 lbf ft)

700614-10

– Check seal ring  of the oil sieve for damage and correct seating.

– Insert oil sieve  into the oil tank.
