SERVICE WORK ON THE CHASSIS 96
B00653-01

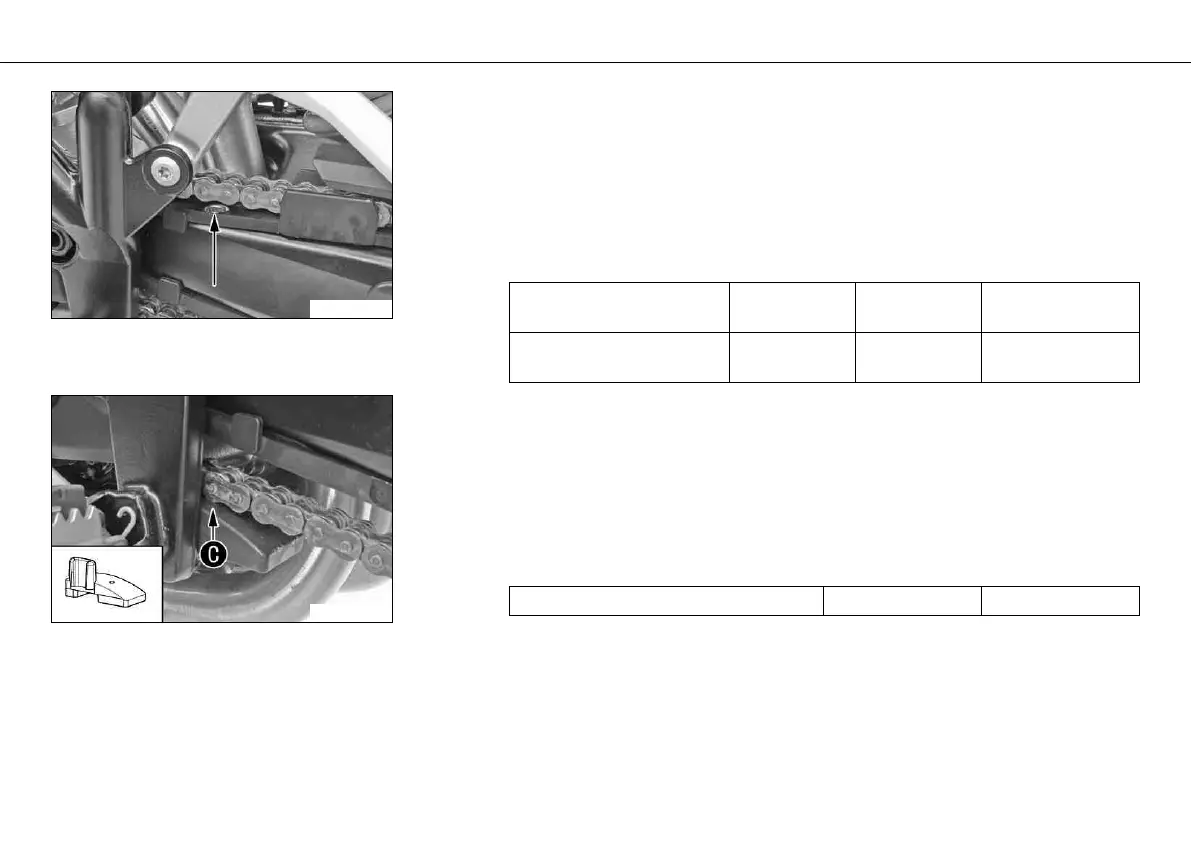

– Check the chain sliding guard for wear.
» If there is no gap between the chain and the upper edge of the screw:
–
Change the chain sliding guard. x
– Check the chain sliding guard for tightness.
» If the chain sliding guard is loose:
– Tighten the chain sliding guard.
Guideline
Screw, chain sliding
guard
M5 5 Nm
(3.7 lbf ft)
–
Screw, chain sliding
guard
M6 6 Nm
(4.4 lbf ft)
Loctite
®
243™
B00654-10
– Check the chain sliding piece for wear.
» If the drill hole becomes visible on the chain sliding piece in area :
–
Change the chain sliding piece. x
– Check the chain sliding piece for tightness.
» If the chain sliding piece is loose:
– Tighten the chain sliding piece.
Guideline
Screw, chain sliding piece EJOT PT K60x20 2 Nm (1.5 lbf ft)
