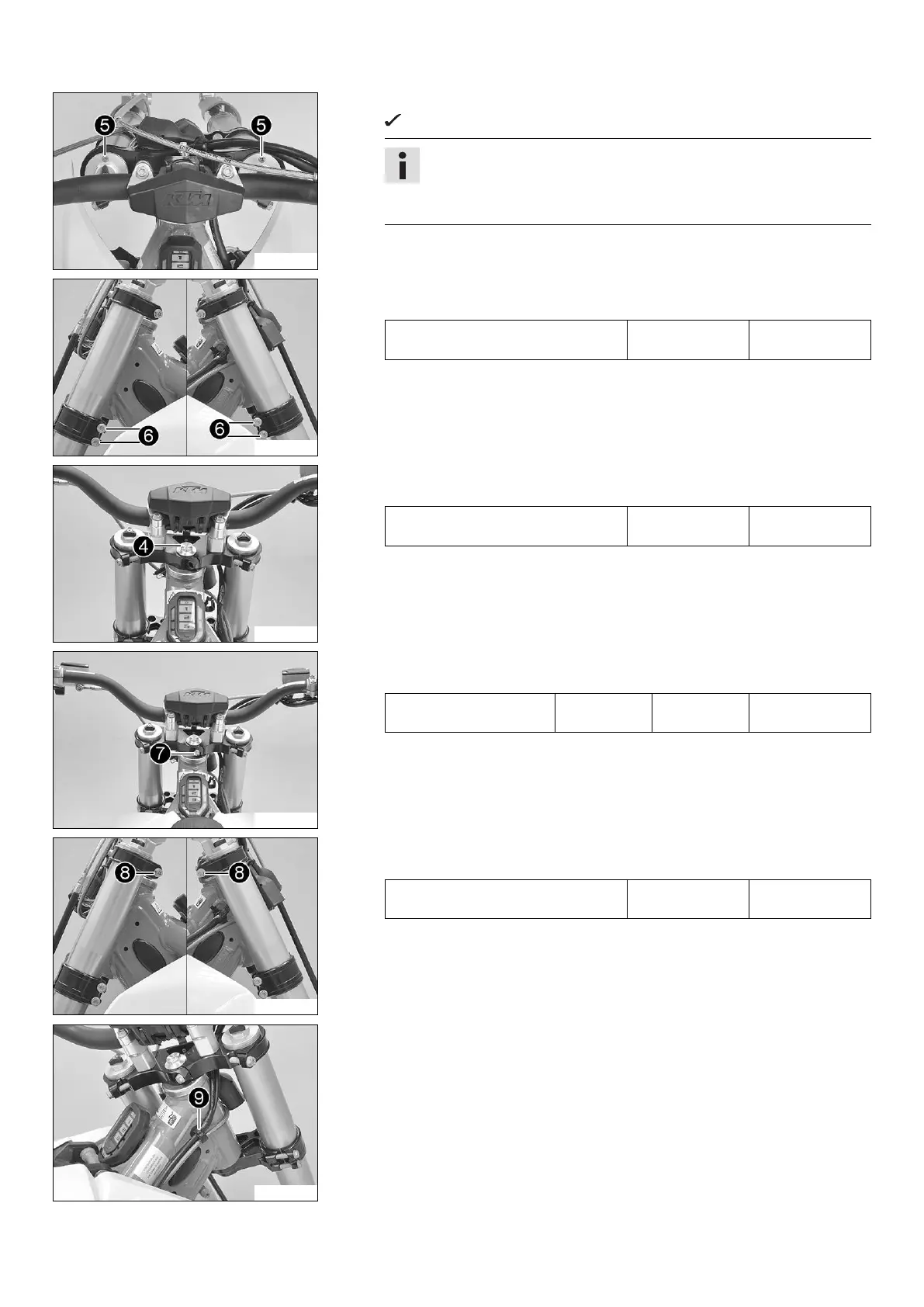

12 SERVICE WORK ON THE CHASSIS 56
C00696-10
– Position the fork legs.
Bleeder screws
face forward.
Info
The lowest milled groove in the fork leg must be flush with the top edge
of the upper triple clamp.
The support for the brake caliper is attached to the left fork leg.
C00716-10
–
Tighten screws
.
Guideline
Screw, bottom triple clamp M8 18 Nm
(13.3 lbf ft)
C00717-10
–
Tighten screw
.
Guideline
Screw, top steering head M20x1.5 12 Nm
(8.9 lbf ft)
C00718-10
–
Mount and tighten screw
.
Guideline
Screw, top steering stem M8 17 Nm
(12.5 lbf ft)
Loctite
®
243™
C00716-11
–
Tighten screws
.
Guideline
Screw, top triple clamp M8 22 Nm
(16.2 lbf ft)
C00719-10
–
Attach the brake line and wiring harness. Close holder
.
