WORK 3
9

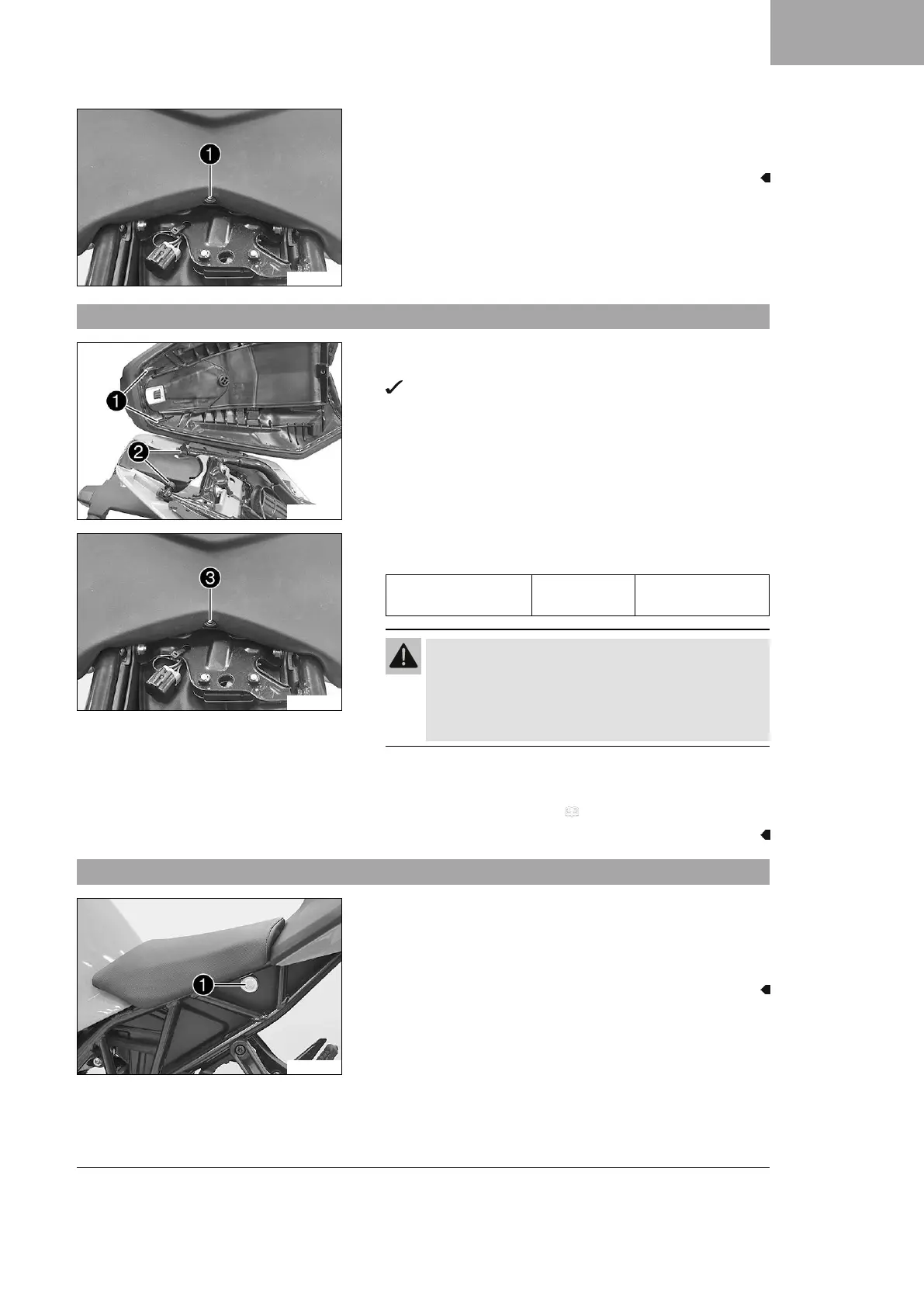

V00639-10
Main work
–
Remove screw
1
with washer.
– Lift and take off the passenger seat.
3.6 Mounting the passenger seat
V00640-10
Main work
– Position passenger seat.
Both hooks
1
engage in the holders
2
.
– Lower the front of the passenger seat and push back.
V00639-11
–
Mount and tighten screw
3
with the washer.
Guideline
Screw, passenger
seat
M6 7 Nm (5.2 lbf ft)
Warning
Danger of accidents The seat can come loose from the
anchoring if it is not mounted correctly.
– After assembly, check whether the seat is correctly
locked and cannot be pulled up.
– Check that the passenger seat is mounted correctly.
Finishing work
– Mount the front rider's seat. ( p. 10)
3.7 Removing the front rider's seat
V00633-10
–
Insert the ignition key in seat lock
1
and turn it clockwise.
– Raise the rear of the front rider's seat, pull it toward the rear,
and remove it upward.
– Remove the ignition key from the seat lock.
