KTM RC 125 Setup Instructions

WORK 3
7

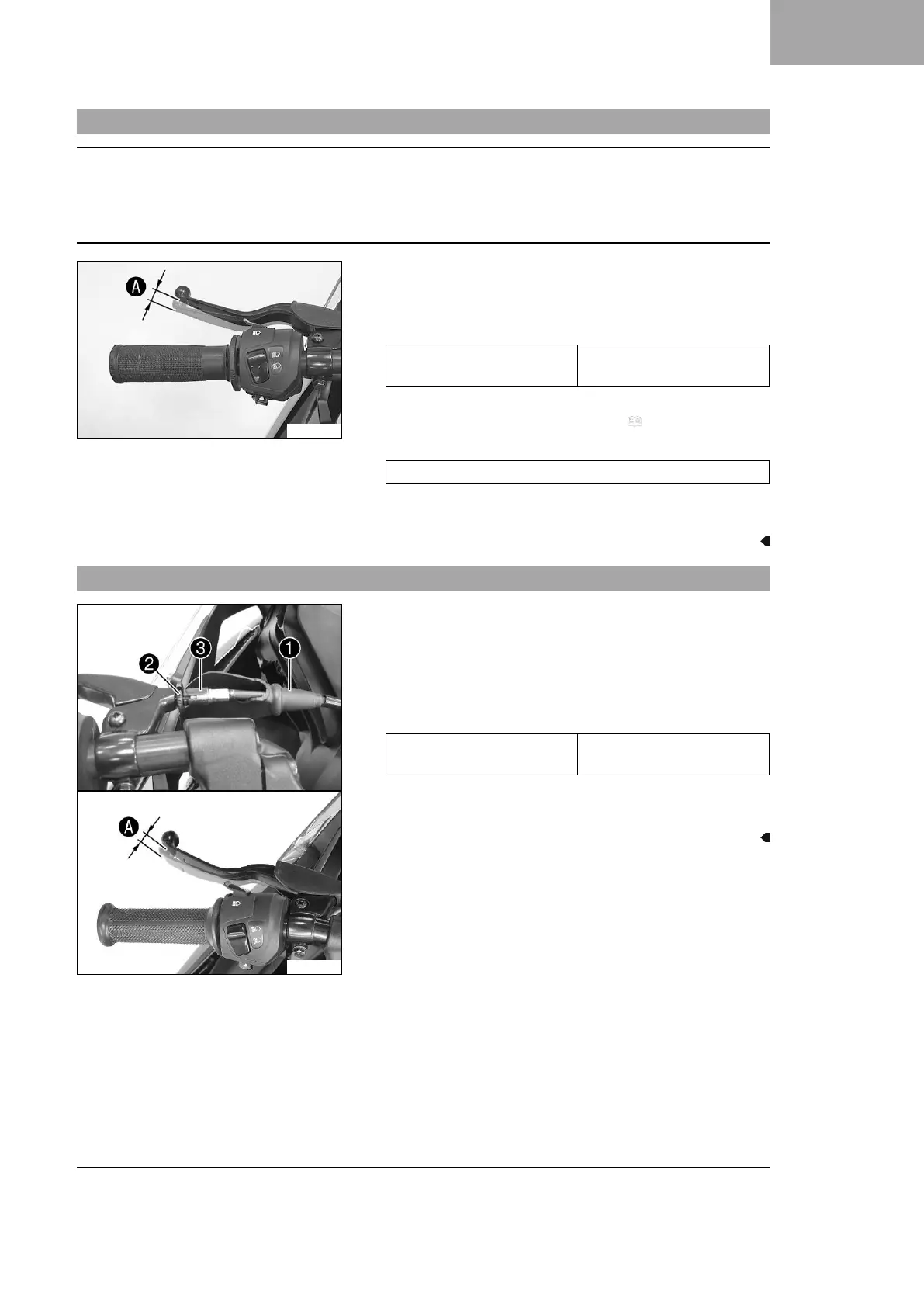

3.1 Checking the clutch lever play
Note
Clutch damage If there is no free travel by the clutch lever, the clutch will begin to slip.
– Check the free travel of the clutch lever each time before using the motorcycle.
– Adjust the free travel of the clutch lever when necessary in accordance with the specification.
V00625-11
– Check the clutch lever for smooth operation.
– Move the handlebar to the straight-ahead position.
– Pull the clutch lever until resistance is perceptible, and deter-
mine the play in the clutch lever
A
.
Clutch lever play
A
1 … 3 mm (0.04 …
0.12 in)
» If the clutch lever play does not meet the specified value:
– Adjust play in the clutch lever. ( p. 7)
– Move the handlebar to and fro over the entire steering range.
The clutch lever play must not change.
» If the clutch lever play changes:
– Check the routing of the clutch cable.
3.2 Adjusting play in the clutch lever
V00672-10
– Move the handlebar to the straight-ahead position.
–
Push back sleeve
1
.
–
Loosen lock nut
2
.
–
Adjust the play in the clutch level
A
by turning adjusting
screw
3
.
Guideline
Clutch lever play
A
1 … 3 mm (0.04 …
0.12 in)
–
Tighten lock nut
2
.
–
Position bellows
1
.

KTM RC 125 Specifications

General

Displacement	124.7 cc
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Bore x Stroke	58 mm x 47.2 mm
Engine Type	Liquid-cooled, 1-cylinder, 4-stroke engine
Max Torque	12 Nm @ 8, 000 rpm
Front Suspension	WP upside-down fork
Rear Suspension	WP Monoshock
Front Brake	Single disc, 4-piston caliper
Rear Brake	Single disc, single-piston caliper
Frame	Steel trellis frame
Front Tire	110/70 R17
Rear Tire	150/60-17
