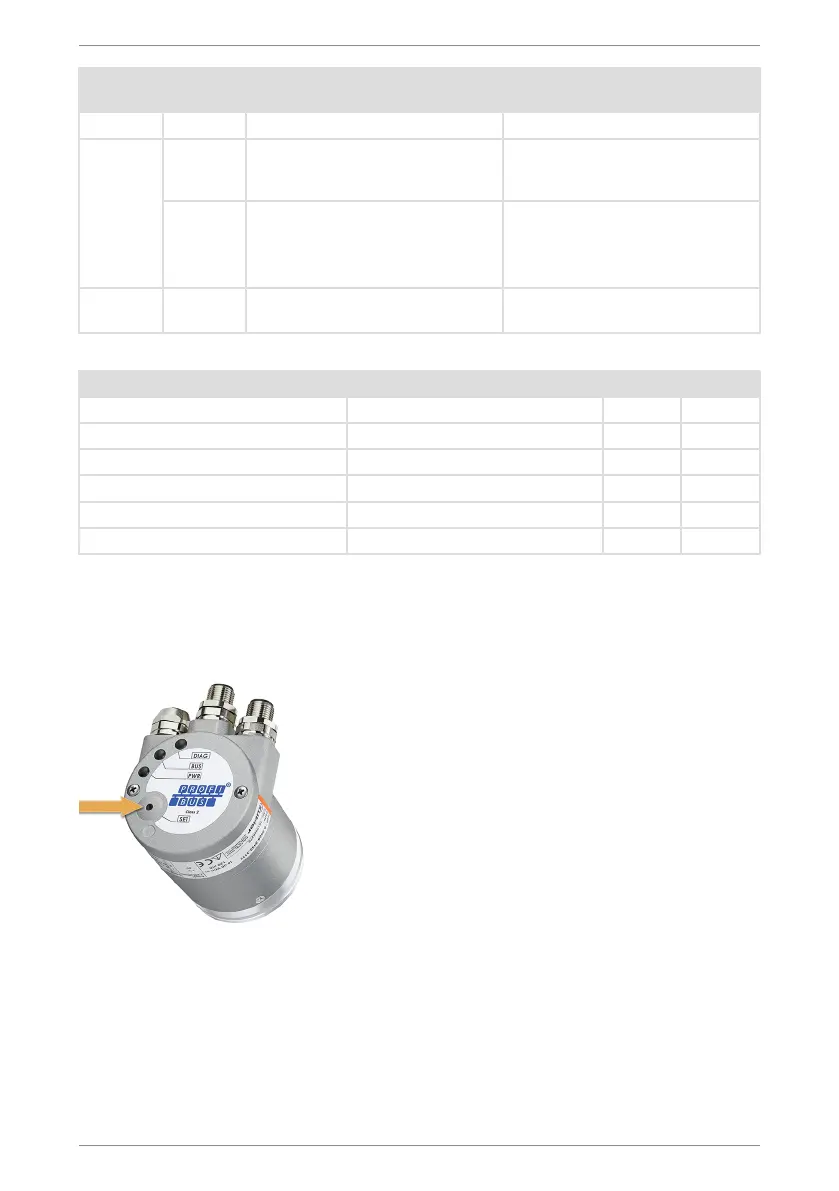

Designa-
tion
Default Switch Product
Baud rate Automatic Not available
Node ad-
dress
63 –
without
SSA
Switch setting 0x3F Sendix 58xx
125 - with
SSA
For devices without removable bus
cover setting 0xFF (node address
via software change Set Slave Ad-
dress (SSA) [}31])
Sendix 70xx
Termina-
tion
Off Switch setting off Sendix 58xx
Name Default Byte Bit
Code sequence 0 = CW 9 0
Class 2 functionality 1 = Class 2 on 9 1
Scaling 1 = Scaling on 9 3
Scaling type 0 = Standard (MUR + TMR) 9 7
Scaling parameter MUR MUR = 8192 (13 bits) 10 … 13 0 … 7
Scaling parameter TMR TMR = 33554432 (25 bits) 14 … 17 0 … 7
Resetting to factory settings
The original standard values (default values at delivery) can be reset by pressing the SET key
on the rear side when switching on (parameters restoration).
