The Offset between the physical zero position of the disk and the electronic zero point resulting
from this can be queried through the extended diagnostic header.
Performing an external preset

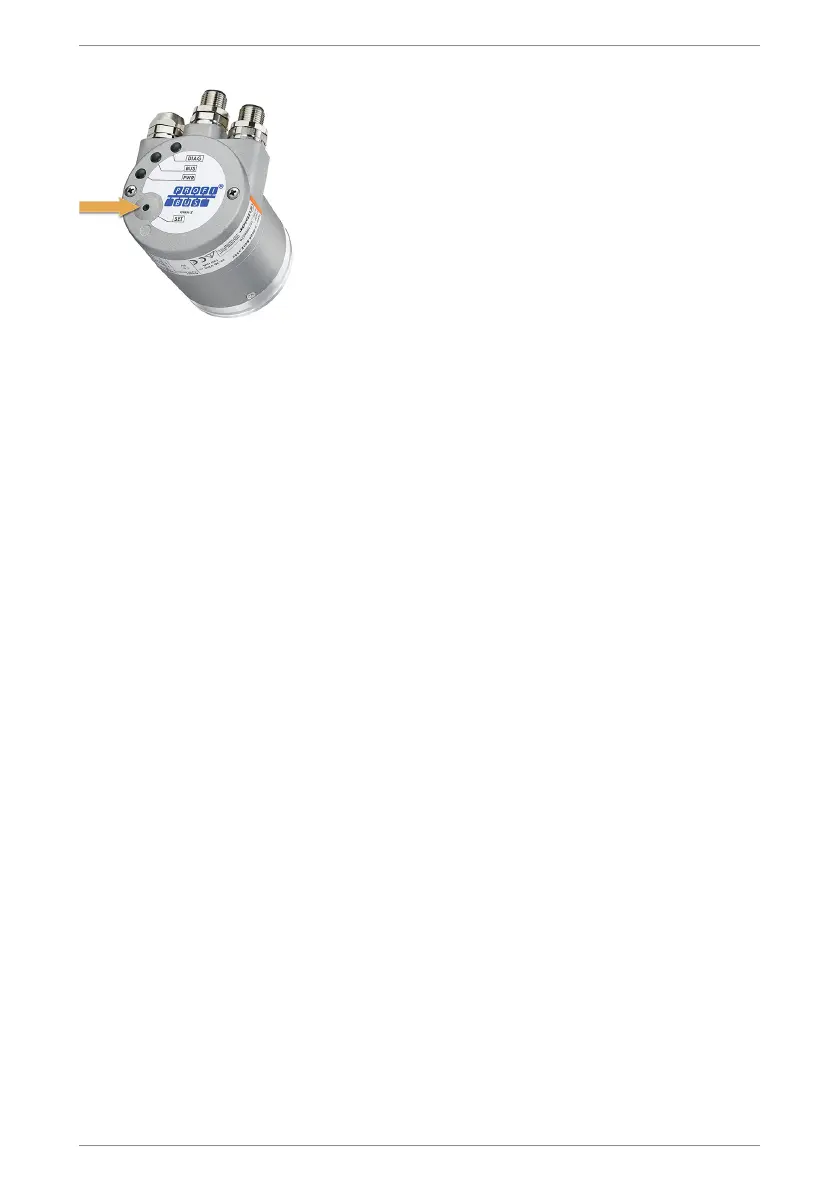

a) Press the SET key on the cover of the device.
ð The device outputs a diag message. The red LED flashes
ð The current position is reset to 0.
Also refer to
2 Set Slave Address (SSA) [}31]
5.3 Protocol Features
5.3.1 Device Profile V1.1
This profile describes a manufacturer-independent and binding specification of the interface for
encoders. The protocol defines which Profibus functions are used and how they are used. This
standard allows for an open and manufacturer-independent bus system.
The device profile is subdivided in two object classes:
