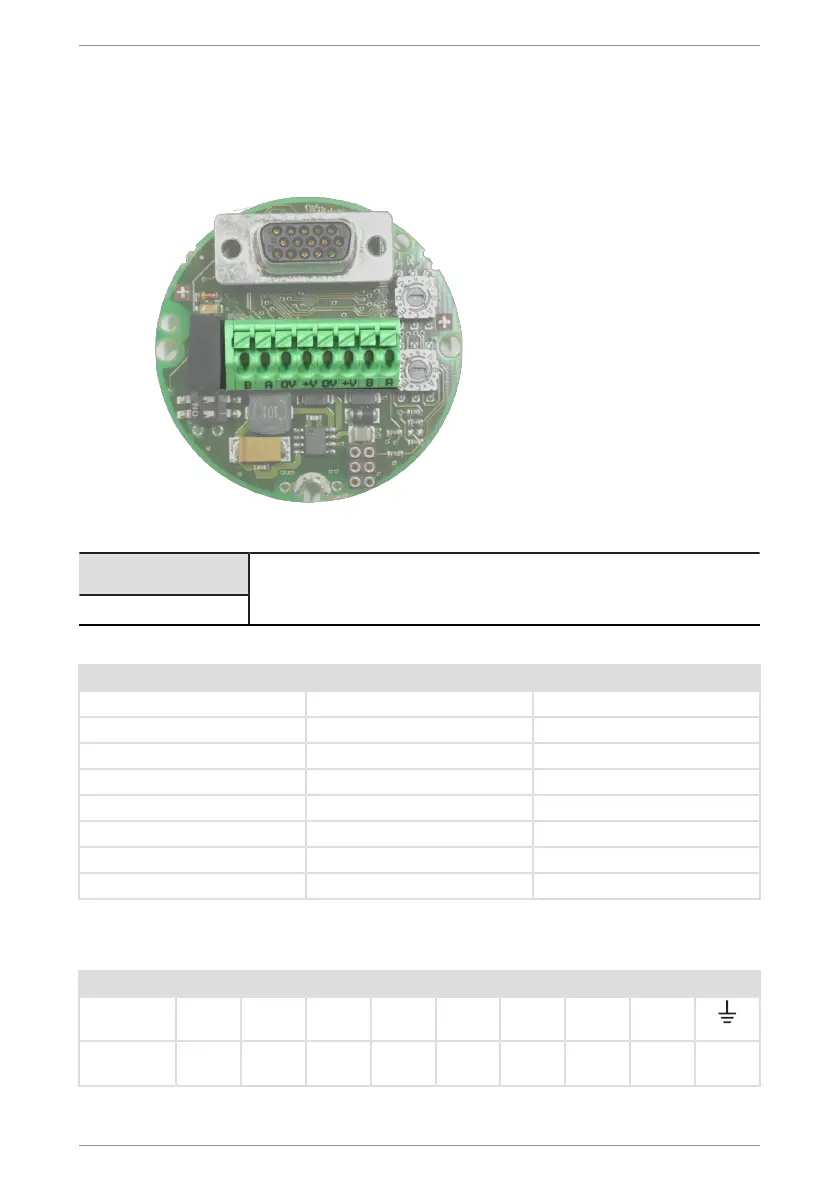

Kübler Group 4 Installation
HB Profibus Interface - R67068.0002 - 01 EN - 13
Supply voltage
a) Guide the encoder supply voltage through the central screwed cable fitting and connect it
to the left terminals (+V) and terminal (0 V).
b) Apply the cable shield on the cable fitting.
NOTICE
Duplicated signals
All signal inputs/outputs are duplicated and connected internally.
Abbreviation Designation Direction
B Profibus Out
A Profibus Out
0V 0 volt supply Out
+V +UB supply Out
0V 0 volt supply In
+V +UB supply In
B Profibus In
A Profibus In
4.1.3 Terminal Assignment 70xx
Cable
Signal 0V +V PB_A
IN
PB_B
IN
BUS_
GND
BUS_
VDC
PB_A
OUT
PB_B
OUT
Wire la-
beling
1 2 4 5 6 7 8 9 Shield
