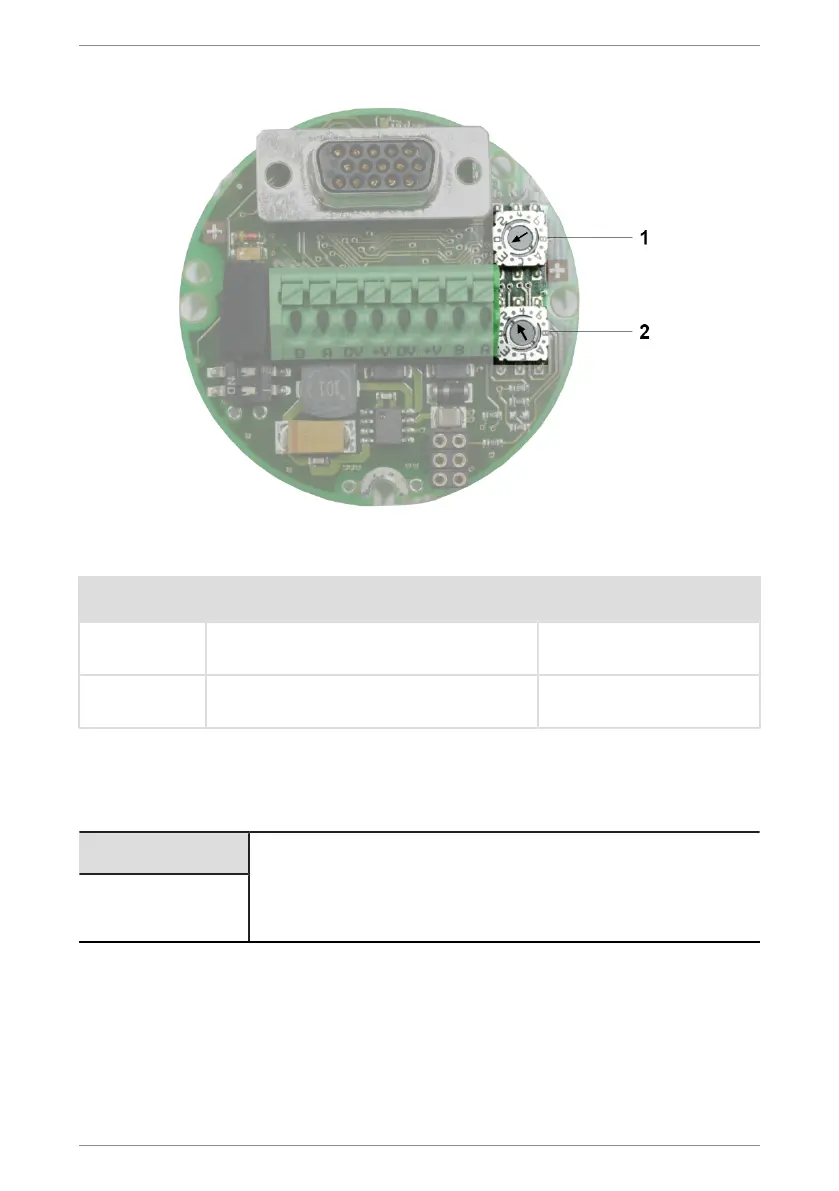

Switch Values range Ex. for address 3F
1 Least significant address rotary switch x1
Values range 1..F *
F
2 Most significant address rotary switch x10
Values range 1..7 *
3
Station address 0 is reserved and shall not be used for any node. The resulting node numbers
are in the range 1...7Dh hexadecimal (1... 125 decimal).
NOTICE
Taking over a new station address
A new node number is only taken into consideration at the following
booting (Reset/Power-on) of the encoder. All other settings in the ob-
jects table remain retained.
Changing the station address via software (SSA):
If the 2 rotary switches are in Position Fh, the node number can also be set with a Class 2
master in the Profibus start sequence via the service access point SAP 55 Set_Slave_Ad-
dress (SSA). Set Slave Address (SSA) [}31]
