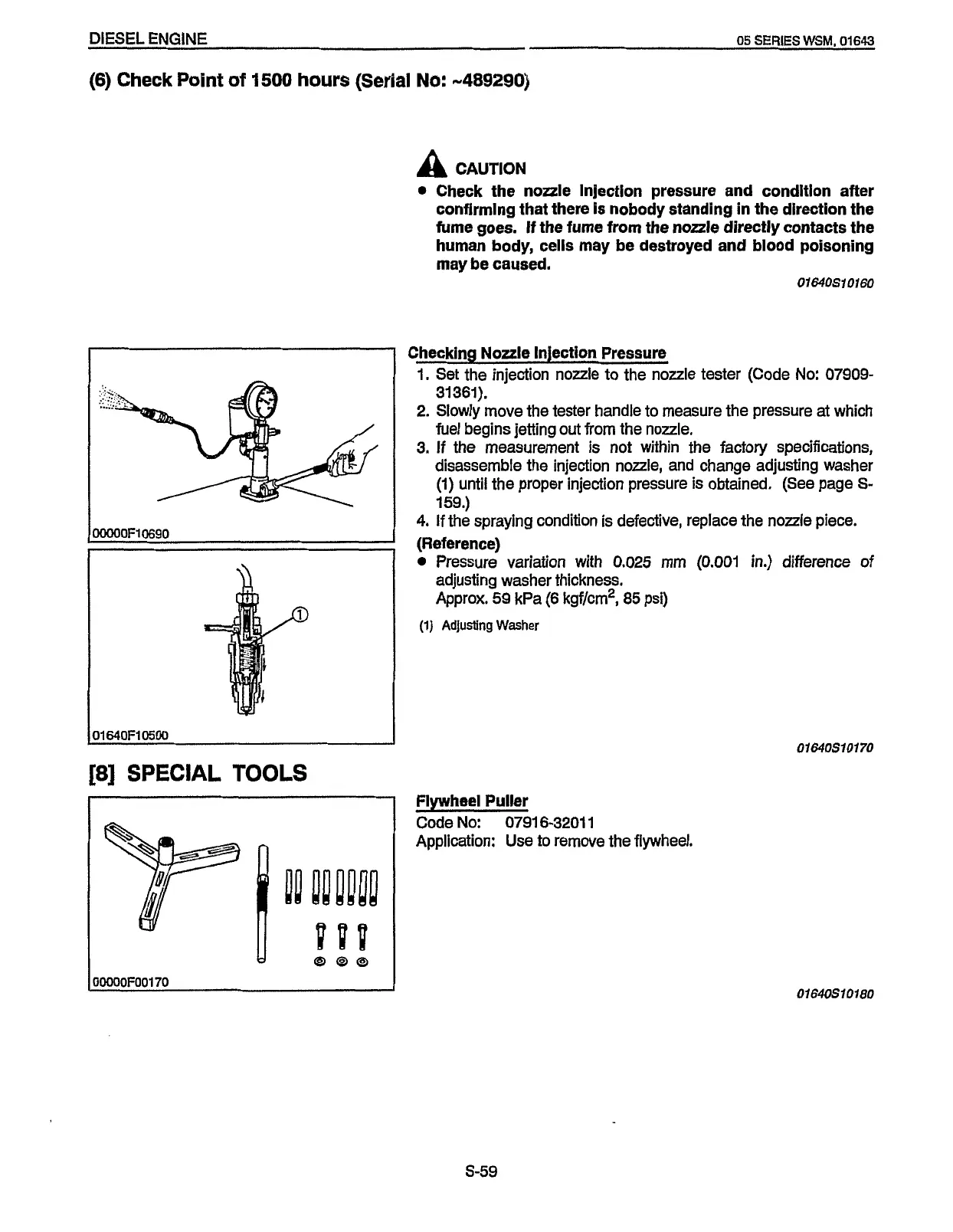

DIESEL ENGINE
05
SERIES
WSM,
01643
(6)
Check
Point
of
1500
hours (Serial
No:
-489290)
A CAUTION
Check the noale inj/ection pressure and condition after
confirming that there is nobody standing in the direction the
fume
goes.
If the fume from the nozzle directly contacts the
human body, cells may be destroyed and blood poisoning
may be caused.
01tMOS10160
~oooO0F10690
101640F10500
[8J
SPECIAL
TOOLS
OOOOOFOOl70
Checking Nozzle Injection Pressure
1.
Set the injection nozzle to the nozzle tester (Code No: 07909-
31361).
2. Slowly move the tester handle to measure the pressure at which
fuel begins jetting out
from
the nozzle.
3.
If
the measurement is not within the factory specifications,
disassemble the injection nozzle, and change adjusting washer
(1) until the proper injection pressure
is
obtained. (See page
S-
159.)
4.
If the spraying condition is defective, replace the nozzle piece.
(Reference)
Pressure variation with
0.025
mm
(0.001
in.)
difference
of
adjusting washer thickness.
Approx. 59 kPa (6 kgf/cm2,
85
psi)
(1)
Adjusting
Washer
01640S10170
Flywheel Puller
Code No: 0791 6-3201
1
Application:
Use
to remove the flywheel.
01640510180
s-59
