DIESEL ENGINE
05
SERIES
WSM,
01640
I
.
I-

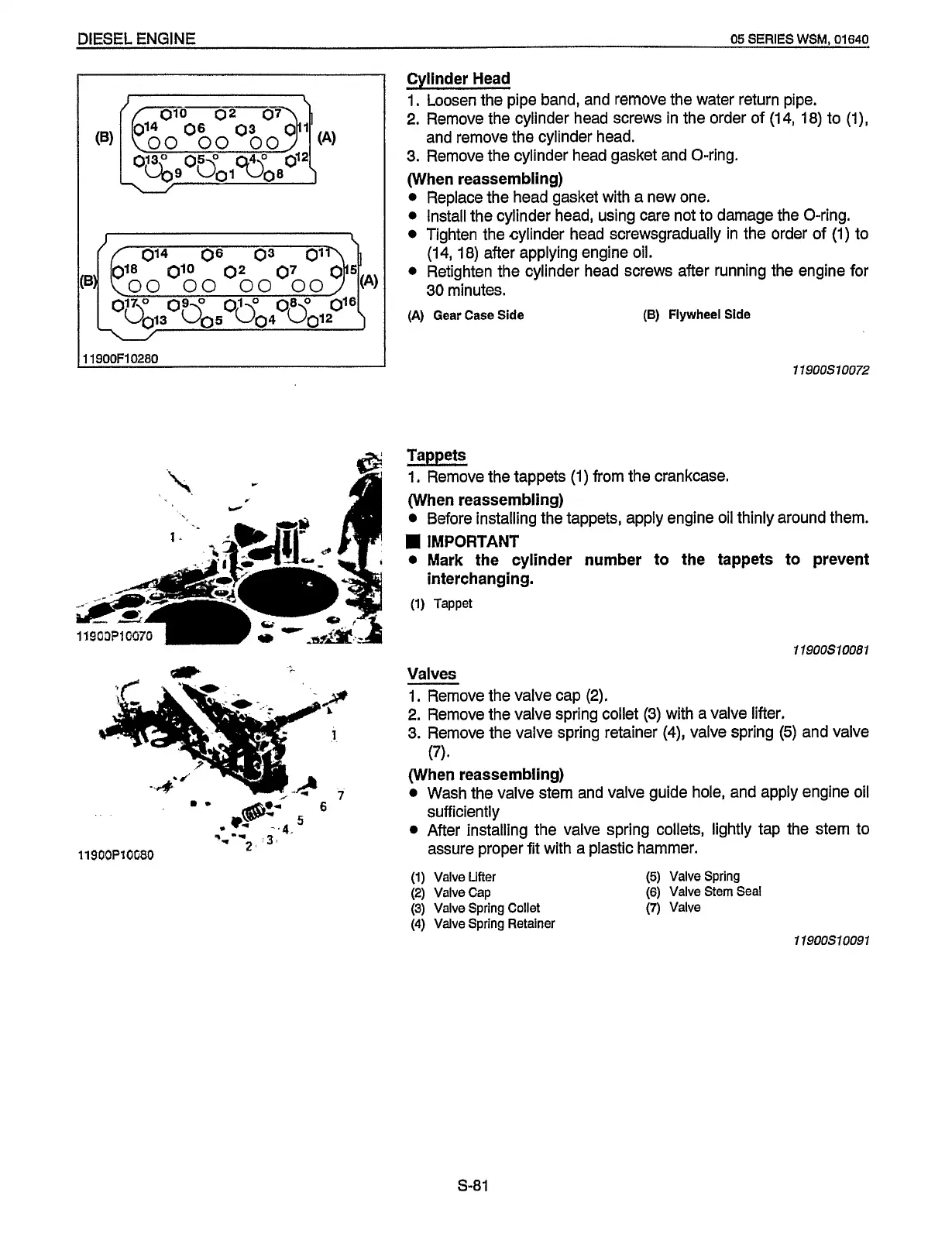

Cylinder Head
1,
Loosen the pipe band, and remove the water return pipe.
2.
Remove the cylinder head screws in the order of
(14,
18)
to
(I),
3.
Remove the cylinder head gasket and O-ring.
(When reassembling)
0
Replace the head gasket with a new one.
0
Install the cylinder head, using care not to damage the O-ring.
Tighten the cylinder head screwsgradually in the order of
(1)
to
(1
4,
18)
after applying engine oil.
0
Retighten the cylinder head screws after running the engine for
30
minutes.
(A)
Gear
Case
Side
and remove the cylinder head.
(B)
Flywheel Side
13900S30072
Tappets
1.
Remove the tappets
(1)
from the crankcase.
(When reassembling)
Before installing the tappets, apply engine oil thinly around them.
H
IMPORTANT
Mark the cylinder number to the tappets to prevent
(1)
Tappet
interchanging.
1
190051
0081
Valves
1.
Remove the valve cap
(2).
2.
Remove the valve spring collet
(3)
with a valve lifter.
3.
Remove the valve spring retainer (4), valve spring
(5)
and valve
(When reassembling)
0
Wash the valve stem and valve guide hole, and apply engine oil
0
After installing the valve spring collets, lightly tap the stem to
(1)
Valve
Lifter
(2)
Valve
Cap
(3)
Valve
Spring
Collet
(4)
Valve
Spring
Retainer
(7)
*
sufficiently
assure proper fit with a plastic hammer.
119OOP70680
(5)
Valve
Spring
(6)
Valve
Stem
Seal
(7)
Valve
11900s10091
S-81
