Kubota 05 Series Repair Manual

DIESEL ENGINE
05 SERIES WSM, 01640
I 11790F10410

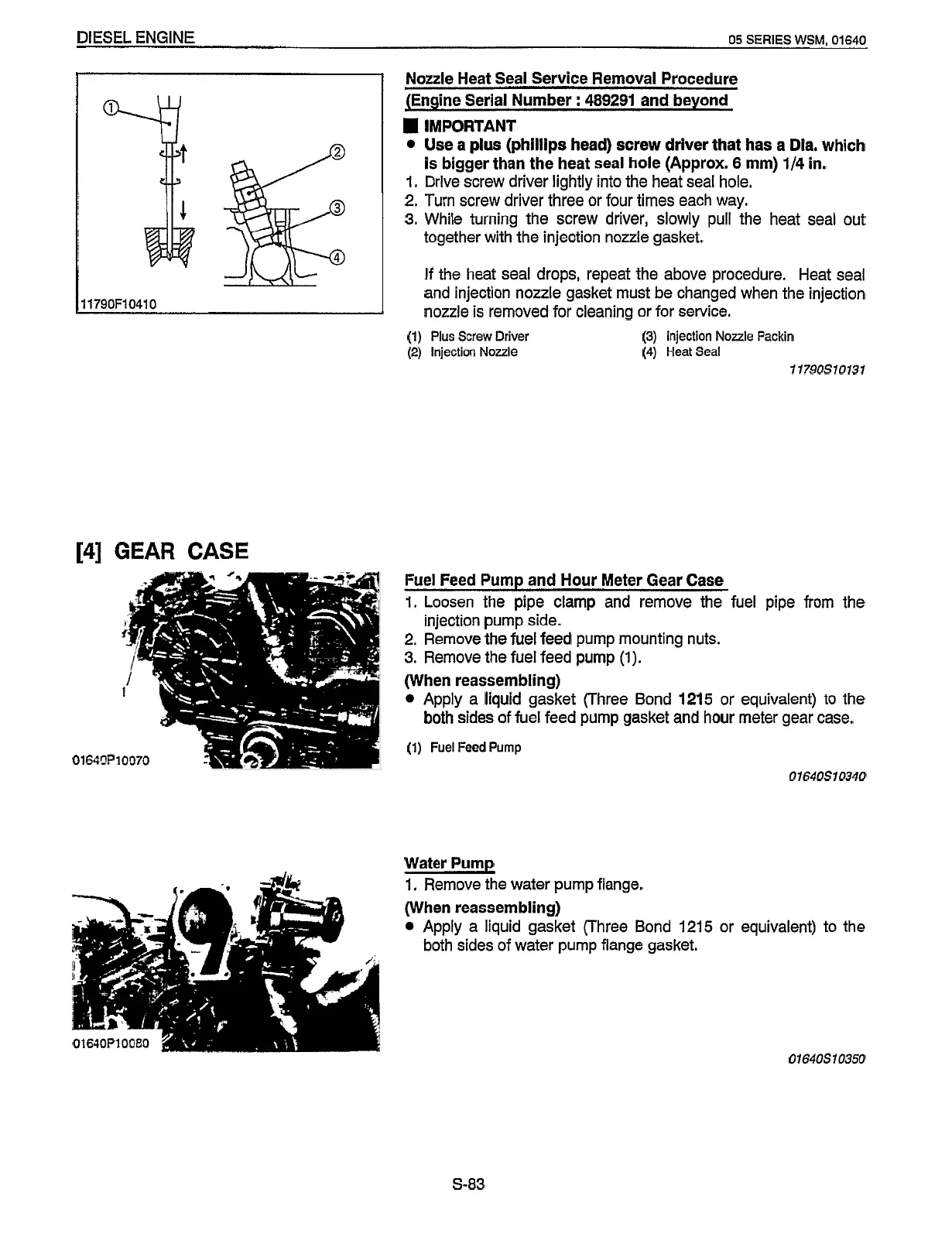

Nozzle Heat Seal Service Removal Procedure
lEngine Serial Number
: 489291 and beyond
Use a plus (Phillips head) screw driver that has a Dia. which
1. Drive screw driver lightly into the heat seal hole.
2. Turn screw driver three or four times each way.
3. While turning the screw driver, slowly pull the heat seal out
IMPORTANT
is bigger than the heat seal hole (Approx.
6 mm) 114 in.
together with the injection nozzle gasket.
If the heat seal drops, repeat the above procedure. Heat seal
and injection nozzle gasket must be changed when the injection
nozzle
is removed for cleaning or for service.
(1) Plus Screw Driver
(2) Injection Nozzle
(3) Injection Nozzle Packin
(4) Heat Seal
I 1790S1013 I
[4] GEAR CASE
01641P
Fuel Feed Pump and Hour Meter Gear Case
1. Loosen the pipe clamp and remove the fuel pipe from the
2. Remove the fuel feed pump mounting nuts.
3. Remove the fuel feed pump (1).
(When reassembling)
Apply a liquid gasket (Three Bond 1215 or equivalent) to the
both sides of fuel feed pump gasket and hour meter gear case.
(1) Fuel Feed Pump
injection pump side.
0 164031 0340
Water Pump
. dk 1, Remove the water pump flange.
Biiiiia (When reassembling)
a. -
01640S10350
S-83
