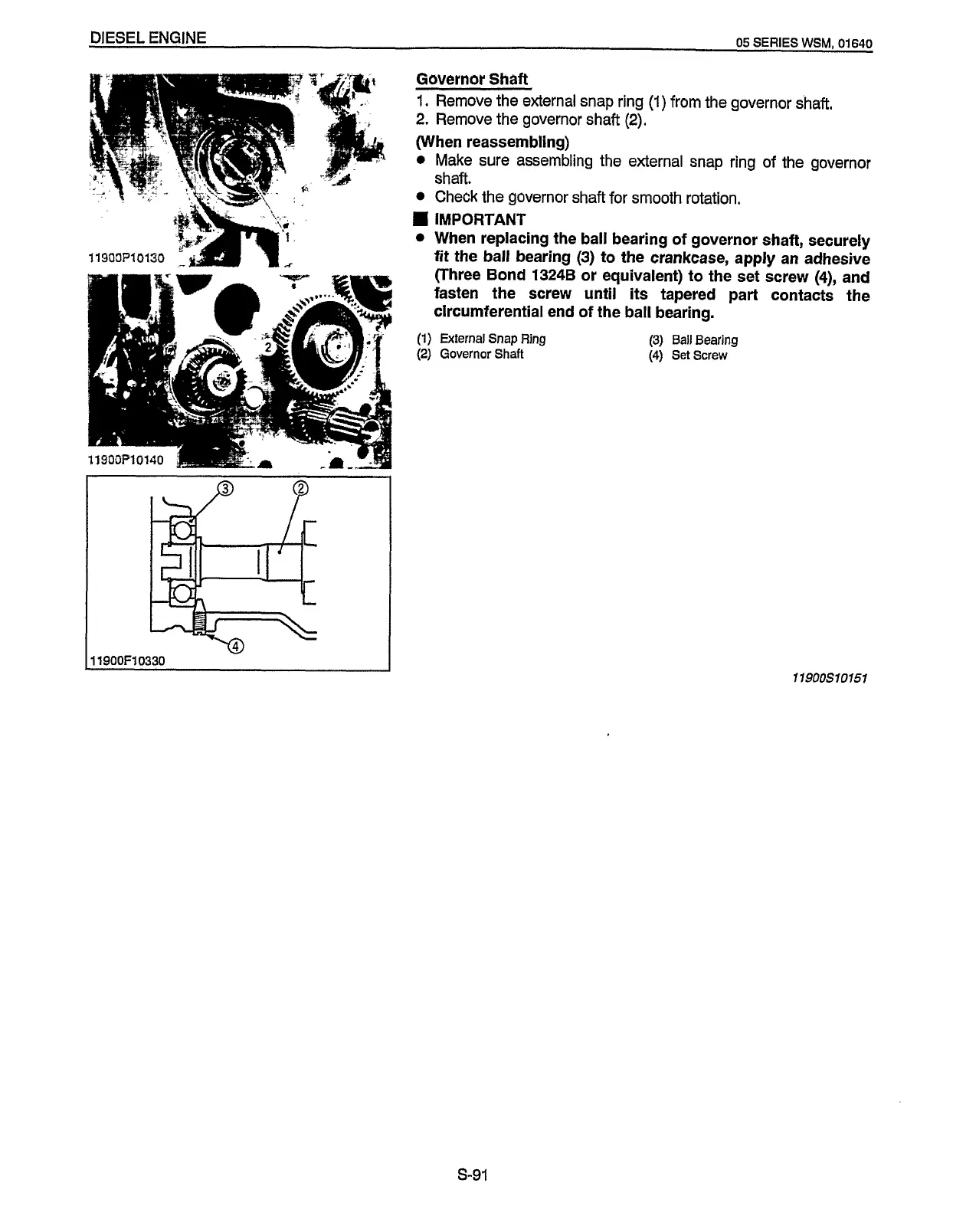

DIESEL
ENGINE
05
SERIES
WSM,
01640
Governor
Shaft
1.
Remove the external snap ring
(1)
from the governor shaft,
2.
Remove the governor shaft
(2).
(When reassembling)
Make sure assembling the external snap ring of the governor
Check the governor shaft for smooth rotation.
#
IMPORTANT
When replacing the ball bearing of governor shaft, securely
fit the ball bearing
(3)
to the crankcase, apply an adhesive
(Three Bond
1324B
or equivalent) to the set screw
(4),
and
fasten the screw until its tapered part contacts the
circumferential end of the ball bearing.
shaft.
(1)
External Snap Ring
(2)
Governor
Shaft
(3)
Ball Bearing
(4)
Set Screw
11900S10151
s-91
