DIESEL
ENGINE
05
SERIES
WSM,
01640
-
I
ni
&InM
ni
~i
I

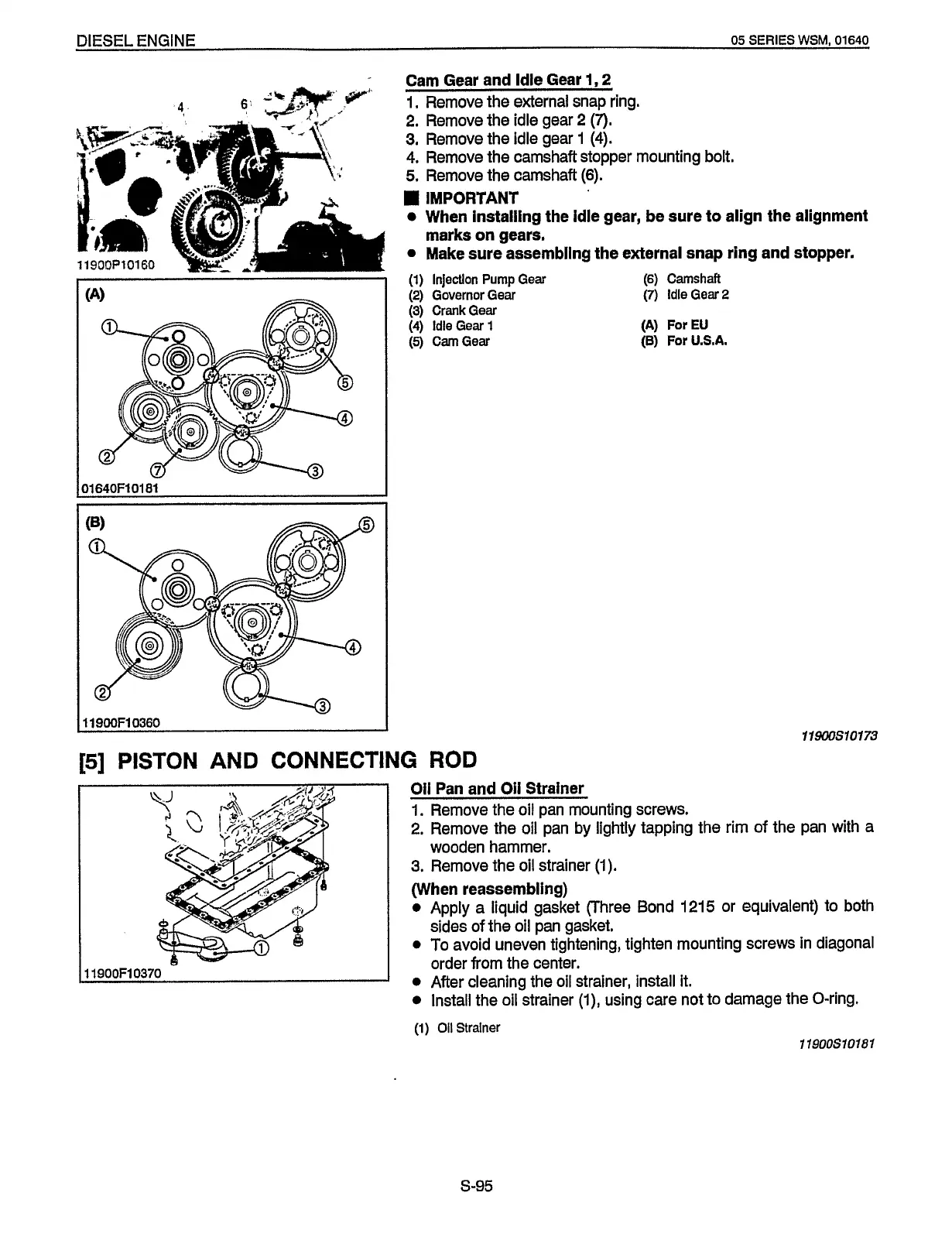

Cam Gear and Idle Gear
1,2
1,
Remove the external snap ring.
2.
Remove the idle gear
2
(7).
3.
Remove the idle gear
1
(4).
4. Remove the camshaft stopper mounting bolt.
5.
Remove the camshaft
(6).
IMPORTANT
When installing the idle gear, be sure to align the
marks
on
gears.
0
Make sure assembling the external snap ring and
(1)
Injection
Pump
Gear
(2) Governor Gear
(7)
idle Gear2
(3)
CrankGear
(4)
Idle Gear
1
(5)
CamGear
(B)
For
U.S.A.
(6)
Camshaft
(A)
For
EU
I
1
1900F10360
[5]
PISTON AND CONNECTING ROD
alignment
stopper.
11900510173
Oil
Pan and
Oft
Strainer
1.
Remove the
oil
pan mounting screws.
2.
Remove the oil pan by lightly tapping the rim
of
the pan with a
wooden hammer.
3.
Remove the oil strainer
(1).
(When reassembling)
Apply a liquid gasket (Three Bond
1215
or equivalent) to both
e
To
avoid uneven tightening, tighten mounting screws in diagonal
After cleaning the oil strainer, install
it.
Install the oil strainer
(I),
using care not
to
damage the O-ring.
(1)
Oil
Strainer
sides
of
the oil pan gasket.
order from the center.
11QOOS10181
s-95
