Kubota 05 Series Repair Manual

05 SERIES WSM, 01640
DIESEL ENGINE

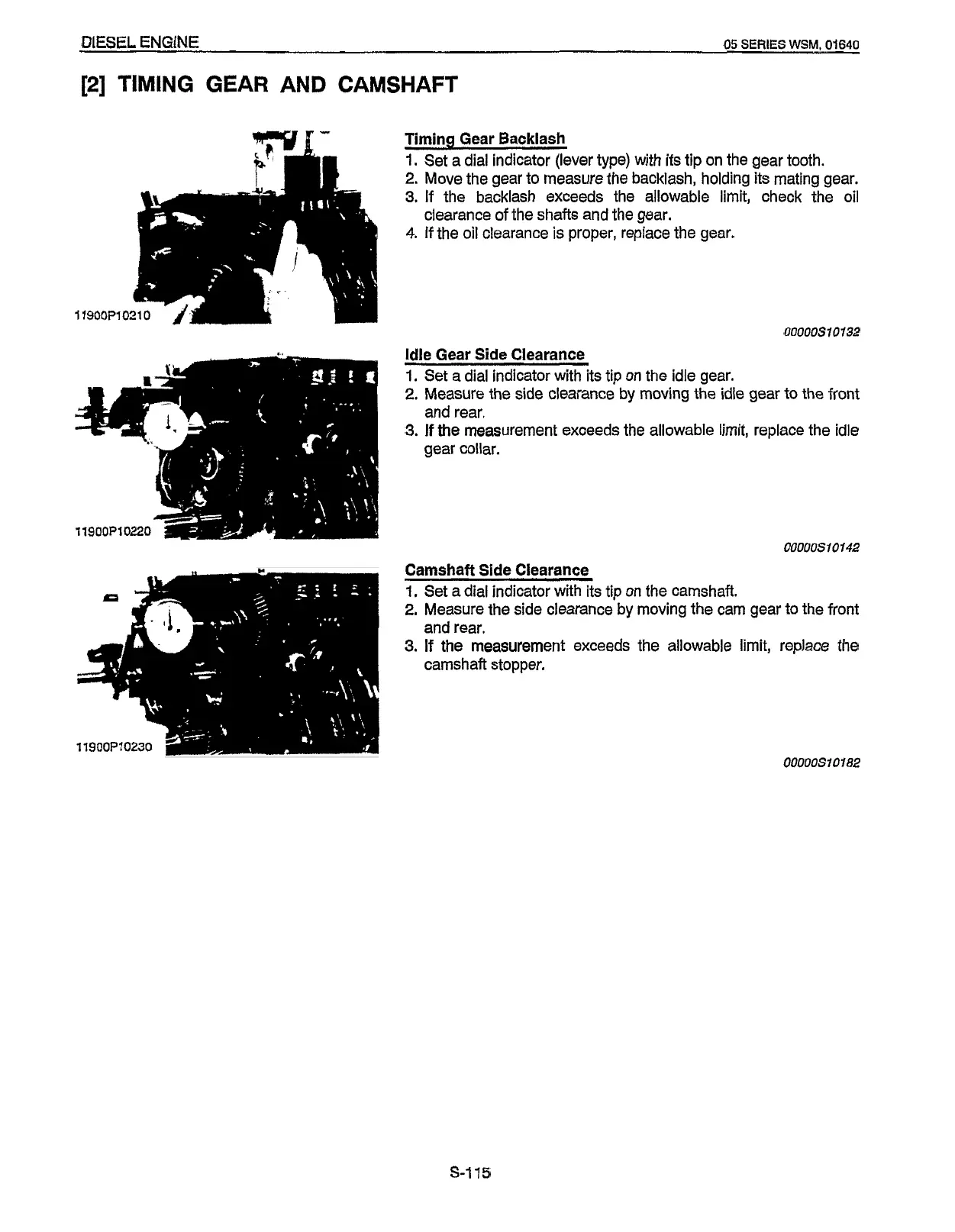

[2] TIMING GEAR AND CAMSHAFT
Timing Gear Backlash
1, Set a dial indicator (lever type) with its tip on the gear tooth.
2. Move the gear to measure the backlash, holding its mating gear.
3. If the backlash exceeds the allowable limit, check the oil
4. If the oil clearance is proper, replace the gear.
clearance of the shafts and the gear.
OOOOOS10132
Idle Gear Side Clearance
1, Set a dial indicator with its tip on the idle gear.
2. Measure the side clearance by moving the idle gear to the front
3. If the measurement exceeds the allowable limit, replace the idle
and rear.
gear collar.
OOOOOS10142
Camshaft Side Clearance
1, Set a dial indicator with its tip on the camshaft.
2. Measure the side clearance by moving the cam gear to the front
3. If the measurement exceeds the allowable limit, replace the
and rear.
camshaft stopper.
OOOOOSl0182
