DIESEL
ENGINE
05
SERIES
WSM,
01640
.,
I
00000F10280~
Q
I
OOOOOF10740
I

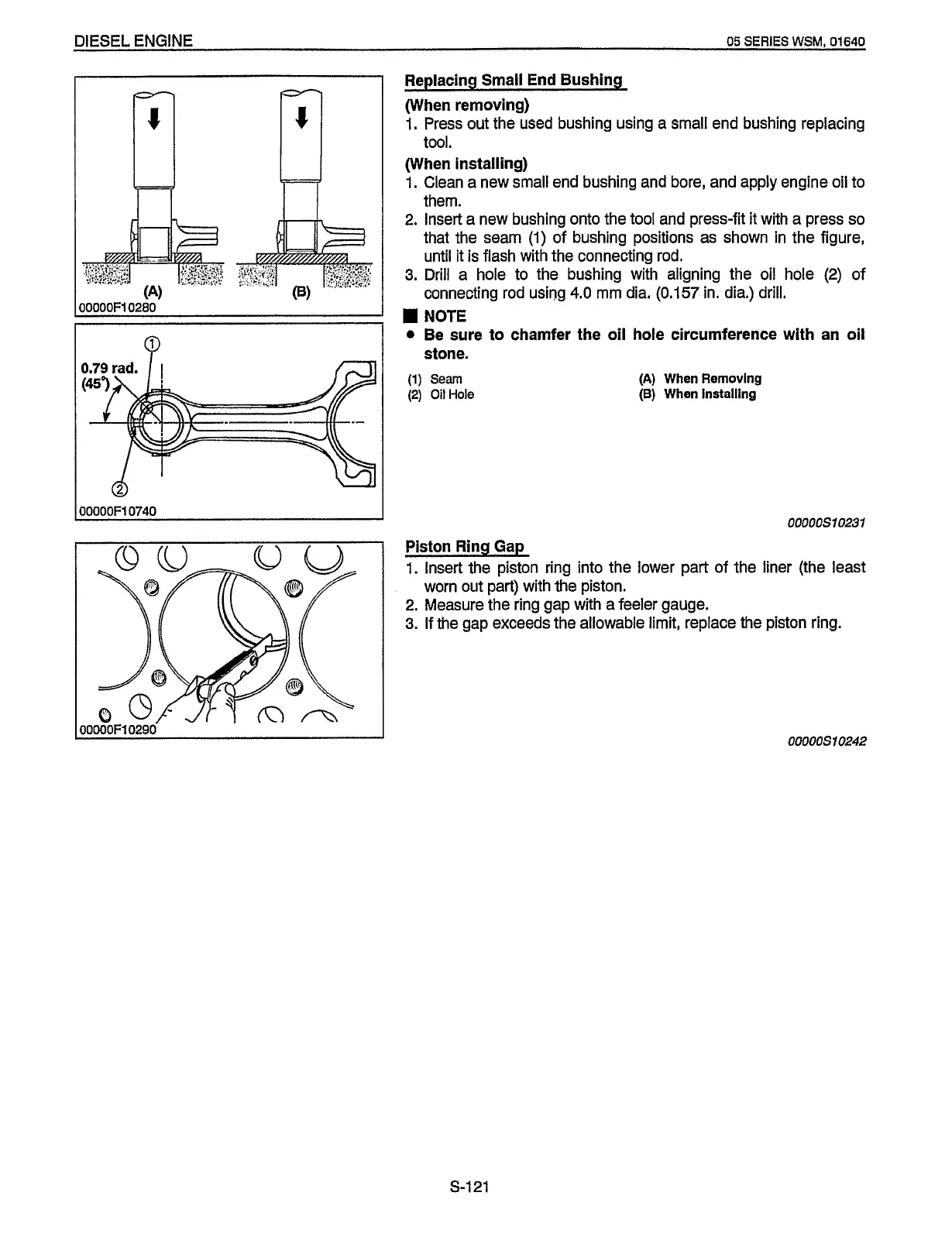

Replacing Small
End
Bushing
(When removing)
I,
Press out the used bushing using a small end bushing replacing
(When installing)
1,
Clean a new small end bushing and bore, and apply engine oil to
them.
2.
Insert a new bushing onto the tool and press-fit it with a press
so
that the seam
(1)
of
bushing positions as shown in the figure,
until
it
is flash with the connecting rod.
3.
Drill a hole to the bushing with aligning the oil hole
(2)
of
connecting rod
using
4.0
mm dia. (0.1
57
in. dia.) drill.
I
NOTE
0
Be sure
to
chamfer the oil hole circumference with an oil
stone.
tool.
(1)
Seam
(2) Oil
Hole
(A)
When Removing
(B)
When installing
00000Sl0231
Piston
Ring
Gap
1.
Insert the piston ring into the lower part of the liner (the least
2. Measure the ring gap with a feeler gauge.
3.
If
the gap exceeds the allowable limit, replace the piston ring.
worn out
part)
with the piston.
OOOOOS10242
s-I21
