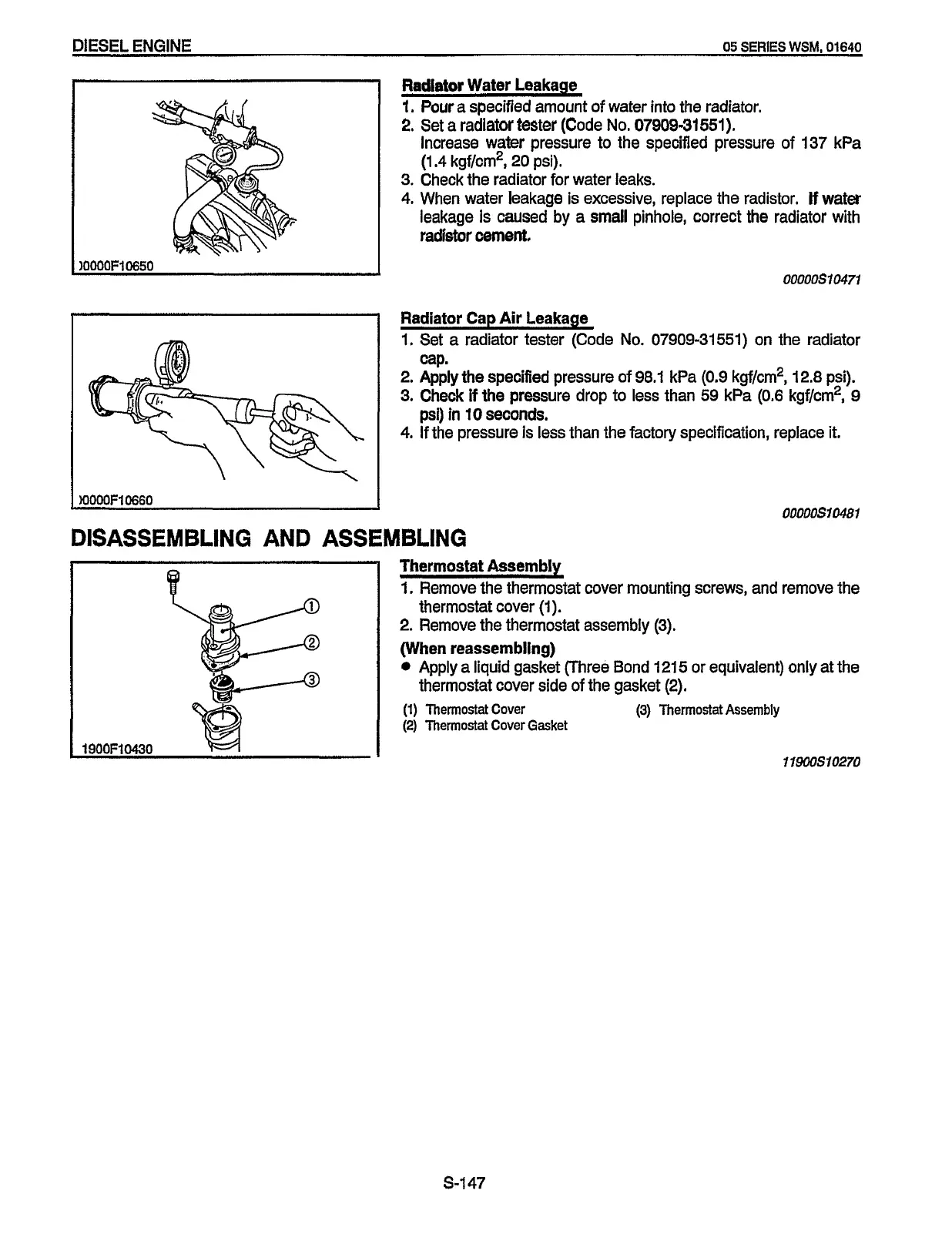

DIESEL ENGINE 05 SERIES WSM, 01640
IOOOOF10650
~OOOF10660
Radiator Water Leakage
1. Pour a specified amount of water into the radiator.
2. Set a radiator tester (Code No. 07909-31551).
Increase water pressure to the specified pressure of 137 kPa
(1.4 kgf/cm2, 20 psi).
3. Check the radiator for water leaks.
4. When water leakage is excessive, replace the radistor. If water
leakage is caused by a small pinhole, correct the radiator with
radistor cement.
00000510471
Radiator Cap Air Leakage
1. Set a radiator tester (Code No. 07909-31551) on the radiator
2. Apply the specified pressure of 98.1 kPa (0.9 kgf/cm2, 12.8 psi).
3. Check if the pressure drop to less than 59 kPa (0.6 kgf/cm2, 9
4. If the pressure is less than the factory specifi cation, replace it.
cap.
psi) in
10 seconds.
oooooslo.QBf
DISASSEMBLING AND ASSEMBLING
1900F10430
Thermostat Assembly
1. Remove the thermostat cover mounting screws, and remove the
thermostat cover
(1).
2. Remove the thermostat assembly (3).
(When reassembling)
Apply a liquid gasket (Three Bond 1215 or equivalent) only at the
(1) Thermostat Cover
(2) Thermostat Cover Gasket
thermostat cover side of the gasket (2).
(3) Thermostat Assembly
119oOS10270
s-147
