DIESEL
ENGINE
05
SERIES
WSM, 01640

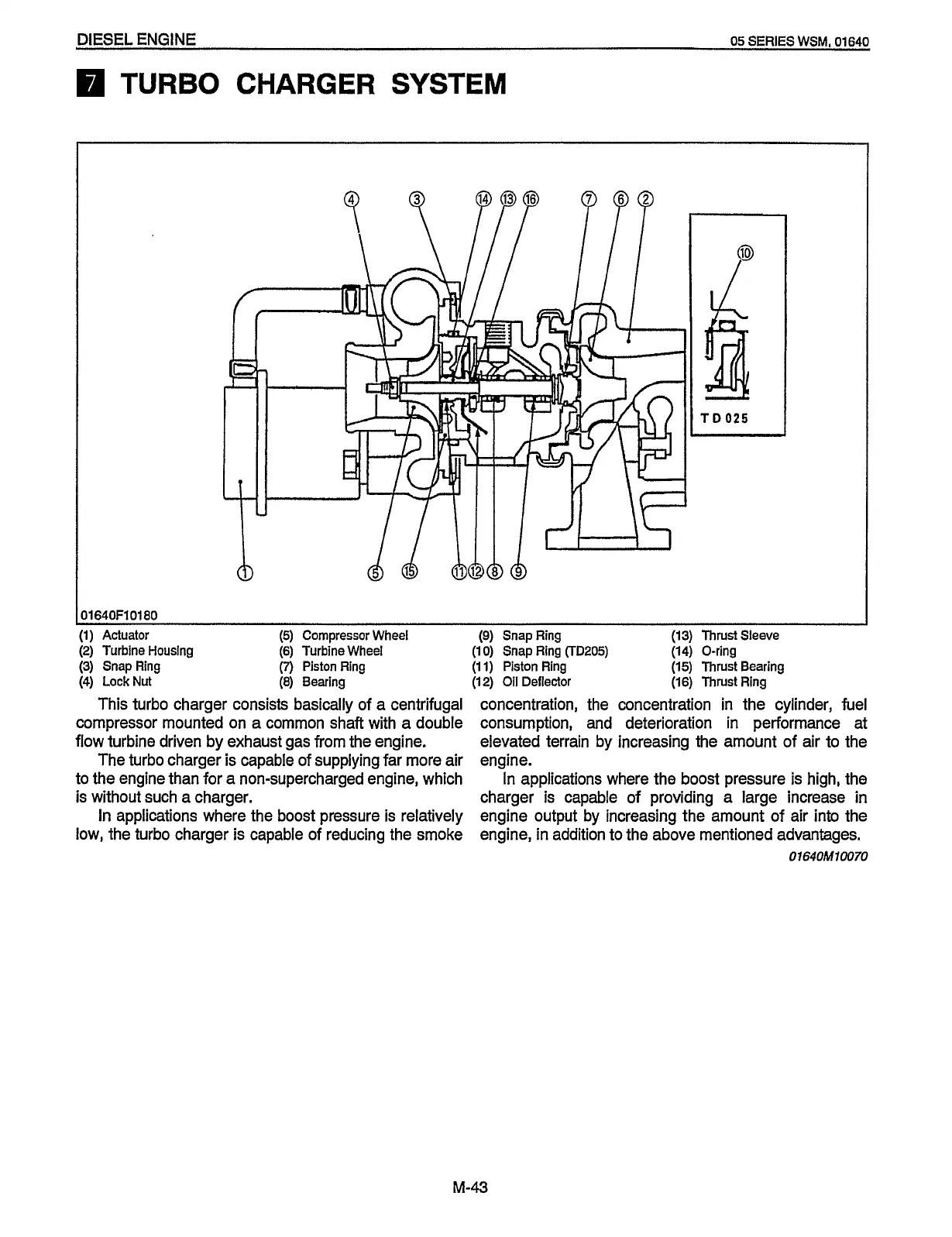

TURBO CHARGER SYSTEM
TD025
4
11
64OF10180
(1)
Actuator
(5)
Compressor
Wheel
(9)
SnapRing
(13)
Thrust
Sleeve
(2)
Turbine Housing
(6) Turbine Wheel
(1
0)
Snap Ring
(TD205)
(14) O-ring
(3)
Snap Ring
(7)
Piston Ring
(1 1)
Piston Ring
(15)
Thrust
Bearing
(4)
Lock
Nut
(8)
Bearing
(1
2)
Oil
Deflector
(16)
Thrust
Ring
This
turbo charger consists basically
of
a centrifugal
compressor mounted
on
a
common
shaft
with
a double
flow
turbine driven
by
exhaust gas
from
the engine.
The
turbo
charger
is
capable
of
supplying
far more air
to
the engine than
for
a non-supercharged engine,
which
is
without
such
a
charger.
In
applications where the
boost
pressure
is
relatively
low,
the
turbo
charger
is
capable
of
reducing the smoke
concentration, the concentration
in
the cylinder, fuel
consumption, and deterioration
in
performance at
elevated terrain
by
increasing
the
amount
of
air to the
engine.
In
applications where the boost pressure
is
high,
the
charger
is
capable
of
providing
a
large increase
in
engine
output
by
increasing the amount
of
air
into
the
engine,
in
addition
to
the above mentioned advantages.
01
640M
10070
M-43
