S-42
WG972-E2, DF972-E2, WSM
GASOLINE / LPG ENGINE

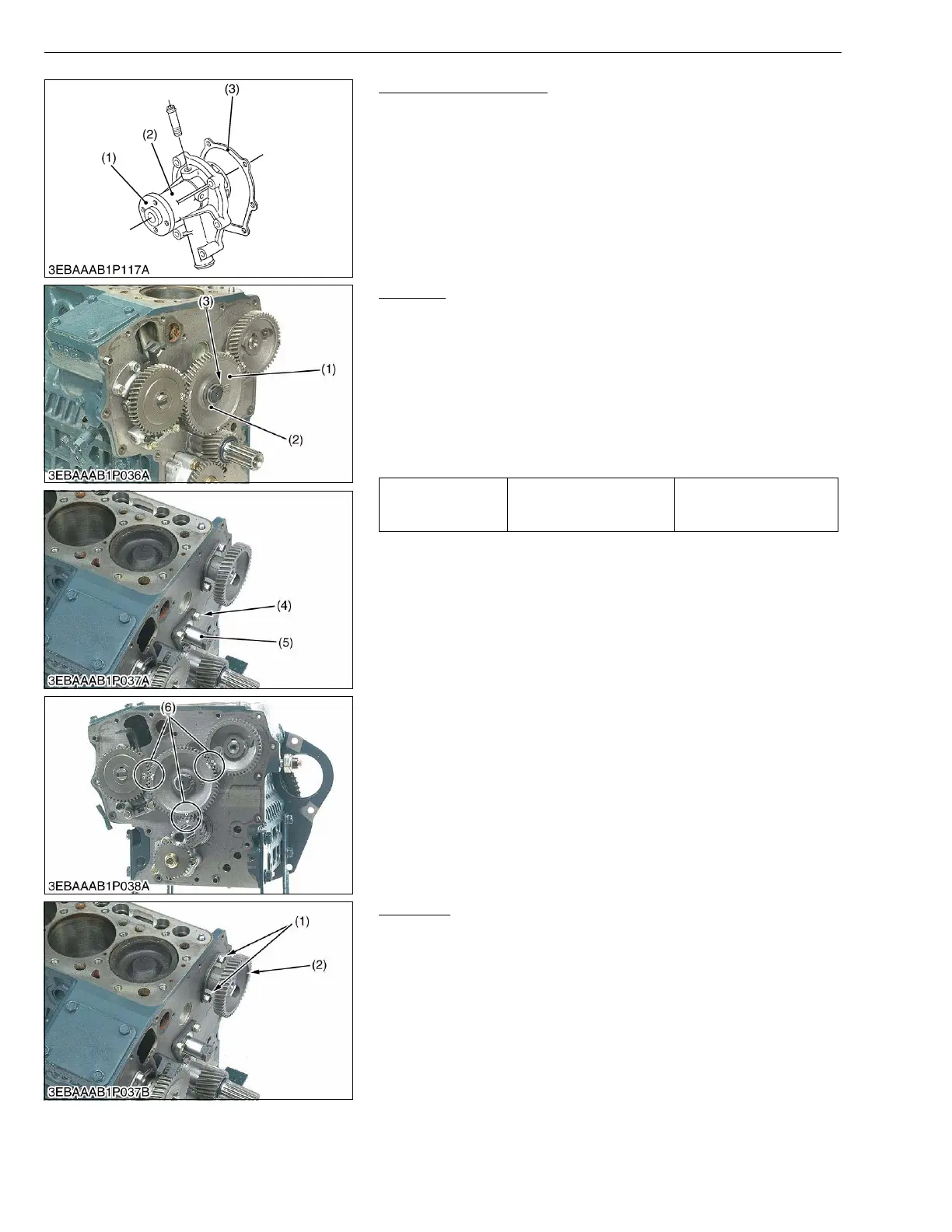

Water Pump Assembly
1. Remove the water pump assembly from the gear case cover.
(When reassembling)
•Apply a liquid gasket (Three Bond 1215 or equivalent) to both
sides of gasket (3).
W1150960
Idle Gear
1. Remove the external snap ring (3), the collar (2) and the idle gear
(1).
2. Remove the idle gear shaft mounting screws (4).
3. Remove the idle gear shaft (5).
(When reassembling)
•Apply engine oil to the idle gear shaft mounting screw (4). And
tighten them.
•Install the idle gear, aligning the mark (6) on the gears referring
to the photo.
W1030437
Camshaft
1. Remove the camshaft mounting screws (1) and draw out the
camshaft with gear (2) on it.
(When reassembling)
•When install the camshaft, apply engine oil to the camshaft
journals.
•Apply engine oil to the camshaft mounting screws. And tighten
them.
W1030808
(1) Water Pump Flange
(2) Water Pump Assembly
(3) Water Pump Gasket
Tightening torque
Idle gear shaft mounting
screw
9.8 to 11.3 N·m
1.00 to 1.15 kgf·m
7.2 to 8.3 ft-lbs
(1) Idle Gear
(2) Idle Gear Collar
(3) External Snap Ring
(4) Idle Gear Shaft Mounting Screw
(5) Idle Gear Shaft
(6) Alignment Mark
(1) Camshaft Mounting Screw (2) Camshaft Gear
