M-6
WG972-E2, DF972-E2, WSM
GASOLINE / LPG ENGINE

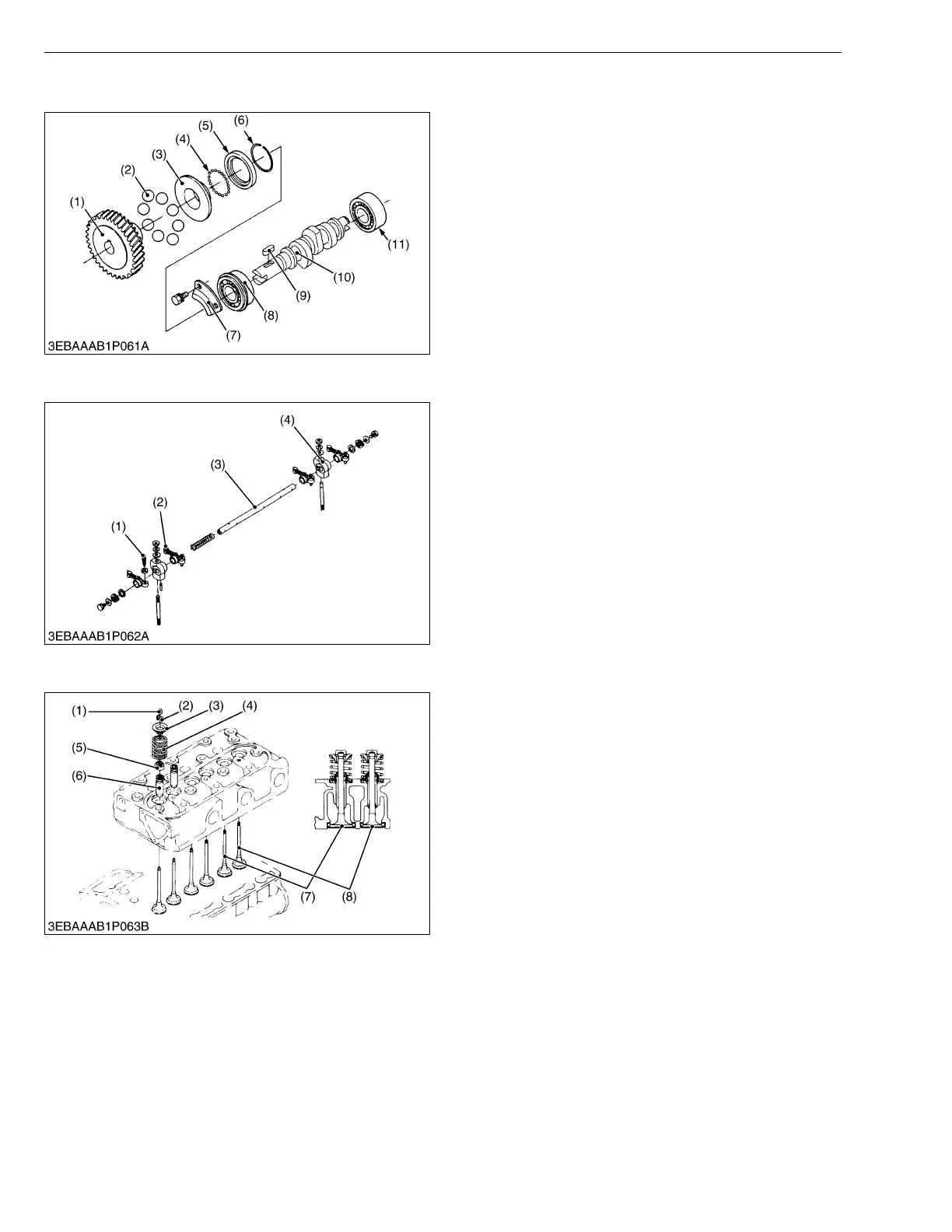

[9] FUEL CAMSHAFT
The camshaft (10) is equipped with steel ball (2) to
control the governor..
Power can be taken out from this shaft. (Side PTO).
[10] ROCKER ARM ASSEMBLY
The rocker arm assembly includes the rocker arms
(2) and adjusting screws (1), the end of which rests on
the push rods, rocker arm brackets (4) and rocker arm
shaft (3).
The rocker arms swing and transmits the
reciprocating motion of the push rods to the inlet and
exhaust valves to open and close them.
[11] INLET AND EXHAUST VALVES
The valve and its guide for the inlet are different from
those for the exhaust.
Other parts, such as the spring (4), spring retainer (3),
collet (2), stem seal (5), and cap (1) are the same for both
the inlet and exhaust.
(1) Injection Pump Gear
(2) Steel Ball
(3) Governor Sleeve
(4) Steel Ball
(5) Governor Ball Case
(6) Governor Sleeve Snap Ring
(7) Stopper
(8) Ball Bearing
(9) Feather key
(10) Fuel Camshaft
(11) Ball Bearing
(1) Adjusting Screw
(2) Rocker Arm
(3) Rocker Arm Shaft
(4) Rocker Arm Bracket
(1) Valve Cap
(2) Collet
(3) Spring Retainer
(4) Spring
(5) Stem Seal
(6) Valve Guide
(7) Inlet Valve
(8) Exhaust Valve
