G-3
WG972-E2, DF972-E2, WSM
G GENERAL
■ Tamper Resistance
KUBOTA Corporation is to provide safeguards for the parts
where never to be adjusted, and is approved by EPA / CARB for the
purpose of this engine to be in compliance with EPA / CARB
Emission Regulations through its useful life. Intentional removal and
adjustment of such tamper resistance are subject to the penalty.
W1025903
[2] CYLINDER NUMBER
The cylinder numbers of KUBOTA gasoline / LPG engine are
designated as shown in the figure.
The sequence of cylinder numbers is given as No.1, No.2 and
No.3 starting from the gear case side.
W1011077

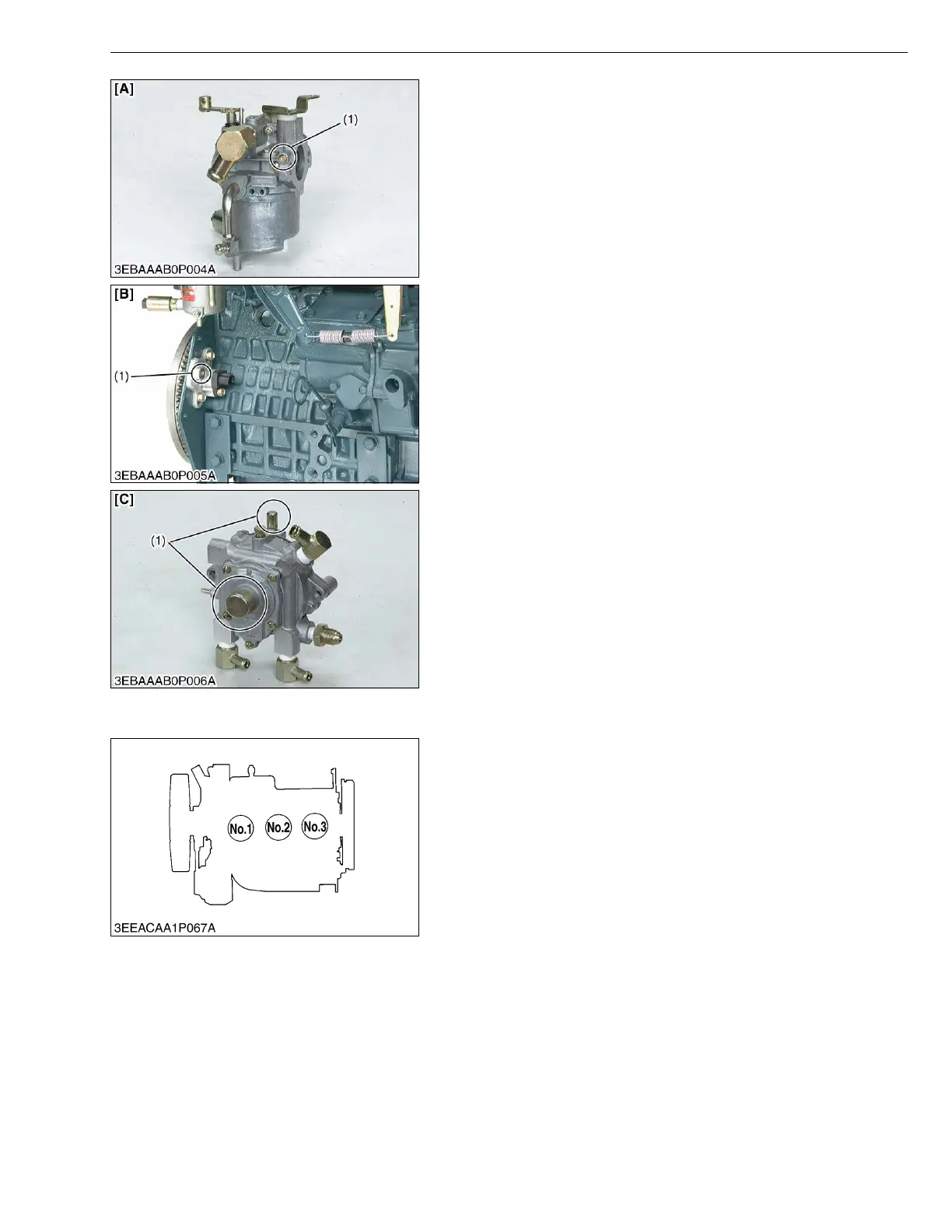

(1) Tamper Resistance [A] Carburetor
[B] Pick-up Sensor
[C] Vaporizer
