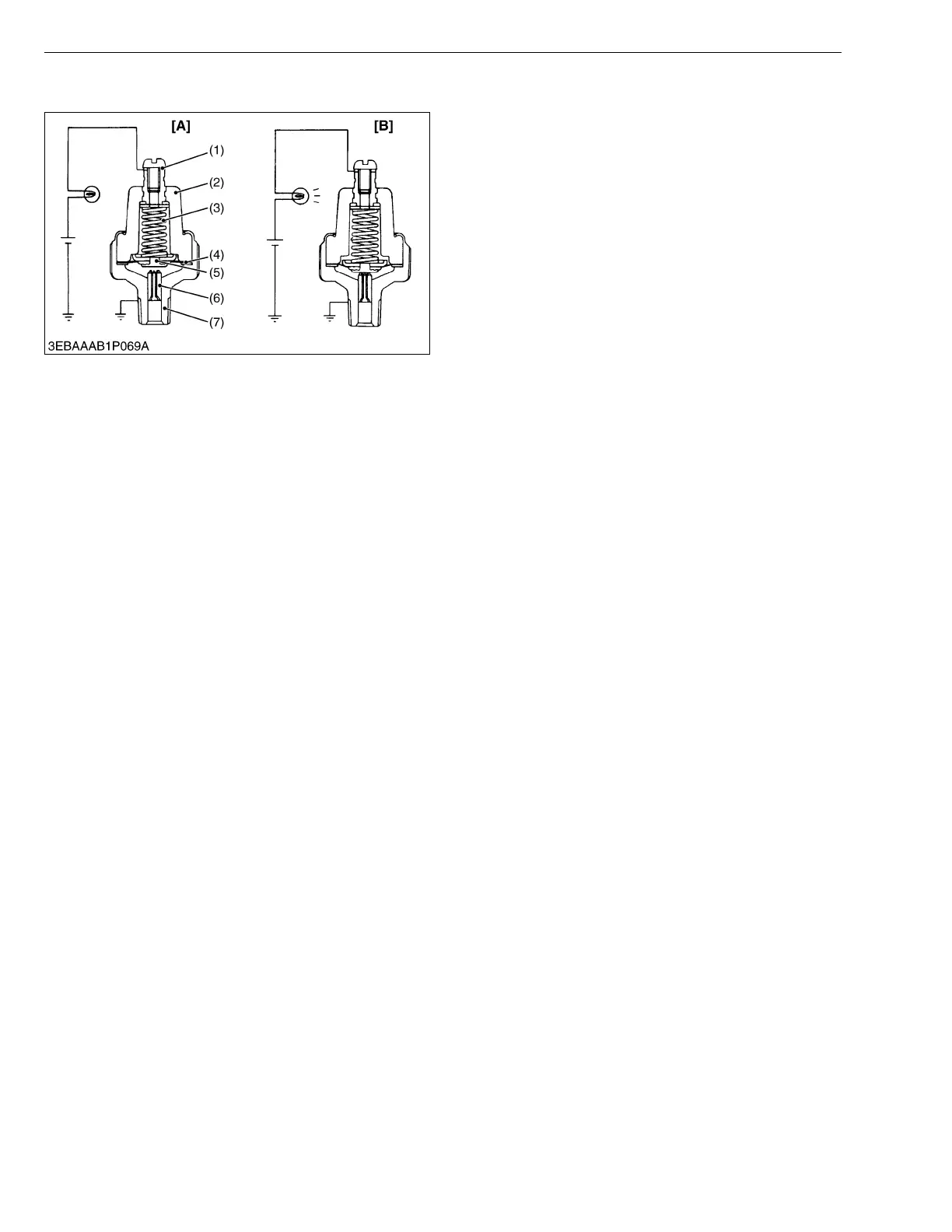

[5] OIL PRESSURE SWITCH
The oil pressure switch is mounted on the cylinder
block and is led to the lubricating oil passage.
When the oil pressure falls below the specified value,
the oil pressure warning lamp lights.
(1) Terminal
(2) Insulator
(3) Spring
(4) Rubber Gasket
(5) Contact Rivet
(6) Contact
(7) Oil Switch Body
[A] At the proper oil pressure
[B] At lower oil pressure, 49
kpa (0.5kgf/cm
2
, 7 psi) or
less
