S-55
WG972-E2, DF972-E2, WSM
GASOLINE / LPG ENGINE

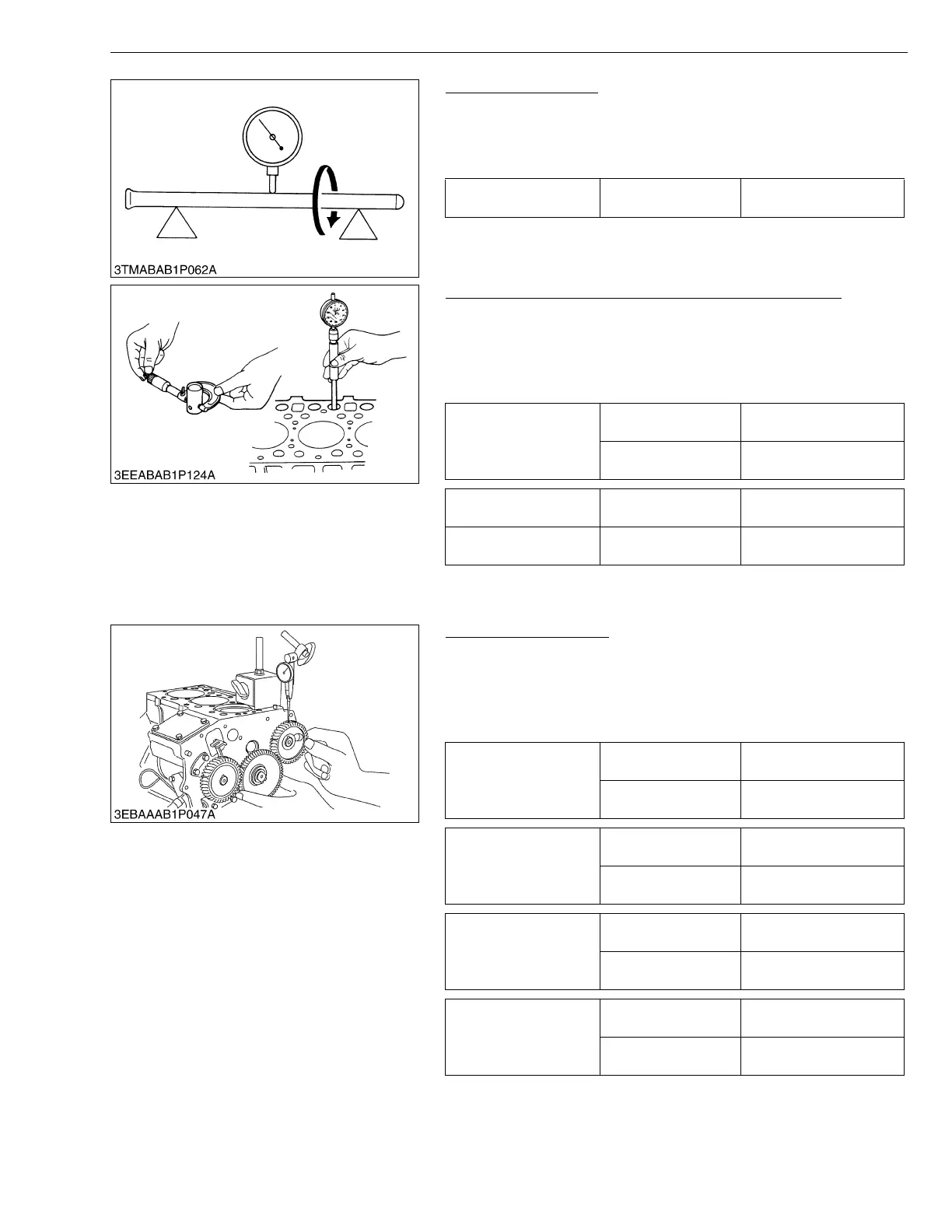

Push Rod Alignment
1. Place the push rod on V blocks.
2. Measure the push rod alignment.
3. If the measurement exceeds the allowable limit, replace the push
rod.
W10292900
Oil Clearance between Tappet and Tappet Guide Bore
1. Measure the tappet O.D. with an outside micrometer.
2. Measure the I.D. of the tappet guide bore with a cylinder gauge,
and calculate the oil clearance.
3. If the oil clearance exceeds the allowable limit or the tappet is
damaged, replace the tappet.
W1063847
(2) Timing Gear, Camshaft
Timing Gear Backlash
1. Set a dial indicator (lever type) with its tip on the gear tooth.
2. Move the gear to measure the backlash, holding its mating gear.
3. If the backlash exceeds the allowable limit, check the oil
clearance of the shafts and the gear.
4. If the oil clearance is proper, replace the gear.
W1064048
Push rod alignment Allowable limit
0.25 mm
0.0098 in.
Oil clearance between
tappet and tappet guide
bore
Factory spec.
0.016 to 0.052 mm
0.00063 to 0.00205 in.
Allowable limit
0.10 mm
0.0039 in.
Tap pe t O .D . F a cto ry sp ec.
17.966 to 17.984 mm
0.70732 to 0.70803 in.
Tap pet gu ide b or e I. D. F ac t or y sp ec.
18.000 to 18.018 mm
0.70866 to 0.70937 in.
Backlash between idle
gear and crank gear
Factory spec.
0.043 to 0.124 mm
0.00169 to 0.00488 in.
Allowable limit
0.15 mm
0.0059 in.
Backlash between idle
gear and cam gear
Factory spec.
0.047 to 0.123 mm
0.00185 to 0.00484 in.
Allowable limit
0.15 mm
0.0059 in.
Backlash between idle
gear and injection pump
gear
Factory spec.
0.046 to 0.124 mm
0.00181 to 0.00488 in.
Allowable limit
0.15 mm
0.0059 in.
Backlash between oil
pump drive gear and
crank gear
Factory spec.
0.041 to 0.123 mm
0.00161 to 0.00484 in.
Allowable limit
0.15 mm
0.0059 in.
To Next Page
