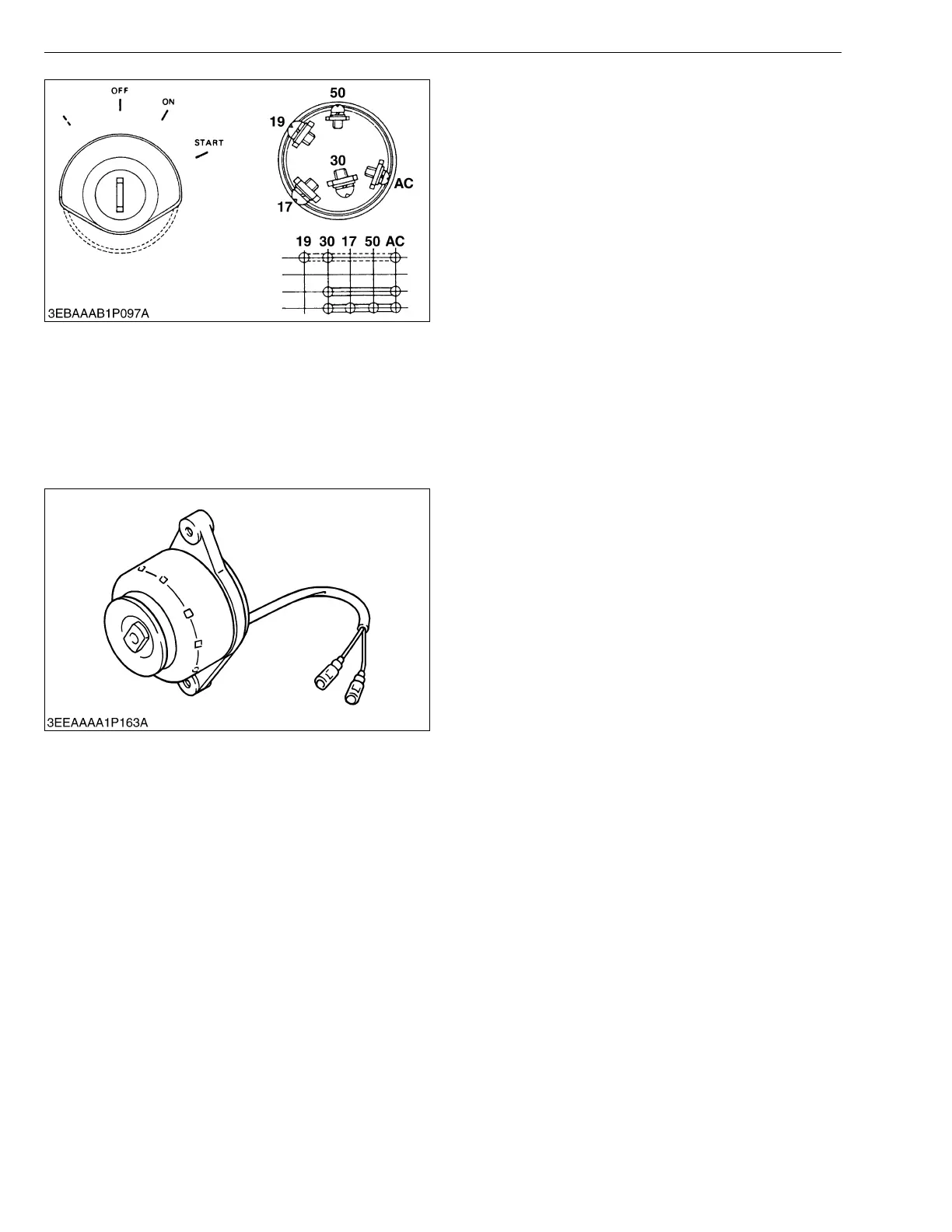

■ Key Switch
The key switch has 4 positions. The terminal "30" is
connected to the battery.
It is released at the "STARTER" position and returns
to the "ON" position.
[START]
When the key is turned to the "START" position,
through the "ON" position the current supplied to the
starter to regulator, oil lamp and accessory
50 to starter
30 from battery
AC to regulator, oil lamp and accessory
[ON]
Only the terminal "AC" is connected to the battery.
At any position of the key except the "OFF" position, the
terminal "AC" is connected to the "30" terminal.
30 from battery
AC to regulator, oil lamp and accessory
W1017536
[2] CHARGING SYSTEM
■ Alternator
This alternator is an 8-8 pole rotating magnet type
generator. It is simple in construction, consisting of a
stator and rotor. The rotor is made up of eight permanent
magnet pole pieces assembled on a shaft and rotates on
the center of the stator around which eight
electromagnetic coils are provided for. This alternator
produces higher voltage in slow speed rotation, and
charges electric current to the battery during engine
idling.
W1017814
