M-25
WG972-E2, DF972-E2, WSM
GASOLINE / LPG ENGINE

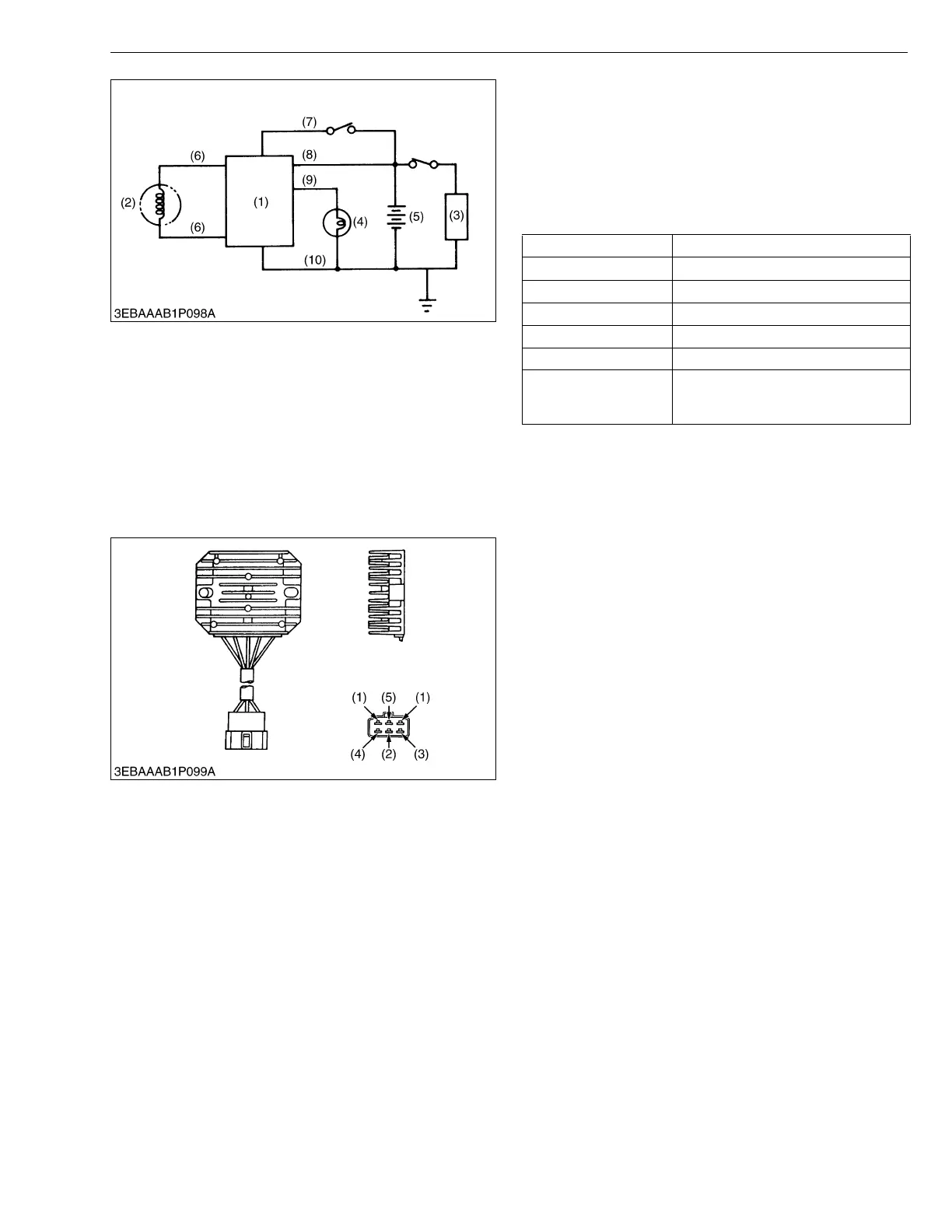

■ Regulator
The regulator performs rectification and voltage
regulation. The regulator converts AC into DC which
flows through the power consuming circuits and the
battery, and also charges the battery. If however, the
battery voltage exceeds a certain level. The DC current
is cut off from the charging circuit to prevent
overcharging.
W1015544
■ Features
1. This small-sized regulator can control large output
current because charging current is supplied and
stopped by thyristor (series system).
2. Built-in AC diode generation detecting circuit permits
a charge indication lamp (12 V, 3.4 W) to be easily
connected.
3. Protection diode protects regulator when battery is
wrongly connected.
W1034000
Model RS5155
Part No. RP201-53710
Weight Approx. 200 g
Regulated voltage 14 to 15 V
Battery to be used 12 V, 28 AH
Charge indication lamp 12 V, 3.4 W
Alternator to be used
Under 100 V of peak value of no-load
voltage
Under 16 A of output current
(1) Regulator
(2) Alternator
(3) Load
(4) Charge Lamp
(5) Battery
(6) Blue Lead Wire
(7) Yellow Lead Wire
(8) Red Lead Wire
(9) Overrunning Clutch
(10) Black Lead Wire
(1) Blue Lead Wire
(2) Yellow Lead Wire
(3) Red Lead Wire
(4) Green Lead Wire
(5) Black Lead Wire
