M-5
WG972-E2, DF972-E2, WSM
GASOLINE / LPG ENGINE

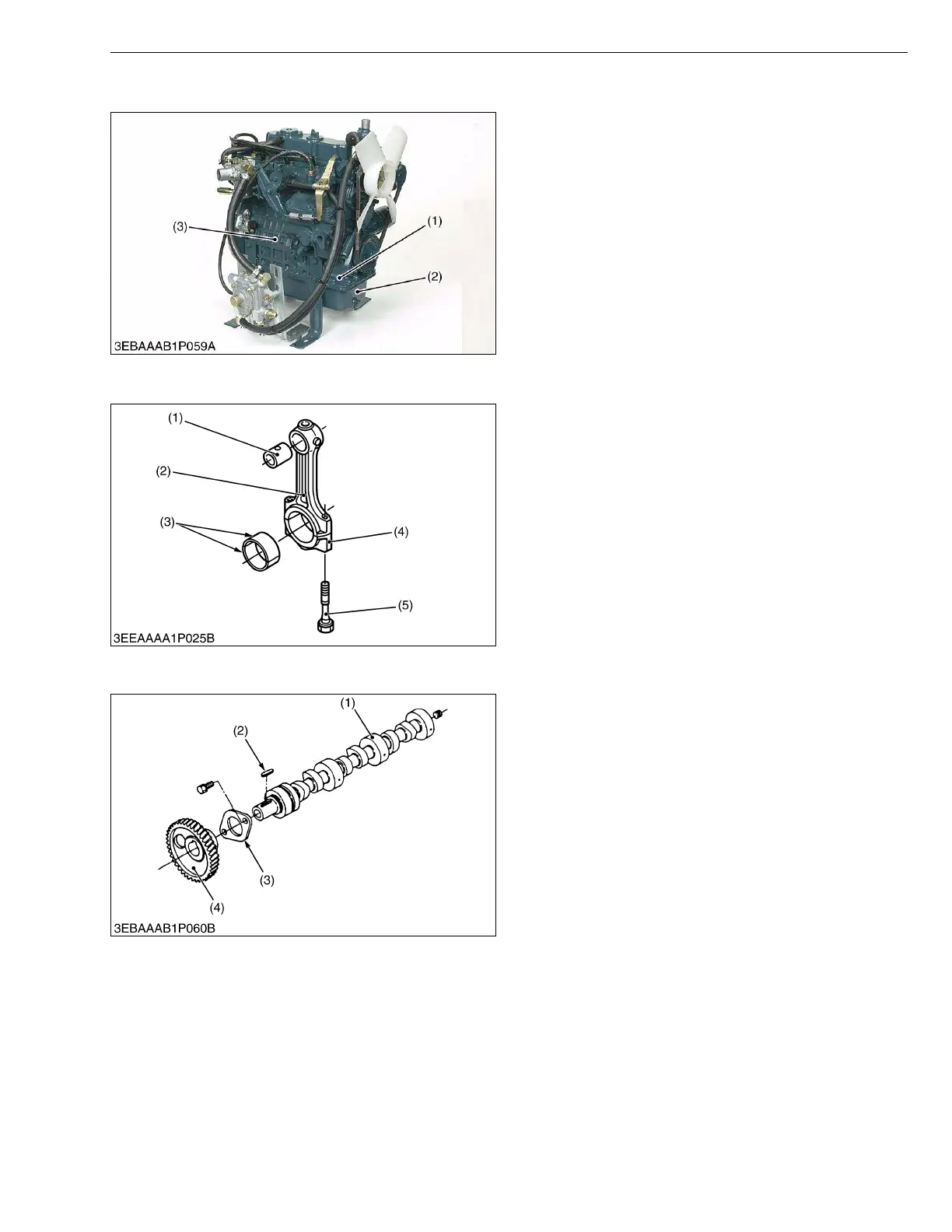

[6] OIL PAN
The oil pan is expanded under the gear case.
Therefore, the height of the engine can be lowered more
than so far while securing a necessary amount of oil.
W1013617
[7] CONNECTING ROD
The connecting rod (2) is used to connect the piston
with the crankshaft. The big end of the connecting rod
has a crankpin bearing (3) (split type) and the small end
has a small end bushing (1) (solid type).
[8] CAMSHAFT
The camshaft (1) is made of special cast iron, and the
journal and cam sections are chilled to resist wear.
The cams on the camshaft cause the intake and
exhaust valves to open as the camshaft rotates. The
bearing and journals are force-lubricated.
(1) Gear Case
(2) Oil Pan
(3) Crank Case
(1) Small End Bushing
(2) Connecting Rod
(3) Crankpin Bearing
(4) Connecting Rod Cap
(5) Connecting Rod Screw
(1) Camshaft
(2) Feather Key
(3) Camshaft Stopper
(4) Cam Gear
