S-33
WG972-E2, DF972-E2, WSM
GASOLINE / LPG ENGINE
(2) External Components
Alternator, Starter and Others
1. Remove the air cleaner and muffler.
2. Remove the cooling fan (1), fan pulley and fan belt (2).
3. Remove the alternator.
4. Remove the starter.
(When reassembling)
•Check to see that there are no cracks on the belt surface.
■
•After reassembling the fan belt, be sure to adjust the fan belt
tension.
•Do not confuse the direction of the fan.
W1049622
Fuel Line
1. Disconnect the gasoline hose from the connector (1).
W1125277
LPG Hose and Water Hose (DF972-E2)
CAUTION
•Vent the air of the water passage of vaporizer (5) after
detaching the water hose (2).
1. Disconnect the LPG hose from the connector (1).
2. Disconnect the water hose (2).
3. Disconnect the vapor hose (3) and vacuum lock hose (4).
4. Remove the vaporizer (5) (if necessary).
IMPORTANT■
•When disassembling the fuel system, make sure that the fuel
valve is closed.
(When reassembling)
•Bleed the vaporizer after supplying coolant.
W1125469

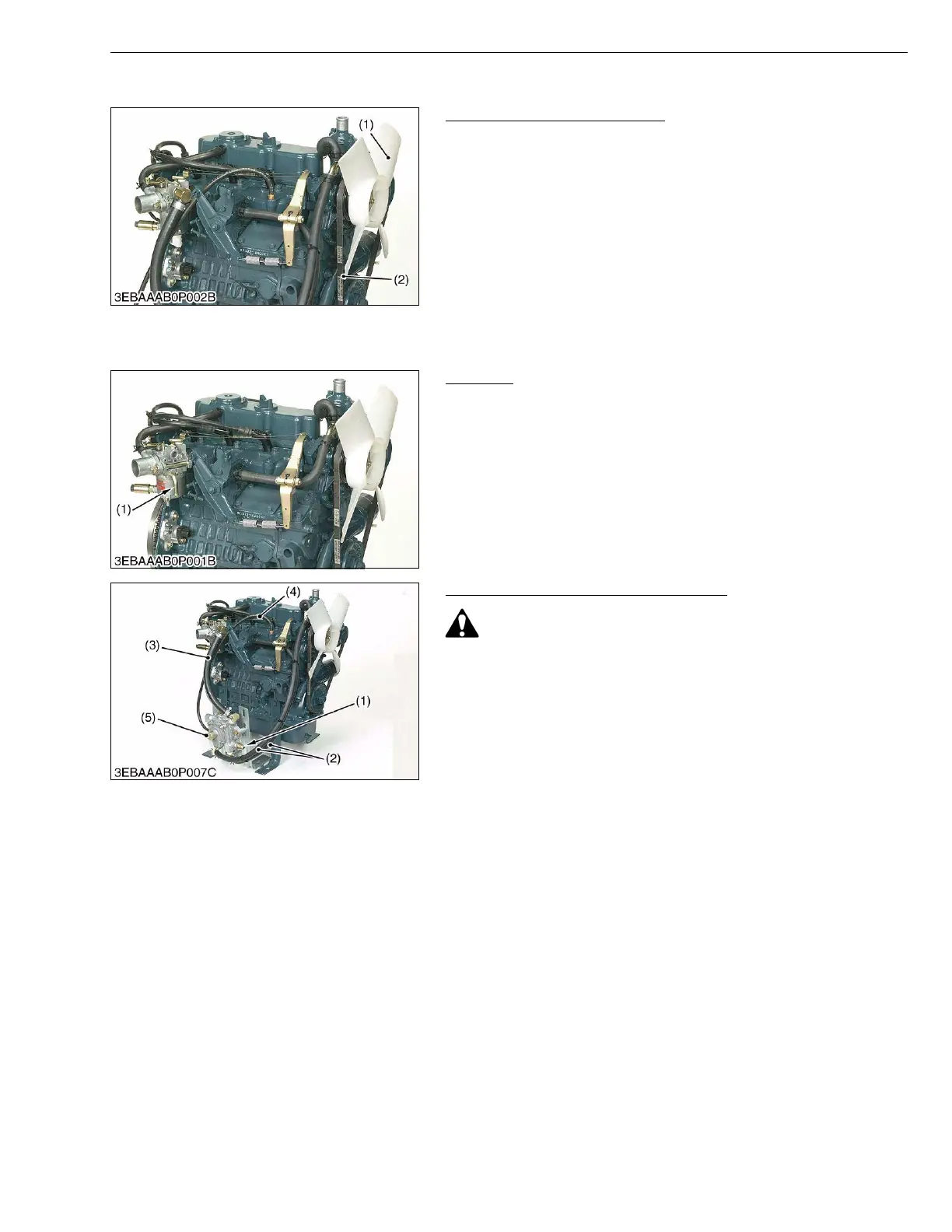

(1) Cooling Fan (2) Fan Belt
(1) Gasoline Hose Connector
(1) LPG Hose Connector
(2) Water Hose
(3) Vapor Hose
(4) Vacuum Lock Hose
(5) Vaporizer
