S-34
WG972-E2, DF972-E2, WSM
GASOLINE / LPG ENGINE

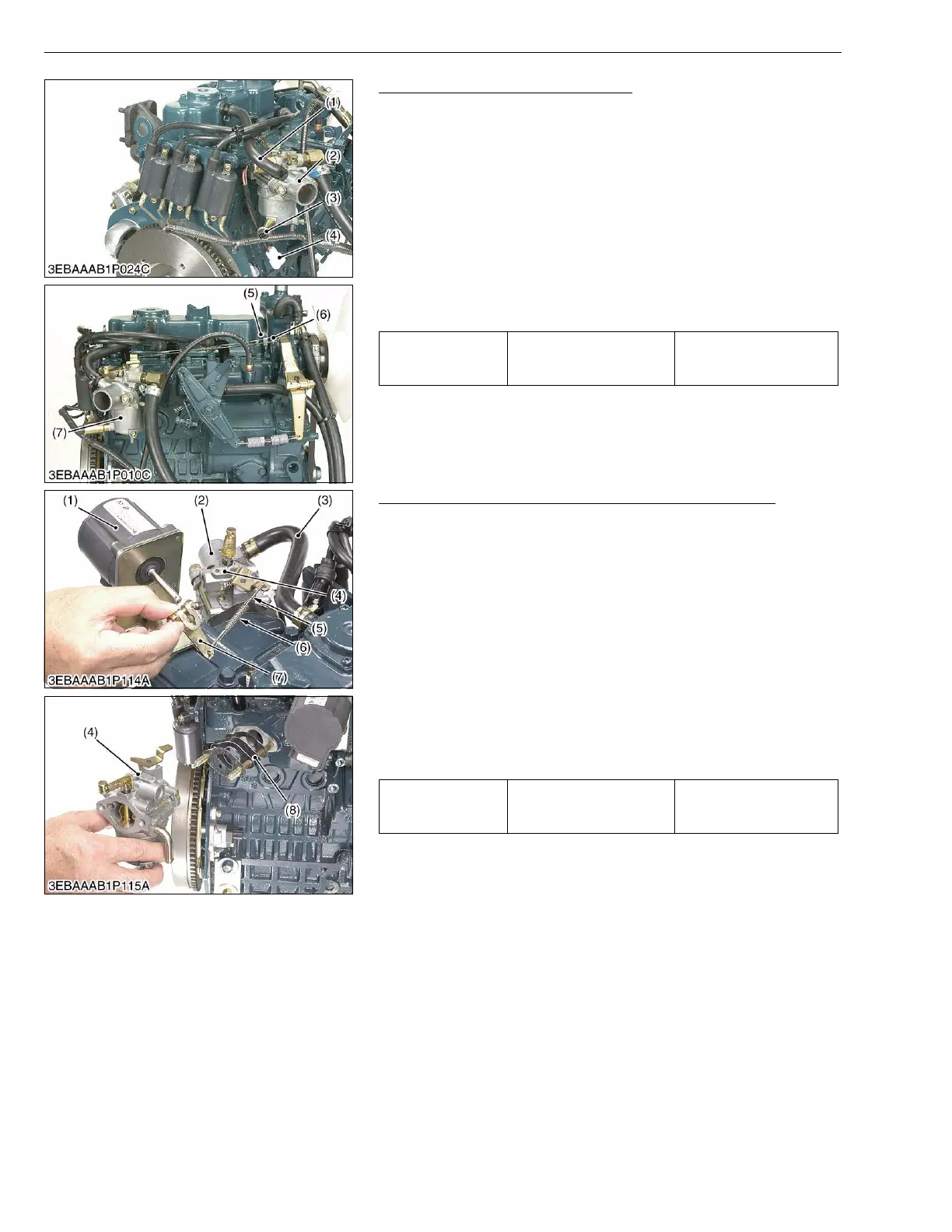

Carburetor (Mechanical Governor)
1. Disconnect the connector of LPG solenoid (for DF972) (4) and
the connector of gasoline solenoid (3).
2. Disconnect the breather hose (4).
3. Remove the air cleaner flange (2) and air cleaner gasket.
4. Disconnect governor rod (6) from carburetor (7) and remove the
carburetor (7).
5. Remove the carburetor flange and gasket.
■
•Do not bend the governor rod (6), when disassembling and
assembling the carburetor.
•Do not stretch the governor rod spring (5) when
disassembling and assembling the carburetor.
W1126561
Governor Lever and Carburetor (Electronic Governor)
1. Disconnect the connector of LPG solenoid (for DF972) and the
connector of gasoline solenoid.
2. Loosen the governor lever nut.
3. Remove the governor lever (7) with governor rod (5) and
governor spring (6).
4. Disconnect the breather hose (3).
5. Remove the air cleaner flange (2) and air cleaner gasket.
6. Remove the carburetor (4).
7. Remove the carburetor flange (8) and gasket.
■
•Do not bend the governor rod (5), when disassembling and
assembling the carburetor.
•Do not stretch the governor rod spring (6) when
disassembling and assembling the carburetor.
W1128201
Tightening torque Carburetor mounting nut
23.5 to 27.5 N·m
2.4 to 2.8 kgf·m
17.4 to 20.2 ft-lbs
(1) Breather Hose
(2) Air Cleaner Flange
(3) Gasoline Solenoid Connector
(4) LPG Solenoid Connector
(5) Governor Rod spring
(6) Governor Rod
(7) Carburetor
Tightening torque Carburetor mounting nut
23.5 to 27.5 N·m
2.4 to 2.8 kgf·m
17.4 to 20.2 ft-lbs
(1) Actuator
(2) Air Cleaner Flange
(3) Breather Hose
(4) Carburetor
(5) Governor Rod
(6) Governor Spring
(7) Governor Lever
(8) Carburetor Flange
To Next Page
