S-35
WG972-E2, DF972-E2, WSM
GASOLINE / LPG ENGINE

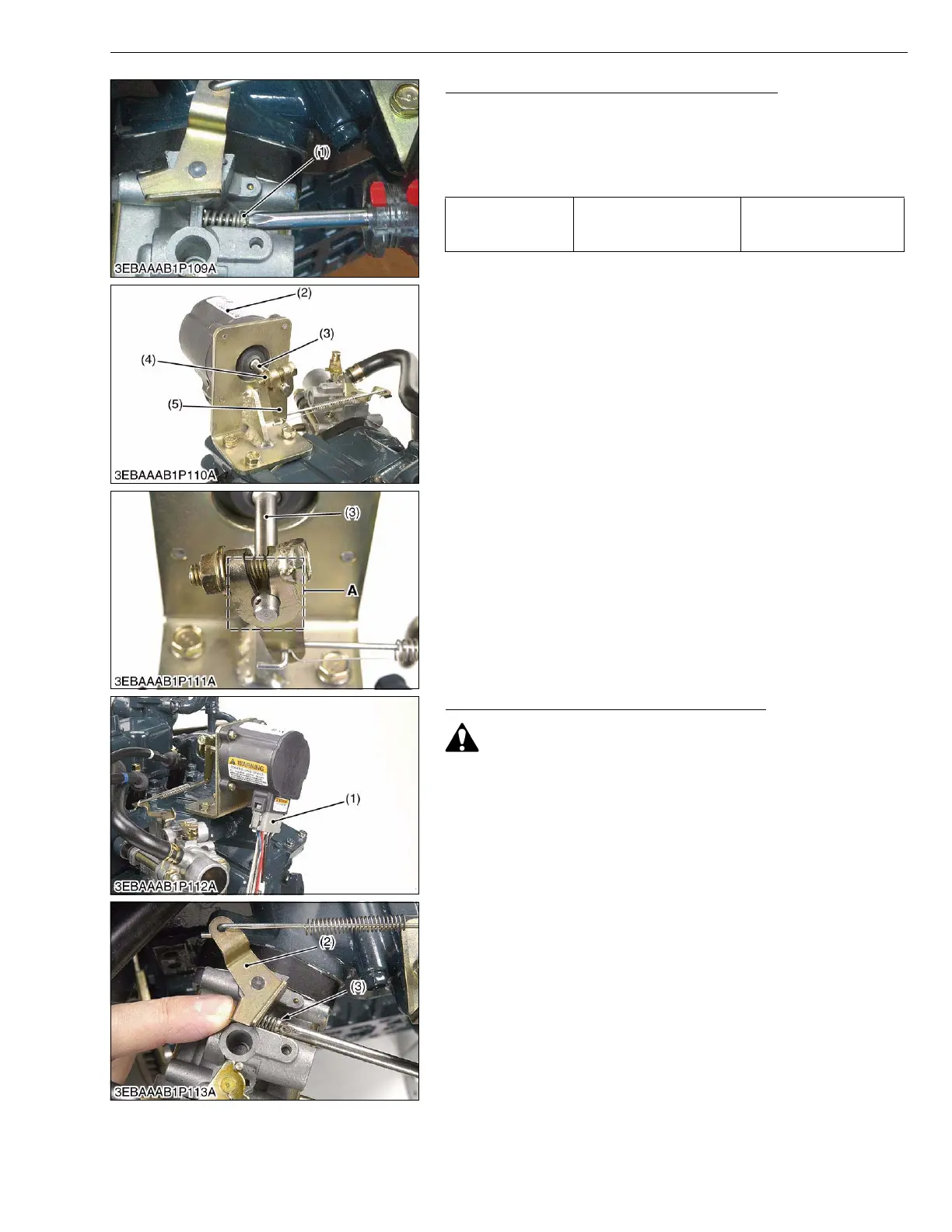

Adjust Governor Lever (Electronic Governor)
1. Loosen the idling speed screw (1).
2. Loosen the governor lever nut (4).
3. Turn the actuator shaft (3) fully counterclockwise.
4. Turn the governor lever (5) fully counterclockwise.
5. Tighten the governor lever nut (4) to the torque value.
■
•Align governor lever (5) with pin hole of actuator shaft (A)
and tighten nut (4).
•When starter switch turned on, the actuator will be in
position at the configured minimum position.
Adjust Throttle Lever (Electronic Governor)
CAUTION
•Hold the throttle lever (2) by finger in the direction of the
engine speed reduction so as not to overrun.
•The adjustment of the idle speed due to this process is not
an adjustment of the final product.
1. Disconnect the connector (1) from actuator.
2. Start the engine while holding the throttle lever (2) at the idle
position by hand.
3. Adjust the engien speed with the idle adjust screw (3) to 1200
rpm.
■
•An electornic governor controls the engine speed between
1500 rpm and 3600 rpm though it depends on the
applications.
W1129226
Tightening torque Governor lever nut
9.8 to 11.3 N·m
1.00 to 1.15 kgf·m
7.23 to 8.32 ft-lbs
(1) Idle Adjust Screw
(2) Actuator
(3) Actuator shaft
(4) Governor Lever Nut
(5) Governor Lever
A : Setting Position
(1) Connector
(2) Throttle Lever
(3) Idle Adjust Screw
To Next Page
