S-46
WG972-E2, DF972-E2, WSM
GASOLINE / LPG ENGINE

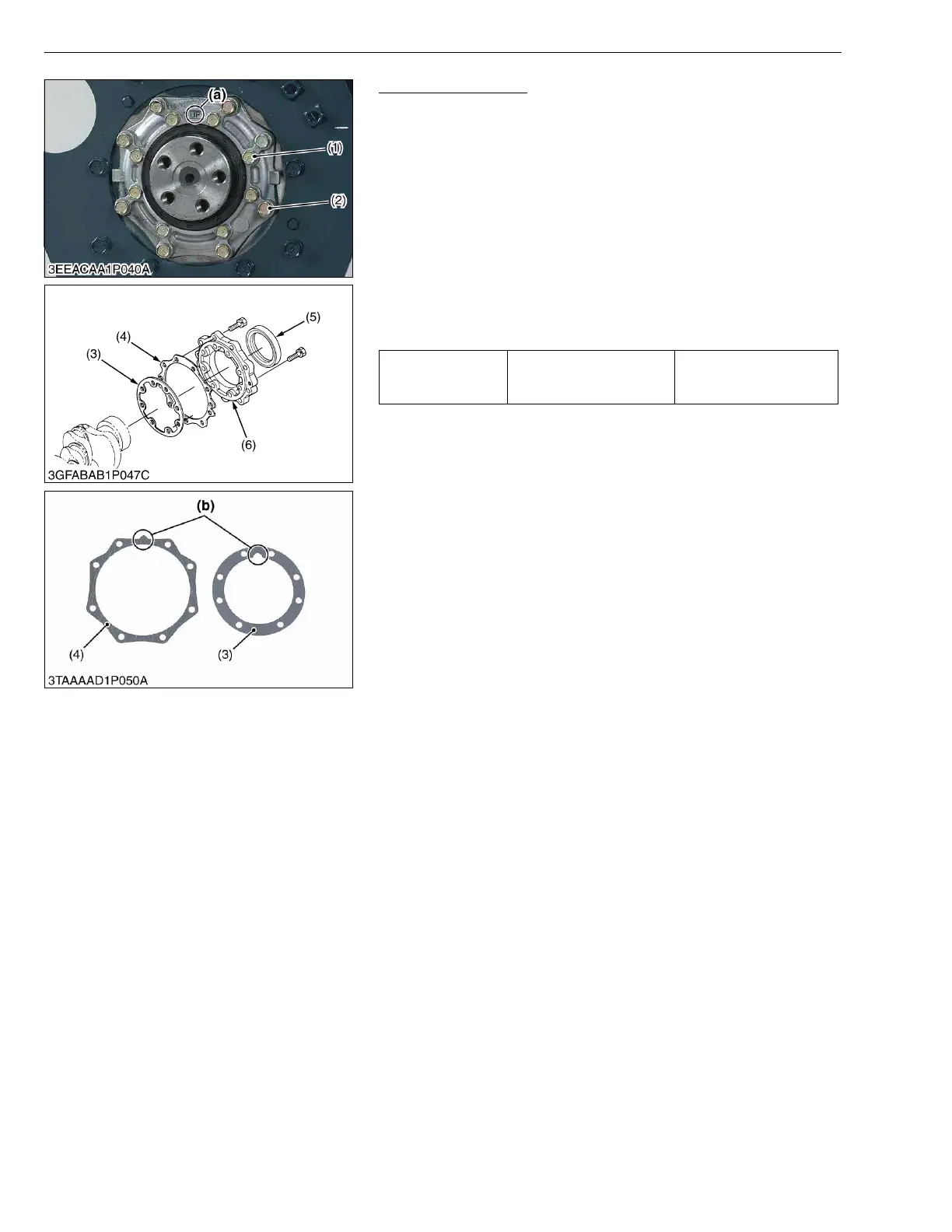

Bearing Case Cover
■
• Remove the bearing case cover mounting screws. First, remove
inside screws (1) and then outside screws (2).
2. Remove the bearing case cover (6).
(When reassembling)
•Fit the bearing case gasket (3) and the bearing case cover gasket
(4) with correct directions.
•Install the bearing case cover (6) to position the casting mark
"UP" (a) on it upward.
•Apply engine oil to the oil seal (5) lip and take care that it is not
rolled when installing.
•Tighten the bearing case cover mounting screws with even force
on the diagonal line.
W1060482
Tightening torque
Bearing case cover
mounting screw
9.8 to 11.3 N·m
1.00 to 1.15 kgf·m
7.2 to 8.3 ft-lbs
(1) Bearing Case Cover Mounting Screw
(Inside)
(2) Bearing Case Cover Mounting Screw
(Outside)
(3) Bearing Case Gasket
(4) Bearing Case Cover Gasket
(5) Oil Seal
(6) Bearing Case Cover
(a) Top Mark "UP"
(b) Upside
To Next Page
