Kubota DF972-E2 - Page 96

S-26
WG972-E2, DF972-E2, WSM
GASOLINE / LPG ENGINE

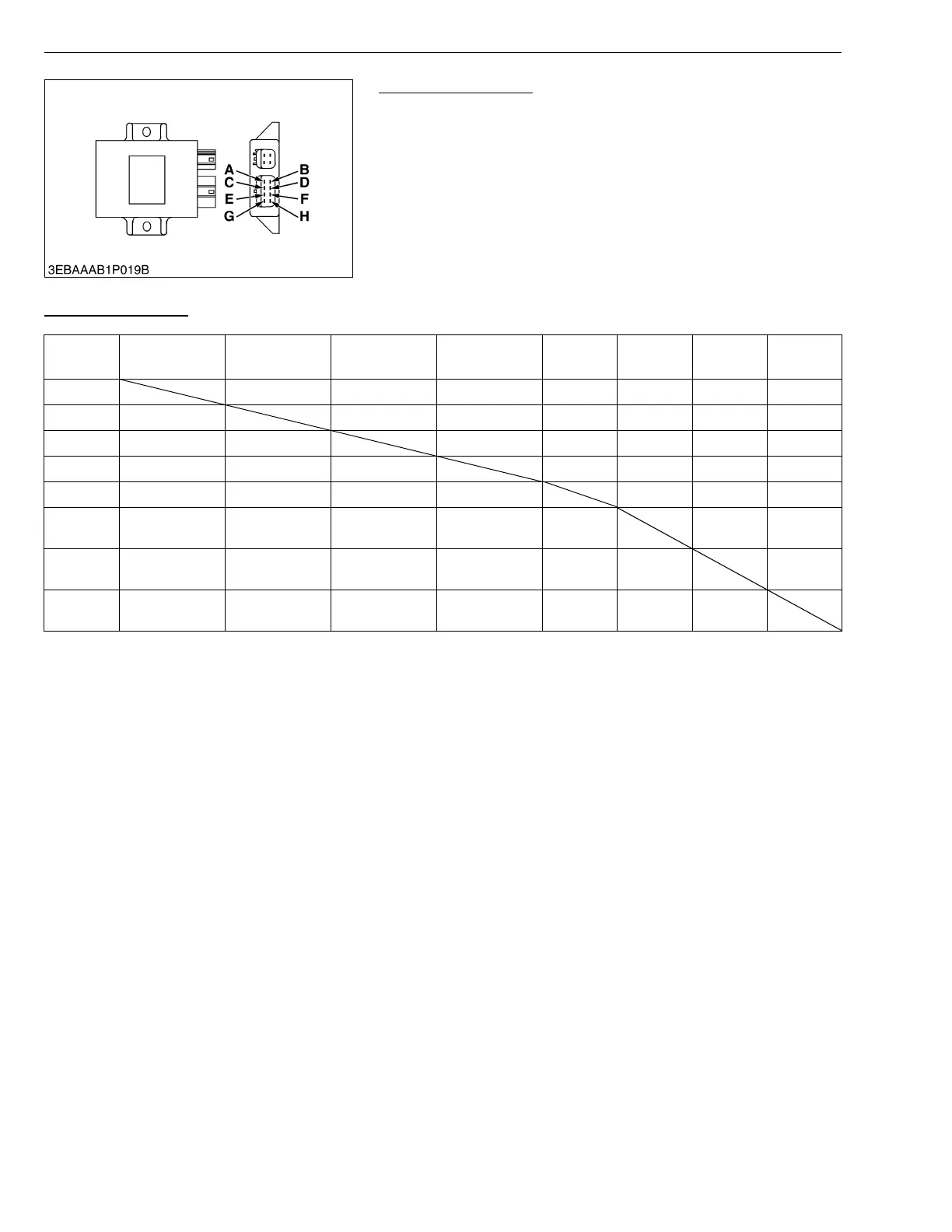

Resistance of Ignitor
1. Disconnect the connector.
2. Measure the resistance with an ohmmeter.
3. If the resistance is not with in the factory specifications, replace it.
W1109304
Ignitor Check Chart
NOTE
■
•This check sheet shows the results of the test conducted by using the "FLUKE MULTMETER 110 SERIES"
(degital meter).
•Use of other testers than those above may show different measured results.
Negative
Positive
ABCDEFGH
A10 to 40 kΩ 10 to 40 kΩ 11 to 47 kΩ infinity infinity infinity infinity
B10 to 40 kΩ 0.33 to 1.3 kΩ 1.8 to 7.3 kΩ infinity infinity infinity infinity
C10 to 40 kΩ 0.33 to 1.3 kΩ 1.5 to 6.0 kΩ infinity infinity infinity infinity
D11 to 47 kΩ 1.8 to 7.3 kΩ 1.5 to 6.0 kΩ infinity infinity infinity infinity
Einfinityinfinityinfinityinfinity infinity infinity infinity
F
2 megohm
(minimum)
2 megohm
(minimum)
2 megohm
(minimum)
2 megohm
(minimum)
infinity infinity infinity
G
2 megohm
(minimum)
2 megohm
(minimum)
2 megohm
(minimum)
2 megohm
(minimum)
infinity infinity infinity
H
2 megohm
(minimum)
2 megohm
(minimum)
2 megohm
(minimum)
2 megohm
(minimum)
infinity infinity infinity
