S-29
WG972-E2, DF972-E2, WSM
GASOLINE / LPG ENGINE

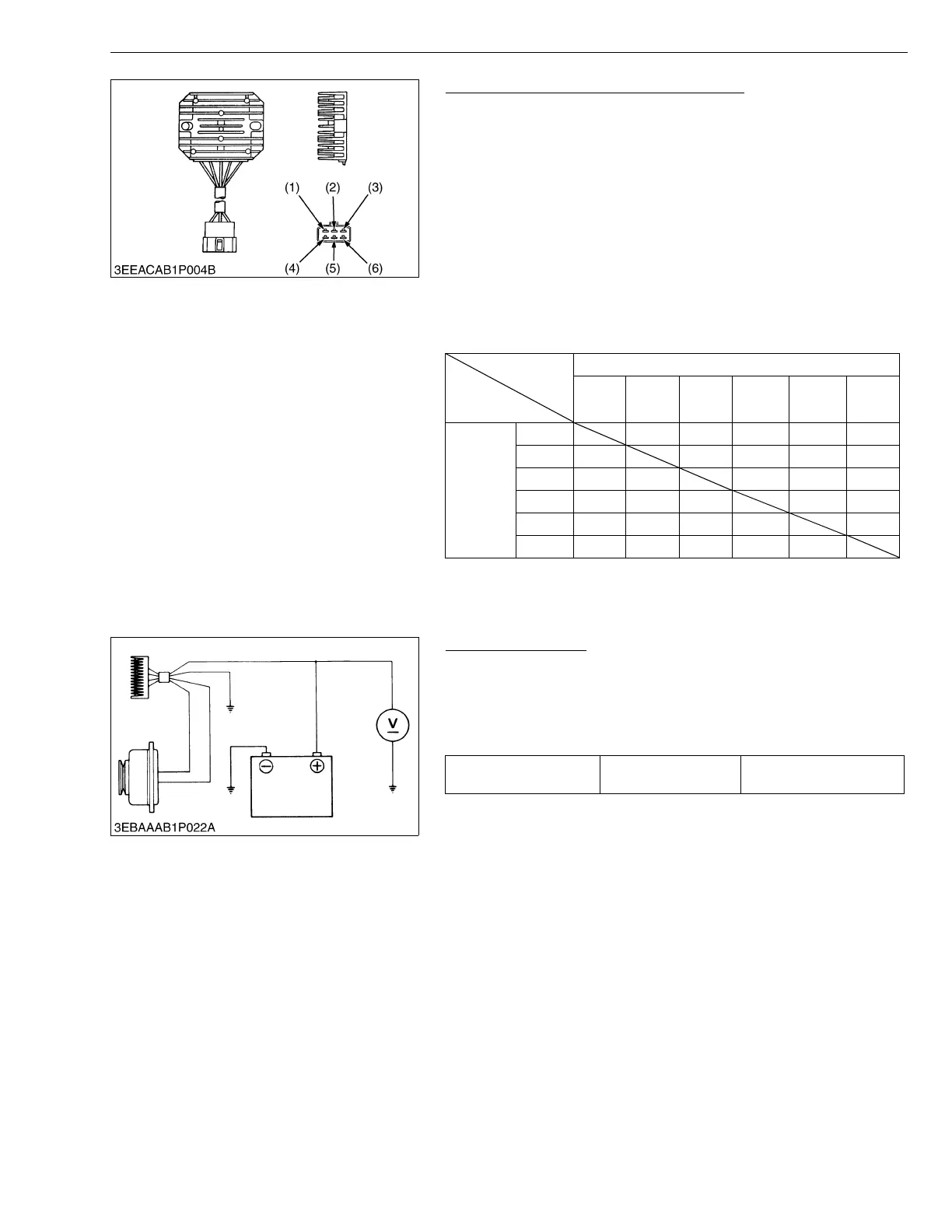

Continuity across Regulator’s Terminals
1. Measure with a circuit tester according to the list below.
■
•For this test, use only Analog Meter and do not use a high
voltage tester such as a MΩ meter.
•This check sheet shows the results of the test conducted by
using the “Sanwa-made tester SP-10 and SP-15D” (Analog
Meter).
•Use of other testers than those above may show different
measured results. Ω shall be used as the unit for the
measuring range.
•The judgement should be as below table.
“ON” if the indicator moves, otherwise “OFF”.
■ Check Table (★ : ON, ✩ : OFF)
W1021509
Regulating Voltage
1. Complete the charging circuit with a fully charged battery and
operate the dynamo at the specified speed.
2. Measure the output voltage with a volt meter.
3. If the measurement is not within the specified values, replace the
dynamo.
W1022299
Tester +
Terminal
Tes te r −
Ter m i nal
Code colors
Blue Black Blue Green Yellow Red
Code
colors
Blue ✩✩ ✩ ✩ ★
Black ✩✩✩✩✩
Blue ✩✩ ✩ ✩ ★
Green ✩✩✩ ✩ ✩
Yellow ★★★ ✩ ★
Red ✩✩✩ ✩ ✩
(1) Blue
(2) Black
(3) Blue
(4) Green
(5) Yellow
(6) Red
Regulating output
voltage
Factory spec.
14 to 15 V at
5200 min
-1
(rpm)
To Next Page
