18 THREE-POINT HITCH & DRAWBAR
THREE-POINT HITCH & DRAWBAR
3-POINT HITCH

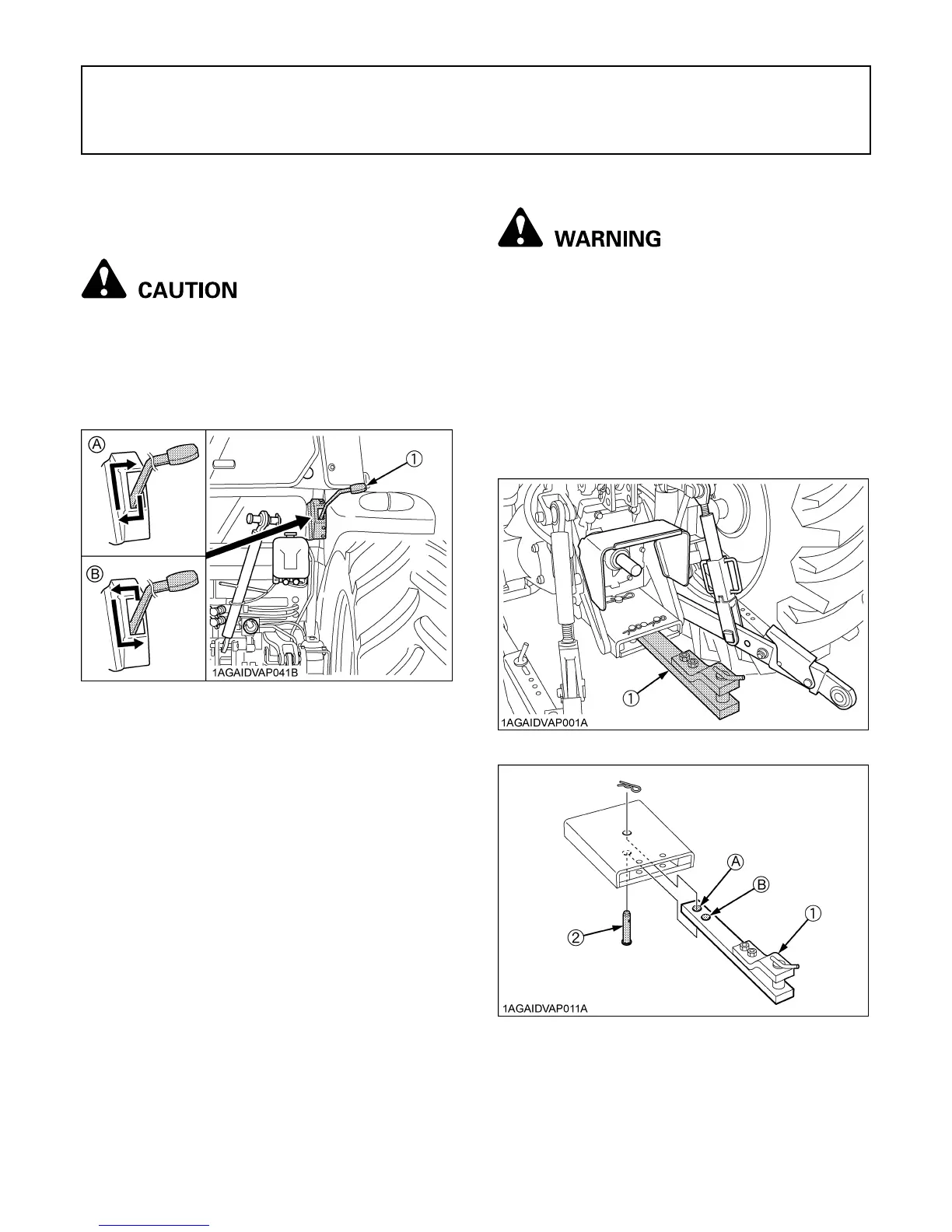

BRemote Hitch UP / DOWN Lever
[With Dual Speed model]
To avoid personal injury:
A Do not use the Remote hitch up / down lever
when the implement is attached on the 3-point
hitch.
This lever is used to raise and lower the 3-point hitch for
aligning the arm with the implement only.
DRAWBAR
To avoid personal injury:
A Never pull from the top link, the rear axle or any
point above the drawbar. Doing so could cause
the tractor to tip over rearward causing
personal injury or death.
BAdjusting Drawbar Length
When towing an implement, it is recommended that the
(A) hole in drawbar be utilized.
The drawbar load is specified in the "IMPLEMENT
LIMITATIONS" section.
(1) Remote hitch up / down lever (A) "UP"
(B) "DOWN"
(1) Drawbar
(2) Pivot pin
Holes: (A), (B)
