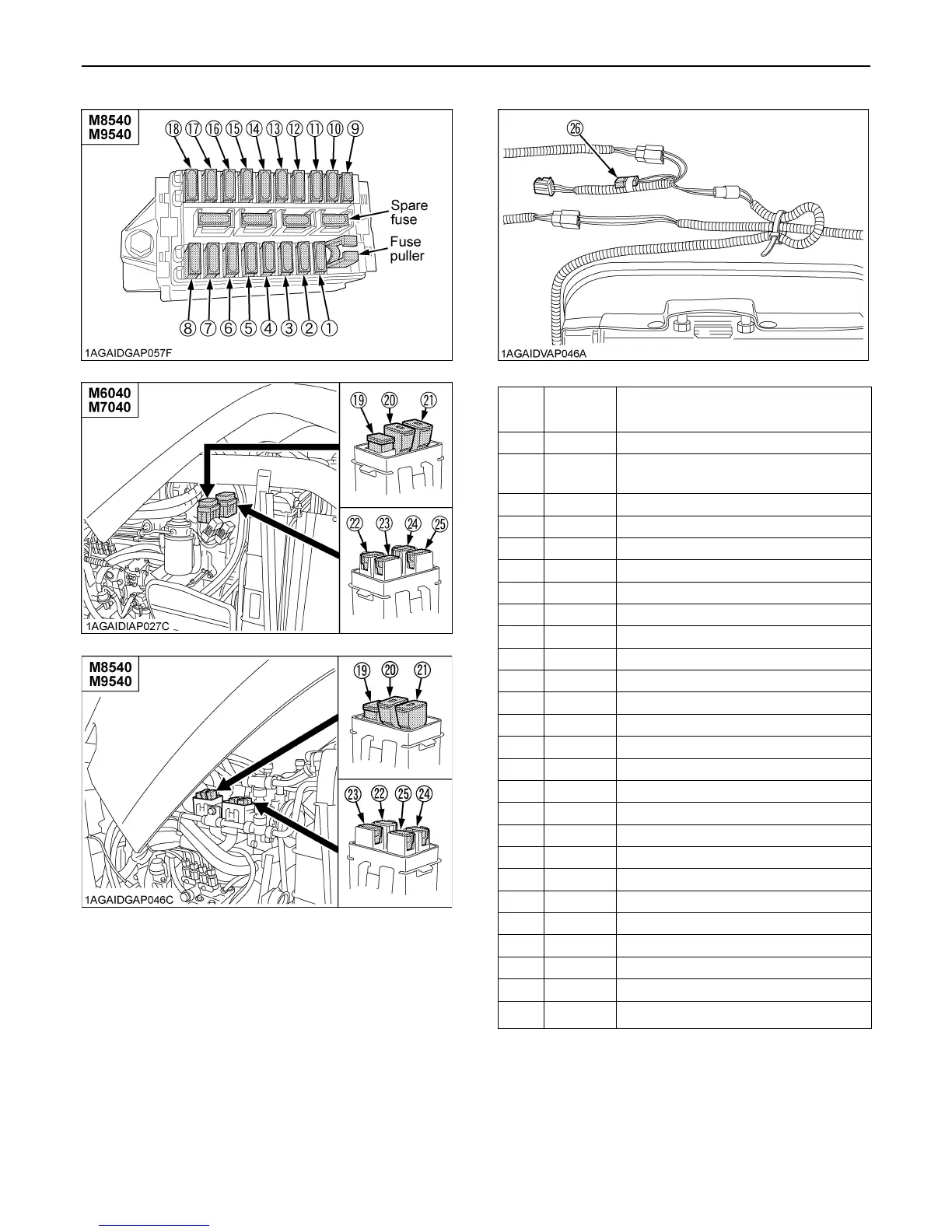

29PERIODIC SERVICE
Fuse
No.
Capacity
(A)
Protected circuit
(1) 5 Starter Relay
(2) 15
Auxiliary Power / Air Suspension Seat
(if equipped)
(3) 15 Work Light (Front, Side)
(4) 10 Air Conditioner (Compressor)
(5) 30 Air Conditioner (Fan Motor)
(6) 15 Cigarette Lighter
(7) 15 Work Light (Front)
(8) 15 Work Light (Rear)
(9) 20 Spare Fuse
(10) 20 Flasher (Hazard)
(11) 20 Head Light, Tail Lamp
(12) 10 Meter, Radio (Back Up), Horn
(13) 10 Turn Signal, Stop Lamp
(14) 5 Meter Panel, OPC
(15) 5 Alternator, Engine, Heater
(16) 15 Wiper
(17) 5 Air Conditioner (Control)
(18) 5 Radio
(19) 100 Charge
(20) 50 Air Heater
(21) 50 Head Light, Hazard
(22) 30 Work Light, Fuel Cut Solenoid
(23) 30 Key Switch
(24) 30 Electrical Outlet
(25) 40 Air Conditioner
(26) 15 Air Suspension Seat (if equipped)
