S-41
V3300-E2B, V3300-T-E2B, WSM
DIESEL ENGINE
Fuel Camshaft and Governor Weight (Continued)
(When reassembling)
• Fix the fuel camshaft with lock bolts as the key way of fuel
camshaft (10) is upward.
• Install the injection pump assembly to the injection pump
housing.
• Attach the O-ring and the cover and tighten the cover mounting
screws.
• Install the governor sleeve to the fuel camshaft.
• Check the movement of the governor sleeve.
• Be careful not to damage the O-ring.
• Be careful the direction of the governor sleeve.
• When reassembling the inside parts, put the oil on each
inside part slightly.
W1146489
Tightening torque
Fuel camshaft stopper
mounting screw
7.9 to 9.3 N·m
0.80 to 0.95 kgf·m
5.8 to 6.9 ft-lbs
Governor weight mounting
nut
62.8 to 72.6 N·m
6.4 to 7.4 kgf·m
46.3 to 53.5 ft-lbs

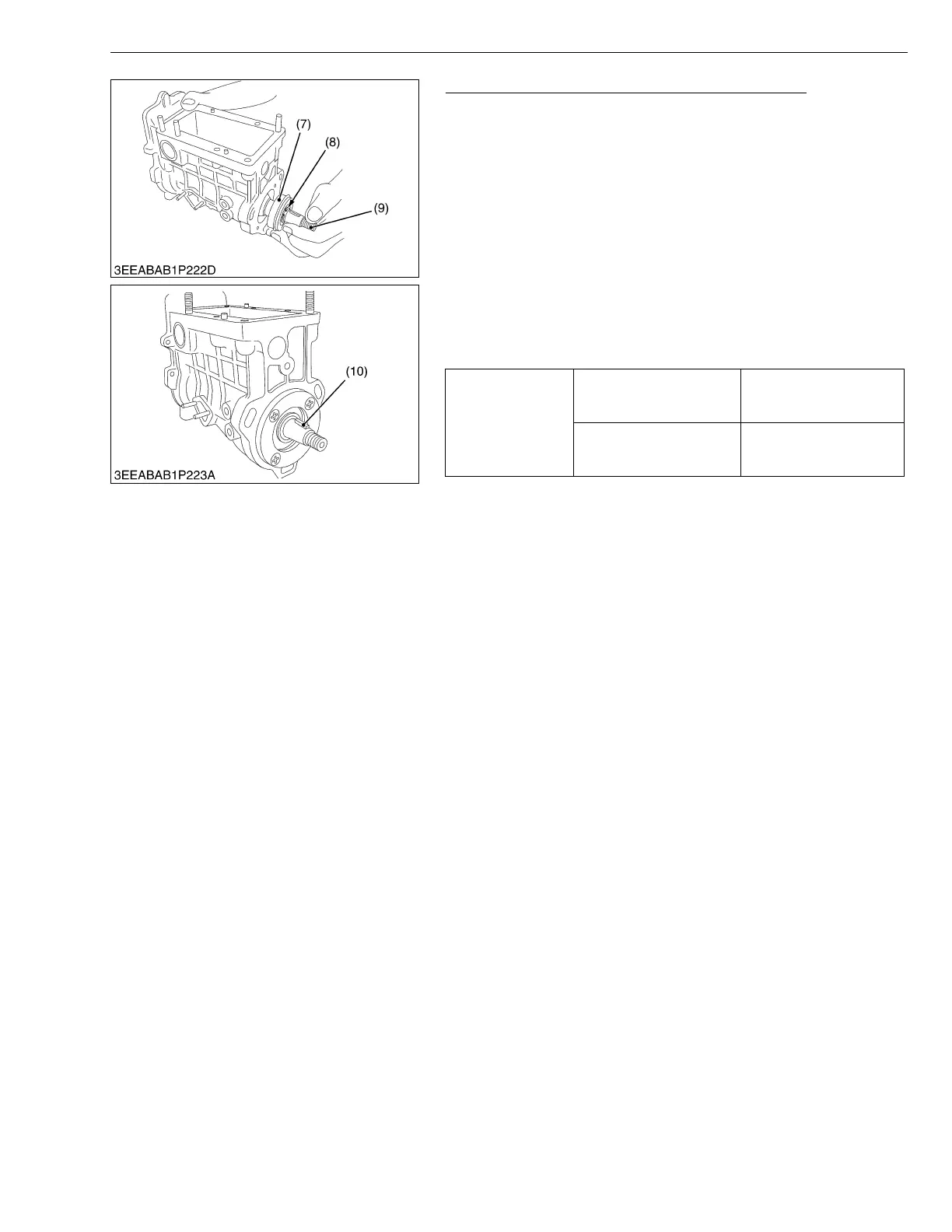

(1) Governor Sleeve
(2) Injection Pump Assembly
(3) Cover
(4) Open End Wrench (24 mm)
(5) Governor Weight
(6) Fuel Camshaft Stopper
(7) Bearing
(8) Cir-clip
(9) Fuel Camshaft
(10) Key Way of Fuel Camshaft
To Next Page
