S-45
V3300-E2B, V3300-T-E2B, WSM
DIESEL ENGINE

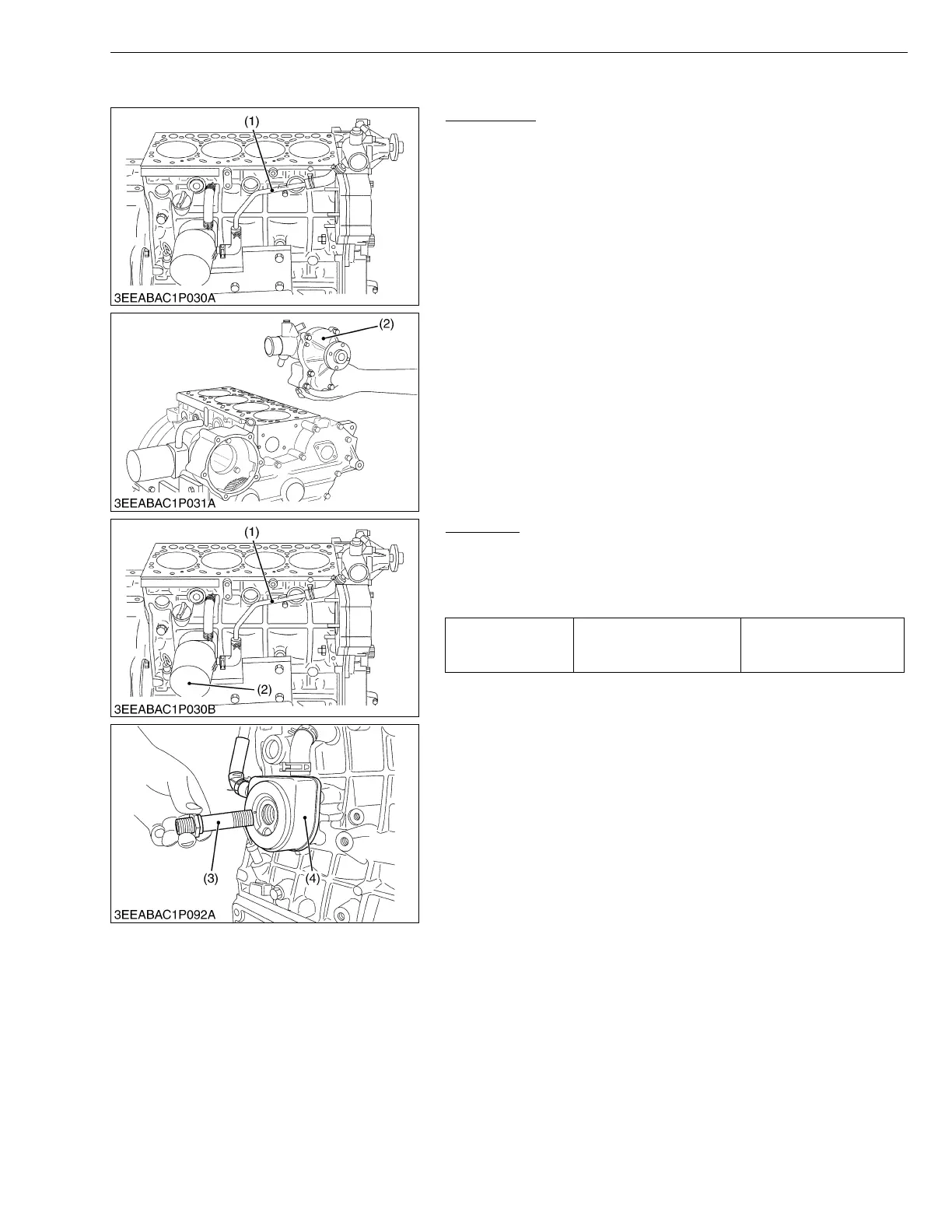

(7) Water Pump and Oil Cooler
Water Pump
1. Remove the pipe band and the water pipe (1).
2. Remove the water pump (2).
(When reassembling)
• When mounting the water pump, take care not to forget mounting
the O-ring and not to let it out of position.
W1187742
Oil Cooler
1. Remove the water pipe (1).
2. Remove the oil filter cartridge (2) and the oil cooler joint screw
(3).
3. Remove the oil cooler (4).
W1032266
(1) Water Pipe (2) Water Pump
Tightening torque Oil cooler joint screw
39.2 to 44.1 N·m
4.0 to 4.5 kgf·m
28.9 to 32.5 ft-lbs
(1) Water Pipe
(2) Oil Filter Cartridge
(3) Oil Cooler Joint Screw
(4) Oil Cooler
To Next Page
