S-34
V3300-E2B, V3300-T-E2B, WSM
DIESEL ENGINE

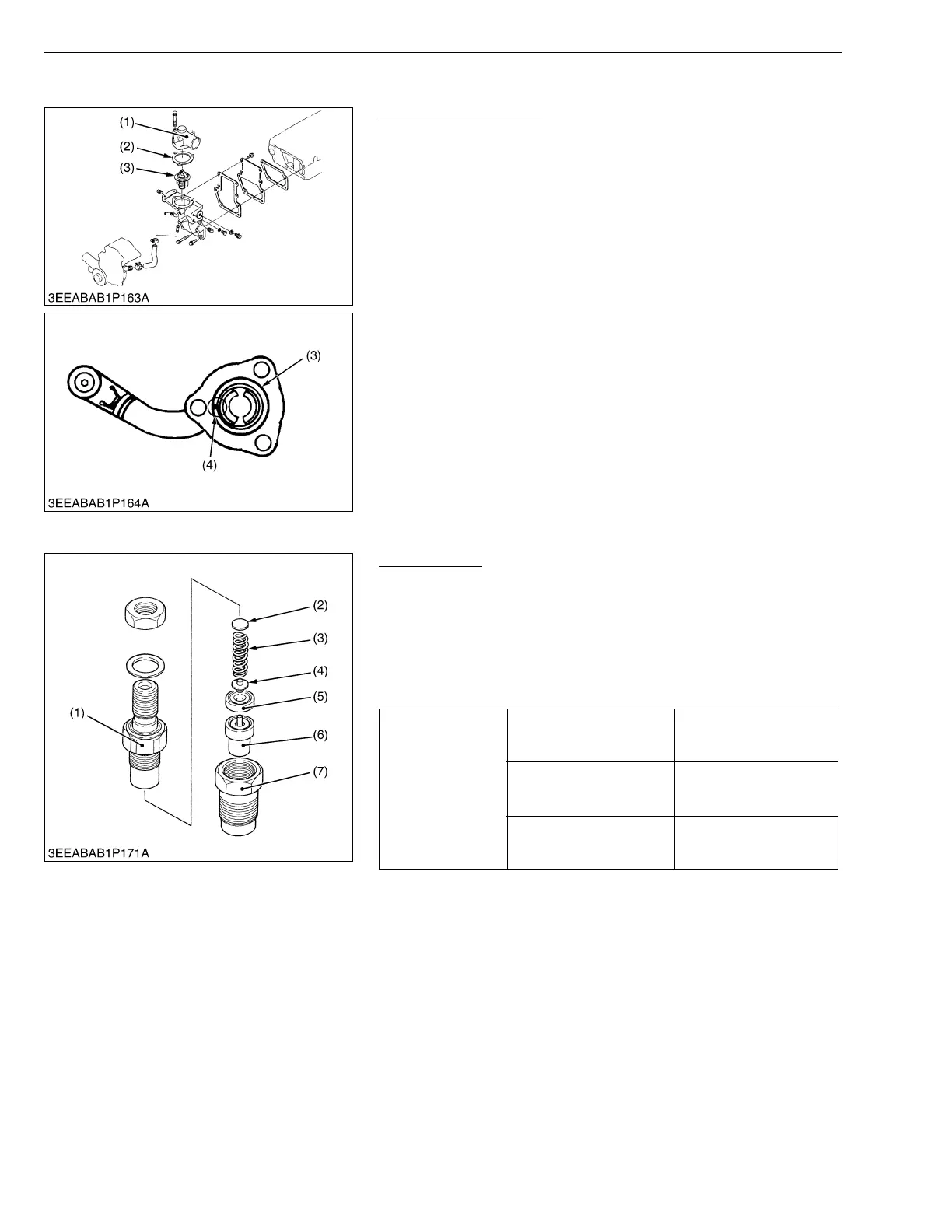

(4) Thermostat
Thermostat Assembly
1. Remove the thermostat cover mounting screws, and remove the
thermostat cover (1).
2. Remove the thermostat assembly (3).
(When reassembling)
• Apply a liquid gasket (Three Bond 1215 or equivalent) only at the
thermostat cover side of the gasket (2).
• Attach the thermostat with its hole facing toward the air suction
side.
W1072747
(5) Injection Nozzle
Nozzle Holder
1. Secure the nozzle retaining nut (7) with a vise.
2. Remove the nozzle holder (1), and take out parts inside.
(When reassembling)
• Assemble the nozzle in clean fuel oil.
• Install the push rod (4), noting its direction.
• After assembling the nozzle, be sure to adjust the fuel injection
pressure.
W1089102
(1) Thermostat Cover
(2) Thermostat Cover Gasket
(3) Thermostat Assembly
(4) Hole
Tightening torque
Nozzle holder
34.3 to 39.2 N·m
3.5 to 4.0 kgf·m
25.3 to 28.9 ft-lbs
Overflow pipe nut
19.6 to 24.5 N·m
2.0 to 2.5 kgf·m
14.5 to 18.1 ft-lbs
Nozzle holder assembly
49.0 to 68.6 N·m
5.0 to 7.0 kgf·m
36.2 to 50.6 ft-lbs
(1) Nozzle Holder
(2) Adjusting Washer
(3) Nozzle Spring
(4) Push Rod
(5) Distance Piece
(6) Nozzle Piece
(7) Nozzle Retaining Nut
