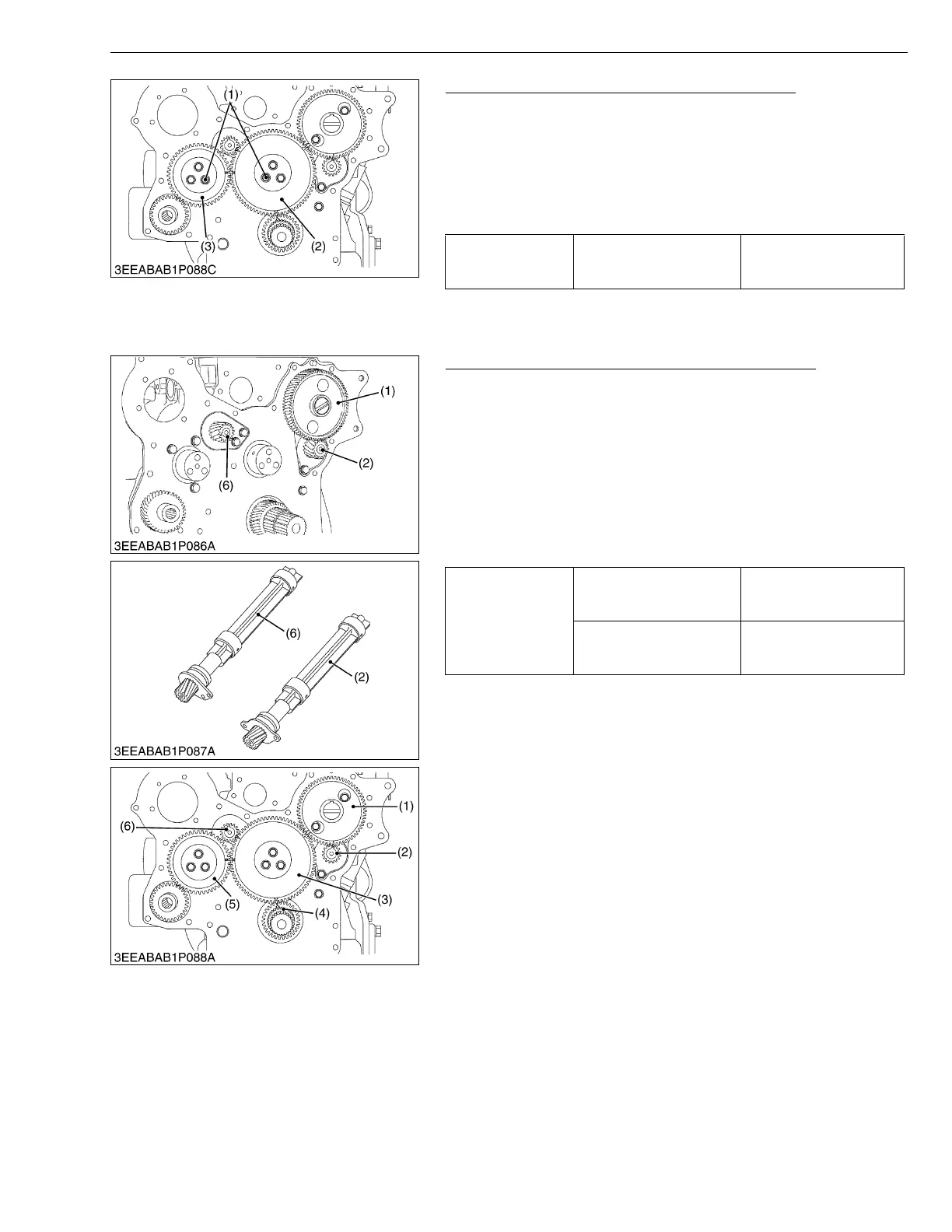

Idle Gear 1 and Idle Gear 2 (for Balancer Model)
1. Remove the idle gear mounting screw (1).
2. Draw out the idle gear (2) and (3).
(When reassembling)
• When install the idle gear (2) and (3), be sure to place the 4th
cylinder piston at the top dead center in compressio then, align
all mating marks on each gear to assemble the timing gears, set
the idle gear last.
W1032991
Camshaft and Balancer Shaft (for Balancer Model)
1. Remove the camshaft set screws and draw out the camshaft (1).
2. Remove the balancer shaft 1 set screws and draw out the
balancer shaft 1 (2).
3. Remove the balancer shaft 2 set screws and draw out the
balancer shaft 2 (6).
(When reassembling)
• When install the balancer shaft 1 and 2, be sure to place the 4th
cylinders piston at the top dead center in compression then, align
all mating marks on each gear to assemble the timing gears, set
the idle gear last.
W1191037
Tightening torque Idle gear mounting screw
23.5 to 27.5 N·m
2.4 to 2.8 kgf·m
17.4 to 20.3 ft-lbs
(1) Idle Gear Mounting Screw
(2) Idle Gear 1
(3) Idle Gear 2
Tightening torque
Camshaft set screw
23.5 to 27.5 N·m
2.4 to 2.8 kgf·m
17.4 to 20.3 ft-lbs
Balancer shaft set screw
23.5 to 27.5 N·m
2.4 to 2.8 kgf·m
17.4 to 20.3 ft-lbs
(1) Camshaft
(2) Balancer Shaft 1
(3) Idle Gear 1
(4) Crank Gear
(5) Idle Gear 2
(6) Balancer Shaft 2
