S-64
V3300-E2B, V3300-T-E2B, WSM
DIESEL ENGINE

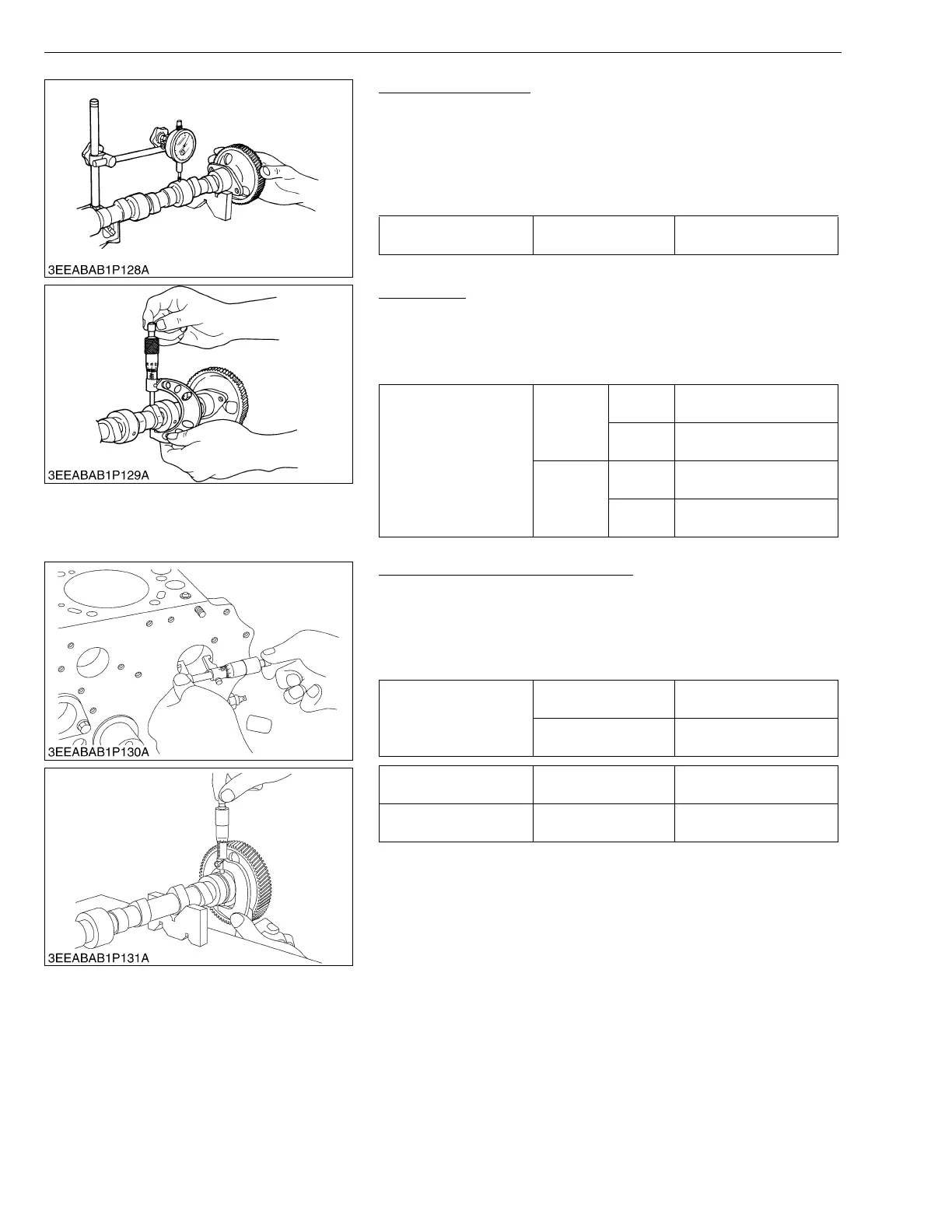

Camshaft Alignment
1. Support the camshaft with V block on the surface plate and set a
dial indicator with its tip on the intermediate journal at right angle.
2. Rotate the camshaft on the V blocks and get the misalignment
(half of the measurement).
3. If the misalignment exceeds the allowable limit, replace the
camshaft.
W1064422
Cam Height
1. Measure the height of the cam at its highest point with an outside
micrometer.
2. If the measurement is less than the allowable limit, replace the
camshaft.
W1064551
Oil Clearance of Camshaft Journal
1. Measure the camshaft journal O.D. with an outside micrometer.
2. Measure the cylinder block bore I.D. for camshaft with an inside
micrometer.
3. If the clearance exceeds the allowable limit, replace the
camshaft.
W1064798
Camshaft alignment Allowable limit
0.01 mm
0.00039 in.
Intake and exhaust cam
height
Factory
spec.
Intake
valve
37.63 mm
1.4815 in.
Exhaust
valve
38.96 mm
1.5338 in.
Allowable
limit
Intake
valve
37.13 mm
1.4618 in.
Exhaust
valve
38.46 mm
1.5141 in.
Oil clearance of
camshaft journal
Factory spec.
0.050 to 0.091 mm
0.0020 to 0.0036 in.
Allowable limit
0.15 mm
0.0059 in.
Camshaft journal O.D. Factory spec.
45.934 to 45.950 mm
1.8084 to 1.8091 in.
Camshaft bearing I.D. Factory spec.
46.000 to 46.025 mm
1.8110 to 1.8120 in.
