S-29
V3300-E2B, V3300-T-E2B, WSM
DIESEL ENGINE
CAUTION
• While the engine is running and or just after it stops, the turbocharger is hot, be careful not to touch the
turbocharger.
• When detaching and attaching the turbocharger assembly, be very careful not to allow dust, dirt and other
foreign matter in the oil pipes.
• When the turbocharger assembly has been replace, pour fresh engine oil through the oil filler port of the
turbocharger.
• Before starting the engine, make sure that air cleaner is in position.

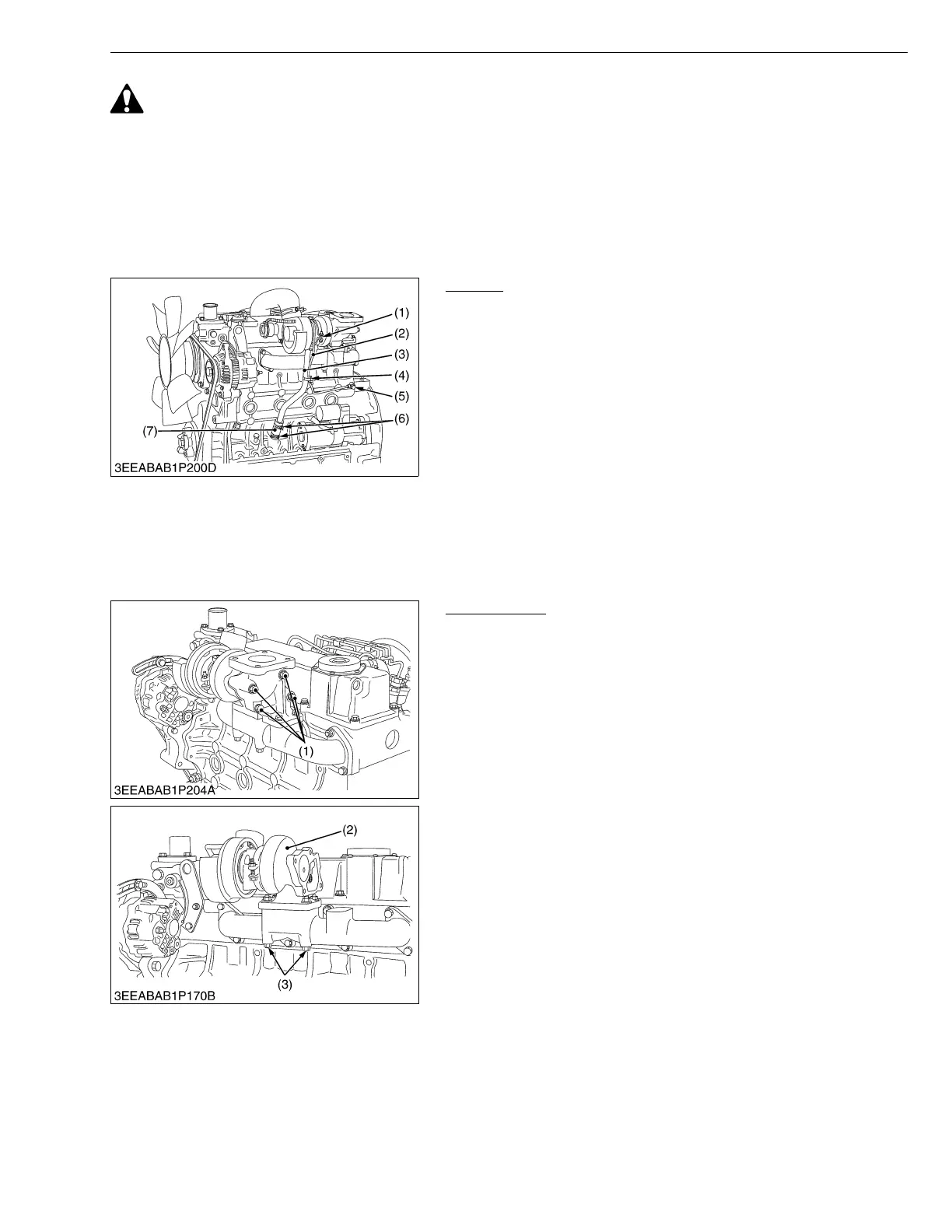

Oil Pipe
1. Remove the joint bolt (5) and clamp (4) and take off the pipe 1 (2).
2. Remove the bolts (1) and release the clamp (6).
3. Disconnect the oil pipe 2 (7) and pipe 4 (3).
(When reassembling)
• Pour fresh engine oil through the oil filler port of the turbocharger.
• Replace the gasket with new one.
• Be careful not to allow dust, dirt and other foreign matters in the
oil pipes.
• Tape or plug all openings to prevent foreign matters from
damaging the oil cavities in the turbocharger.
W1025983
Turbocharger
1. Remove the screw (1) and bolt (3).
2. Take off the turbocharger assembly (2).
(When reassembling)
• Replace the gasket with new one.
W1078106
(1) Bolt
(2) Oil Pipe 1
(3) Oil Pipe 4
(4) Clamp
(5) Joint Bolt
(6) Clamp
(7) Oil Pipe 2
(1) Screw
(2) Turbocharger Assembly
(3) Bolt
