S-53
05-E3B, 05-E3BG, WSM
DIESEL ENGINE

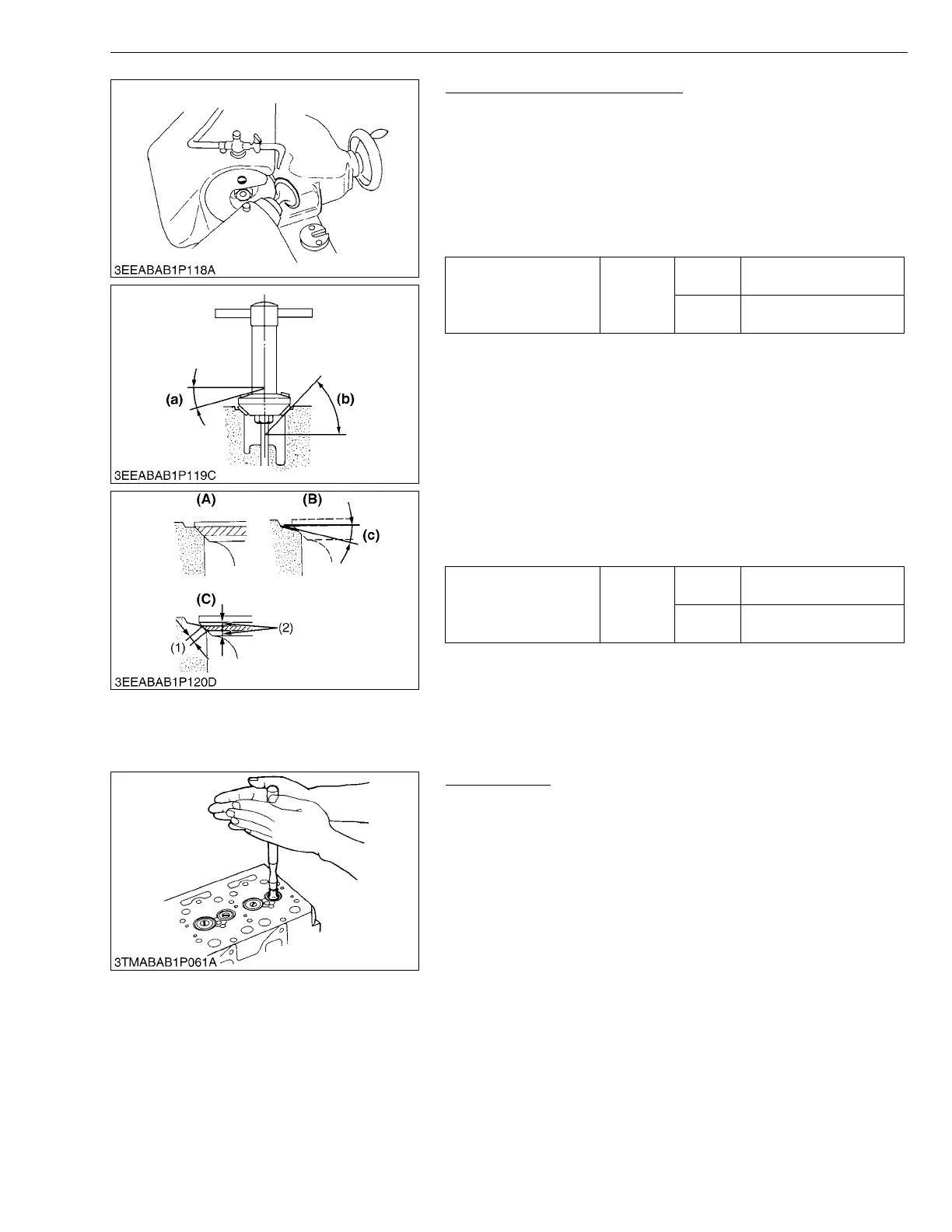

Correcting Valve and Valve Seat
• Before correcting the valve and seat, check the valve stem
and the I.D. of valve guide section, and repair them if
necessary.
• After correcting the valve seat, be sure to check the valve
recessing.
1) Correcting Valve
1. Correct the valve with a valve refacer.
2) Correcting Valve Seat
1. Slightly correct the seat surface with a 1.0 rad (60 °) (intake
valve) or 0.79 rad (45 °) (exhaust valve) valve seat cutter.
2. Resurface the seat surface with a 0.52 rad (30 °) valve seat cutter
to intake valve seat and with a 0.26 rad (15 °) valve seat cutter to
exhaust valve seat so that the width is close to specified valve
seat width (2.12 mm, 0.0835 in.).
3. After resurfacing the seat, inspect for even valve seating, apply a
thin film of compound between the valve face and valve seat, and
fit them with valve lapping tool.
4. Check the valve seating with prussian blue. The valve seating
surface should show good contact all the way around.
W10283500
Valve Lapping
1. Apply compound evenly to the valve lapping surface.
2. Insert the valve into the valve guide. Lap the valve onto its seat
with a valve flapper or screwdriver.
3. After lapping the valve, wash the compound away and apply oil,
then repeat valve lapping with oil.
4. Apply prussian blue to the contact surface to check the seated
rate. If it is less than 70 %, repeat valve lapping again.
• When valve lapping is performed, be sure to check the valve
recessing and adjust the valve clearance after assembling
the valve.
W10288140
Valve face angle
Factory
spec.
IN.
1.0 rad
60 °
EX.
0.79 rad
45 °
Valve seat angle
Factory
spec.
IN.
1.0 rad
60 °
EX.
0.79 rad
45 °
(1) Valve Seat Width
(2) Identical Dimensions
(A) Check Contact
(B) Correct Seat Width
(C) Check Contact
(a) 0.26 rad (15 °) or 0.52 rad (30 °)
(b) 0.79 rad (45 °) or 1.0 rad (60 °)
(c) 0.52 rad (30 °) or 0.26 rad (15 °)
To Next Page
