05-E3B, 05-E3BG, WSM

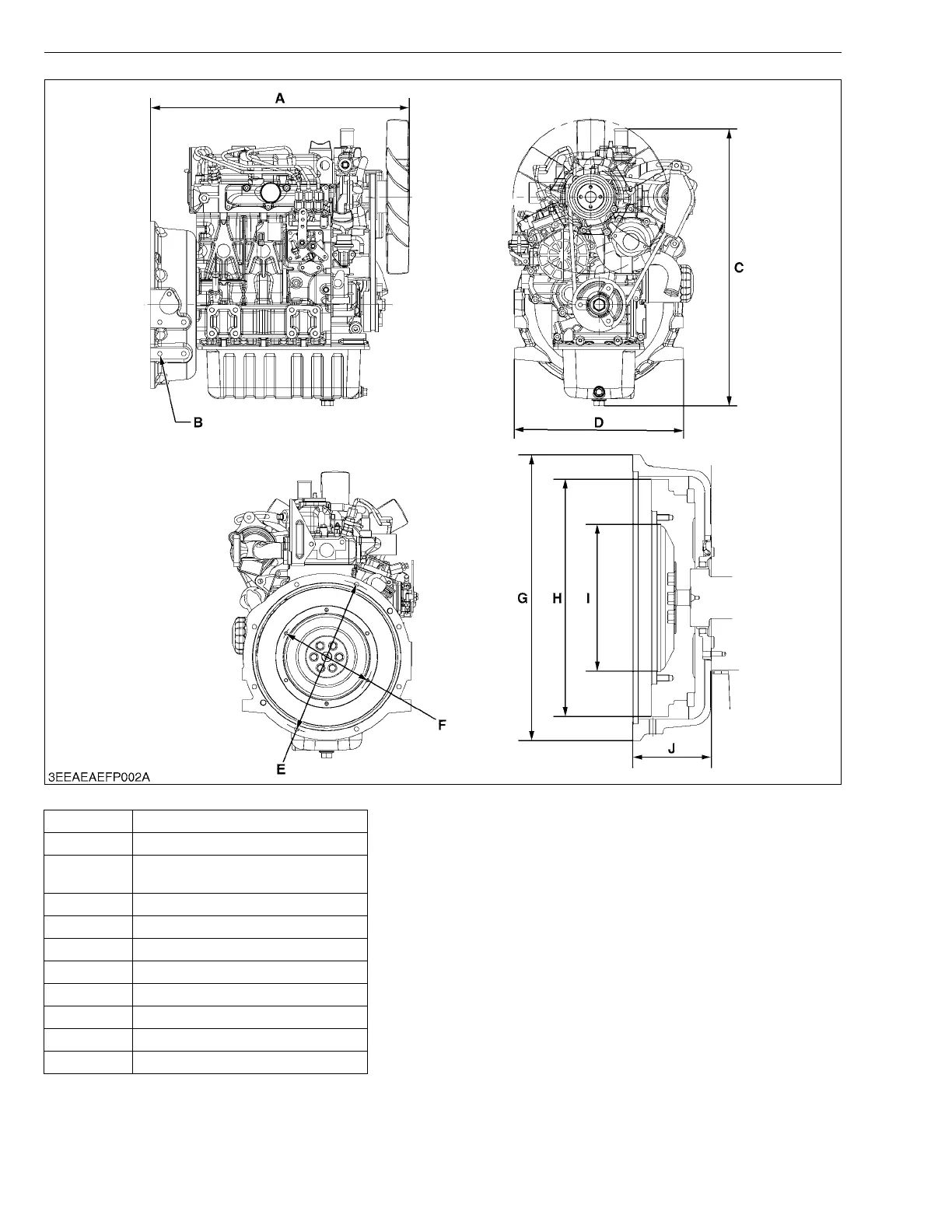

DIMENSIONS
Unit : mm (in.)
W1047193
D1305-E3BG
A 551.3 (21.70)
B
4-3/8-16 UNC-2B
Depth 16 (0.63)
C 590.1 (23.23)
D 360 (14.2)
E 333.38 dia. (13.125 dia.)
F 200.02 dia. (7.8748 dia.)
G 356 dia. (14.0 dia.)
H 296 dia. (11.7 dia.)
I 184.2 dia. (7.252 dia.)
J 98 (3.9)
KiSC issued 12, 2007 A
