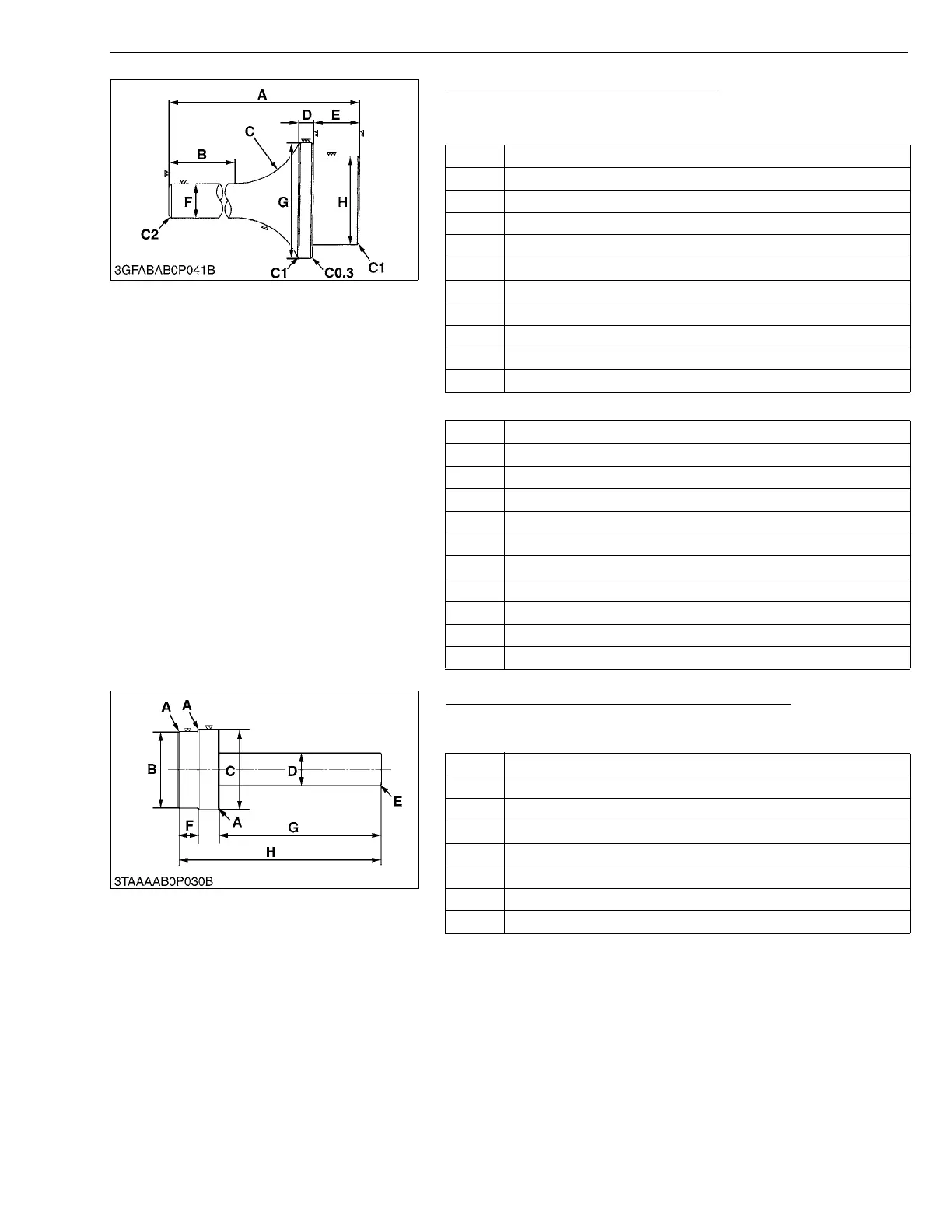

Crankshaft Bearing 1 Replacing Tool
Application: Use to press out and press in the crankshaft bearing 1.
[Press Out]
[Press In]
W10261390
Governor Gear Holder Bushing Replacing Tool
Application: Use to press out and to press in the governor gear
holder bushing.
W1023337
A 135 mm (5.31 in.)
B 72 mm (2.8 in.)
C 40 mm radius (1.6 in. radius)
D 10 mm (0.39 in.)
E 24 mm (0.94 in.)
F 20 mm dia. (0.79 in. dia.)
G 51.20 to 51.40 mm dia. (2.016 to 2.023 in. dia.)
H 47.30 to 47.50 mm dia. (1.863 to 1.870 in. dia.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
C0.3 Chamfer 0.30 mm (0.012 in.)
A 135 mm (5.31 in.)
B 72 mm (2.8 in.)
C 40 mm radius (1.6 in. radius)
D 10 mm (0.39 in.)
E 24 mm (0.94 in.)
F 20 mm dia. (0.79 in. dia.)
G 68 mm dia. (2.7 in. dia.)
H 47.30 to 47.50 mm dia. (1.863 to 1.870 in. dia.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
C0.3 Chamfer 0.30 mm (0.012 in.)
A C1 : Chamfer 1.0 mm (0.039 in.)
B 73.90 to 74.00 mm dia. (2.910 to 2.913 in. dia.)
C 69.80 to 69.90 mm dia. (2.748 to 2.751 in. dia.)
D 30 mm dia. (1.2 in. dia.)
E C2 : Chamfer 2.0 mm (0.079 in.)
F 18 mm (0.71 in.)
G 150 mm (5.91 in.)
H 188 mm (7.40 in.)
