S-28
05-E3B, 05-E3BG, WSM
DIESEL ENGINE
Glow Plug Continuity
1. Remove the glow plug.
2. Measure the resistance with a circuit tester between the glow
plug terminal and the glow plug housing.
3. If the factory specification is not indicated, glow plug is faulty.
0000010726E
Engine Stop Solenoid
1. Remove the engine stop solenoid from the engine.

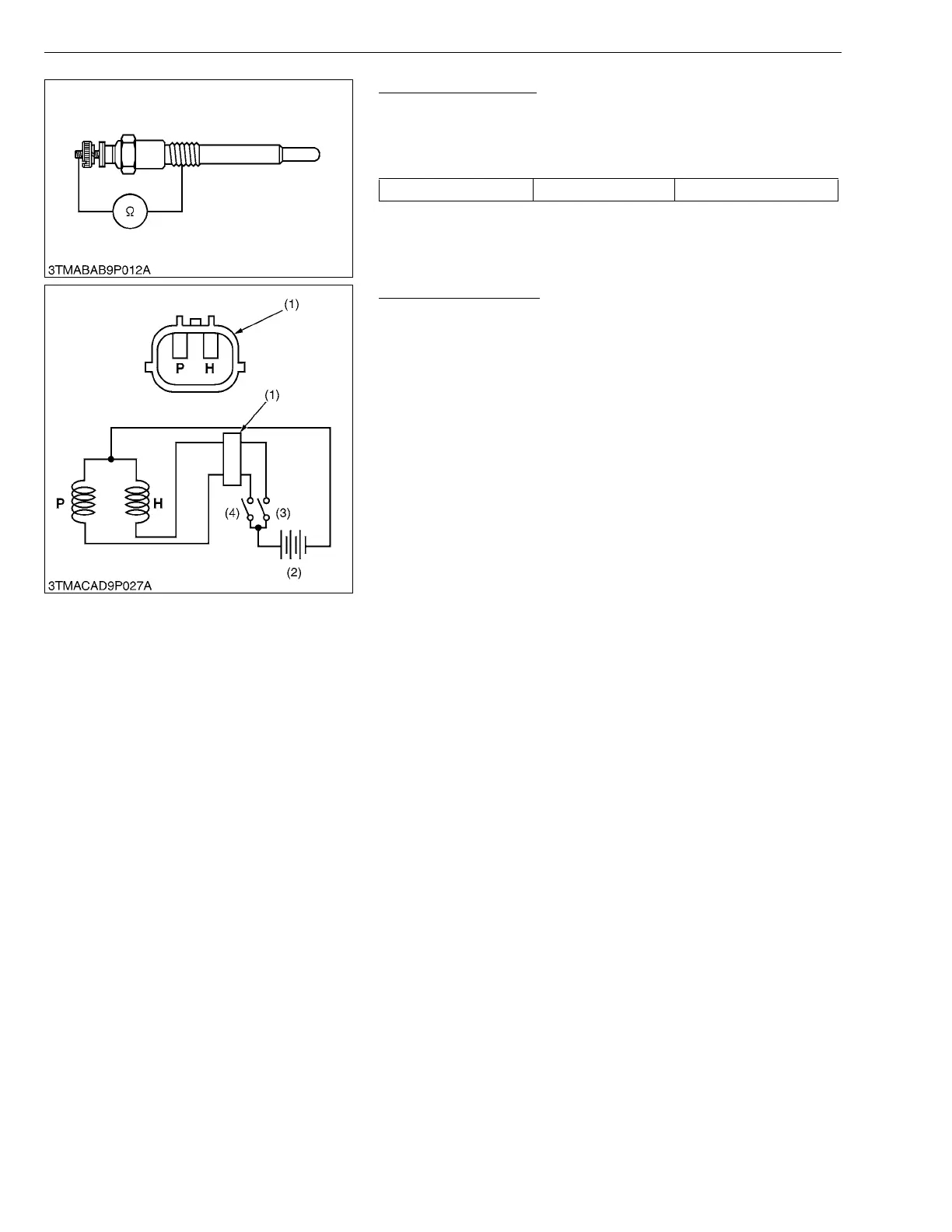

2. Connect the jumper leads from the pulling coil P terminal to the
switch (4), and from switch (4) to the battery positive terminal.
3. Connect the jumper leads from the holding coil H terminal to the
switch (3), and from switch (3) to the battery positive terminal.
4. Connect the jumper leads from the engine stop solenoid body to
the battery negative terminal.
5. When switch (4) is turn on, the plunger pull into the solenoid body
and then turn off the switch (4), the plunger comes out.
6. Turn on the switch (3) then turn on the switch (4), the plunger pull
into the solenoid body and it keep in holding position after turn off
the switch (4).
7. If the plunger is not attracted, the engine stop solenoid is faulty.
• Never apply the current for pulling coil more than two
seconds when inspecting.
W1020600
Resistance Factory spec. Approx. 0.9 Ω
(1) Connector
(2) Battery
(3) Switch for Holding Coil
(4) Switch for Pulling Coil
P : Terminal for Pulling Coil
H : Terminal for Holding Coil
