Kubota WSM 05-E3B Series - Disassembly: Rocker Arm and Push Rods

S-33
05-E3B, 05-E3BG, WSM
DIESEL ENGINE

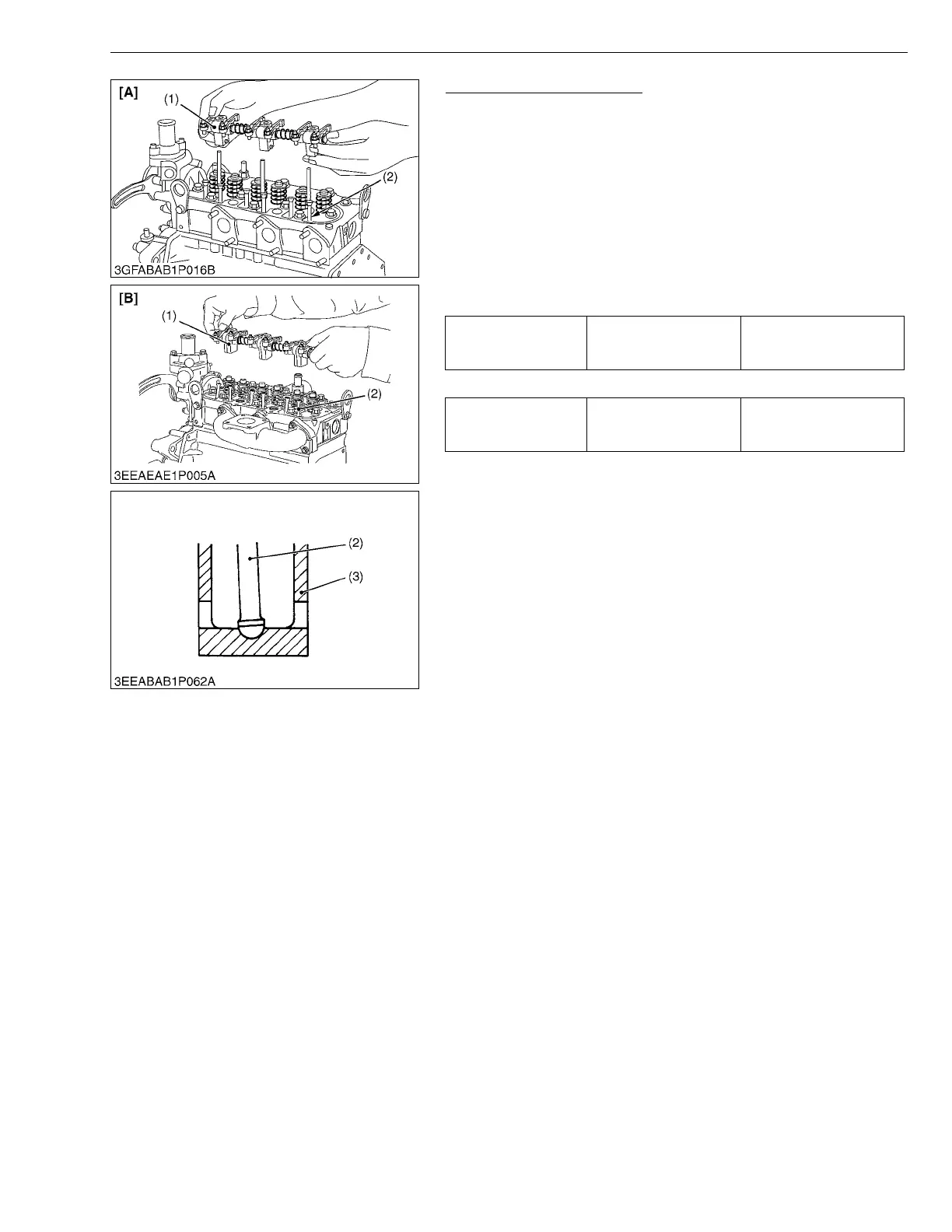

Rocker Arm and Push Rod
1. Remove the rocker arm bracket screws / nuts.
2. Detach the rocker arm assembly (1).
3. Remove the push rods (2).
(When reassembling)
• When putting the push rods (2) onto the tappets (3), check to see
if their ends are properly engaged with the dimples.
IMPORTANT■
• After installing the rocker arm, be sure to adjust the valve
clearance.
[D1005-E3B / E3BG, D1105-E3B / E3BG, D1105-T-E3B,
V1505-E3B / E3BG, V1505-T-E3B]
[D1305-E3B / E3BG]
W1021437
Tightening torque Rocker arm bracket nut
22 to 26 N·m
2.2 to 2.7 kgf·m
16 to 19 lbf·ft
Tightening torque
Rocker arm bracket
screw
22 to 26 N·m
2.2 to 2.7 kgf·m
16 to 19 lbf·ft
(1) Rocker Arm Assembly
(2) Push Rod
(3) Tappet
[A] D1005-E3B / E3BG,
D1105-E3B / E3BG, D1105-T-E3B,
V1505-E3B / E3BG, V1505-T-E3B
[B] D1305-E3B / E3BG
KiSC issued 12, 2007 A
