Mower conditioner
24
FC243
Putting into service

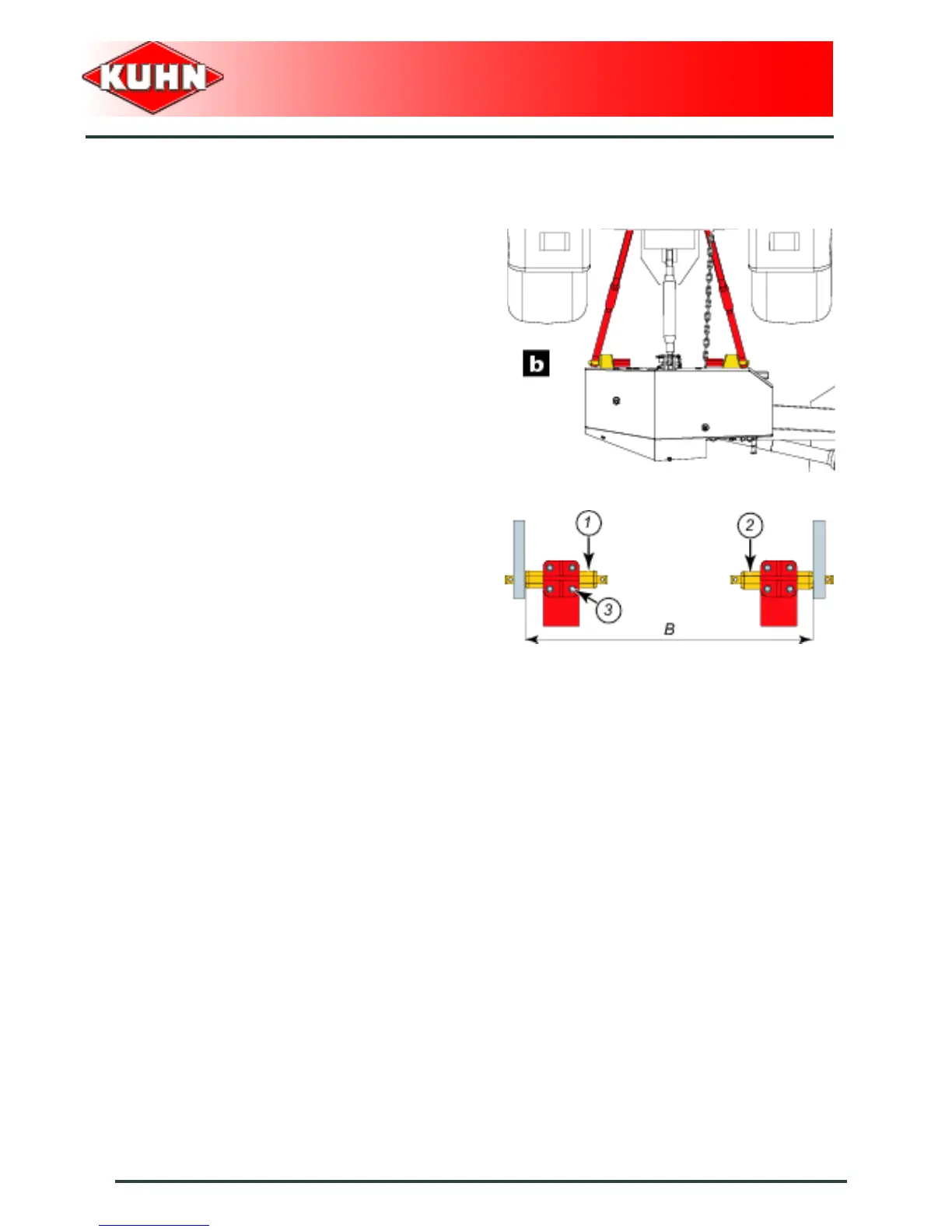

If measure A is comprised between 2.10 m and
2.30 m (6’11’’ - 7’7’’):
- Place lower links in position (b).
- Adjust machine lower hitch pin position:
• Unscrew the 8 bolts (3).
• Centre hitch pin (1) with regards to the mounting
plate.
• Tighten 4 hitch pin screws (1). Torque:
21 daN m (155 lbf ft).
• Position hitch pin (2) at measure B = 825 mm (2’8’’).
• Tighten 4 hitch pin screws (2). Torque:
21 daN m (155 lbf ft).
