KUHN FC243 - Connections (Hydraulic, Electrical, PTO)

Putting into service
Mower conditioner
FC243
25

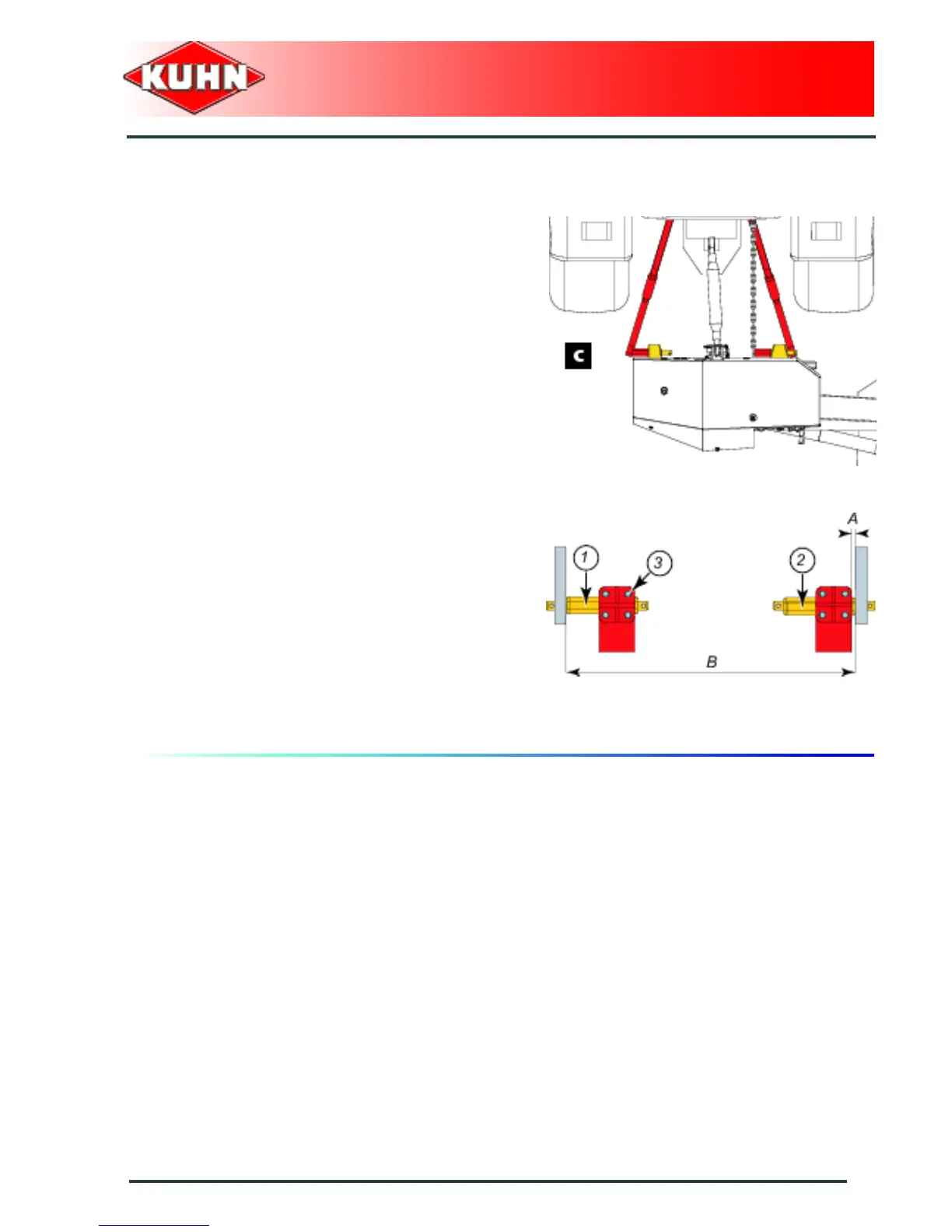

If measure A exceeds 2.30 m (7’7’’):
- Place lower links in position (c).
- Adjust machine lower hitch pin position:
• Unscrew the 8 bolts (3).
• Position hitch pin (2) at measure A = 10 mm (0.4’’).
• Tighten 4 hitch pin screws (2). Torque:
21 daN m (155 lbf ft).
• Position hitch pin (1) at measure B = 825 mm (2’8’’).
• Tighten 4 hitch pin screws (1). Torque:
21 daN m (155 lbf ft).
